High Voltage Silicone Rubber Overhead Line Covers for Bare Conductor

Suzhou Volsun Electronics Technology Co., Ltd.
  • Certification：Rohstion
  • Color：Red
  • IP Rating：Na
  • Usage：Electric Wire, Electrical Winding Insulation
  • Material：Rubber
  • Type：Silicon Rubber Protection Cover

Base Info

  • Model NO.：RUBNS-OLC
  • Electrical Strength：20 Kv,mm
  • Tensile Strength：4 MPa
  • Elongation at Break：200%
  • Shore Hardness：70±5 a
  • Volume Resistivity：>1014
  • Dielectric Constant：2-3
  • Transport Package：Standard Export Package
  • Specification：Rohs
  • Trademark：Volsun
  • Origin：Jiangsu
  • HS Code：85479090
  • Production Capacity：50000 M,Month

Description

Voltage(KV)≤10KV≤35KV≤110KV≤220KVThickness2.0±0.3mm2.6±0.4mm4.0±0.5mm6.0±1.0mm

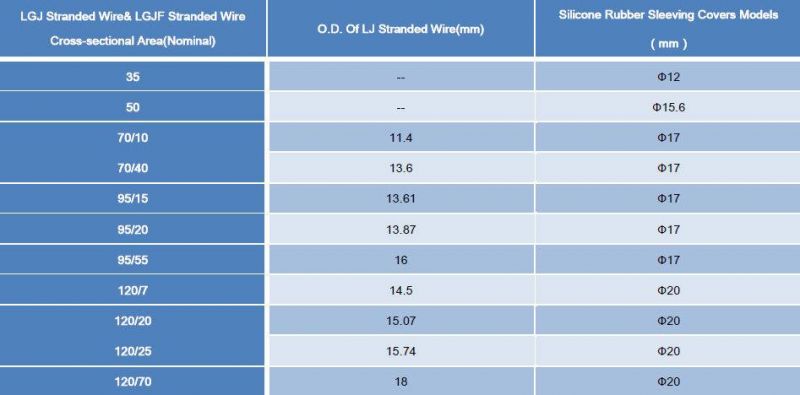

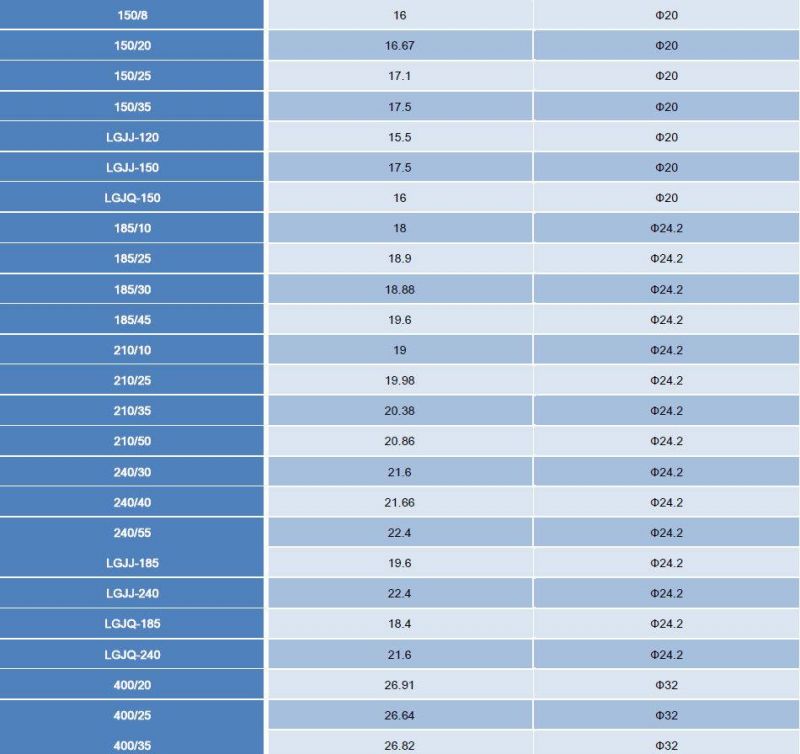

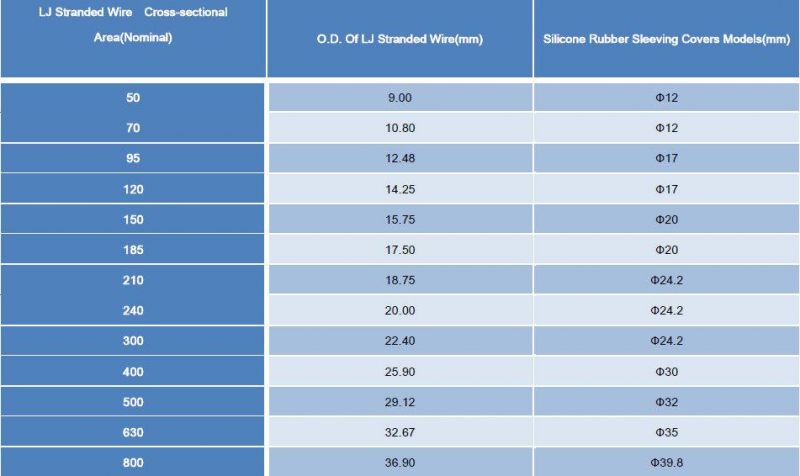

Dimension:

High Voltage Silicone Rubber Overhead Line Covers for Bare Conductor
High Voltage Silicone Rubber Overhead Line Covers for Bare Conductor
High Voltage Silicone Rubber Overhead Line Covers for Bare Conductor
