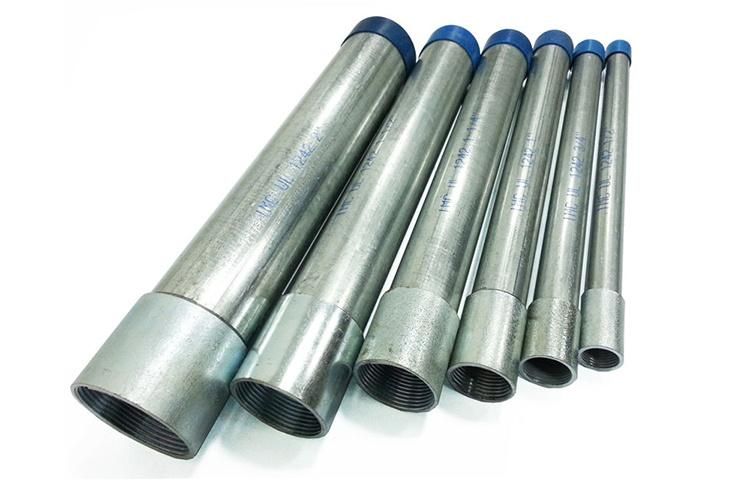

with UL Certificate IMC Conduit Galvanized Threaded Steel Pipe
LONWOW INDUSTRY CO., LTD.- Color：Silver Gray
- IP Rating：No
- Surface Treatment：Galvanised
- Application：Optional
- Material：Carbon Steel

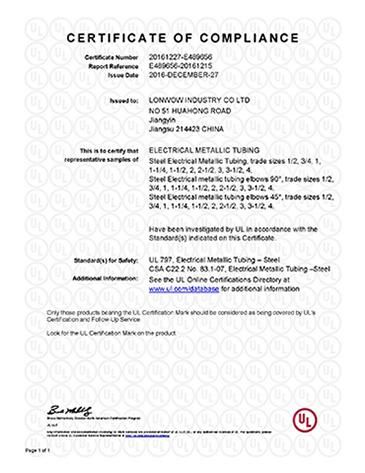

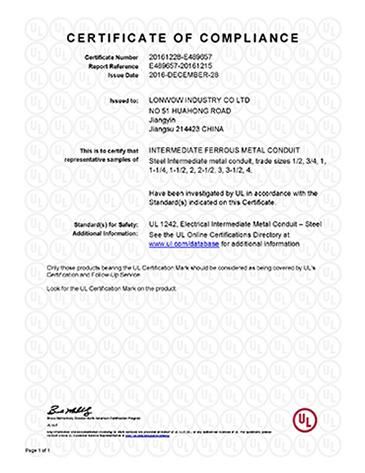

- Certification：UL
Base Info
- Model NO.：UL 1242, ANSI C80.6
- Usage：Wire and Cable Protection
- Type：Round Conduit for Protect Cable or Wire
- Customized：Customized
- Secondary or Not：Non-Secondary
- Technique：Cold Rolled
- Grade：Q195,Q235
- Outer Diameter：20.7mm-113.4mm
- Length：3.05m
- Section Shape：Round
- Transport Package：Carton, Wooden Box
- Specification：1,2"-4" inch
- Trademark：Lonwow
- Origin：China
- HS Code：73063090
- Production Capacity：3000 Ton,Tons Per Month
Description
| IMC(Intermediate Metal Conduit) Dimensiions and Weights | ||||||||
| Nominal Diamension | Outside Diameter | Wall Thickness | Length | Weight | ||||
| Size | Size | |||||||
| Inch | mm | Inch | mm | Inch | mm | FT | mm | KG/Per 3.05m |
| 1/2" | 16 | 0.815 | 20.70 | 0.070 | 1.79 | 10 | 3050 | 2.77 |
| 3/4" | 21 | 1.028 | 26.10 | 0.075 | 1.90 | 10 | 3050 | 3.79 |
| 1" | 27 | 1.291 | 32.80 | 0.085 | 2.16 | 10 | 3050 | 5.37 |
| 1-1/4" | 35 | 1.638 | 41.60 | 0.085 | 2.16 | 10 | 3050 | 7.10 |
| 1-1/2" | 41 | 1.882 | 47.80 | 0.090 | 2.29 | 10 | 3050 | 8.65 |
| 2" | 53 | 2.358 | 59.90 | 0.095 | 2.41 | 10 | 3050 | 11.50 |
| 2-1/2" | 63 | 2.858 | 72.60 | 0.140 | 3.56 | 10 | 3050 | 19.65 |
| 3" | 78 | 3.476 | 88.30 | 0.140 | 3.56 | 10 | 3050 | 24.20 |
| 3-1/2" | 91 | 3.971 | 100.86 | 0.140 | 3.56 | 10 | 3050 | 27.75 |
| 4" | 103 | 4.465 | 113.40 | 0.140 | 3.56 | 10 | 3050 | 31.41 |
