• Model NO.：S6
• Flammability：Self-Extinguish in 60s
• Termal Endurance：150 °c
• Transport Package：Neutral Packaging
• Trademark：UPM
• Origin：Dalian China
• HS Code：39173200

Overview Product Description

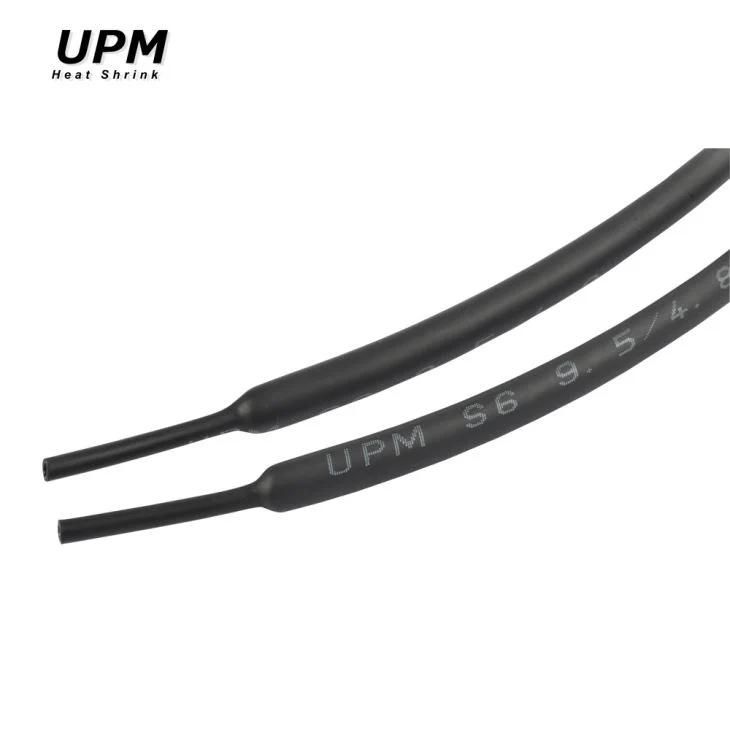

S6 Diesel  Oil Resistant Elastomeric Heat Shrinkable Tubing

FeaturesCross-linked specially formulated elastomeric compounds.Operating temperature: -75~150 ºCFlexible, flame-retardantShrink temperature:150 ºC Excellent resistance to oil, diesel and hydraulic fluids.Shrink Ratio:2:1 RoHS and REACH compliant StandardsSAE AMS-DTL-23053/16DimensionsReferenceAs supplied(mm)After recovered(mm)Standard lengthUPM S6ID min.ID max.WT  nom.m/spool2.4 2.4 1.2 0.51±0.08200 3.2 3.2 1.6 0.76±0.15100 4.8 4.8 2.4 0.84±0.15100 6.4 6.4 3.2 0.89±0.15100 9.5 9.5 4.8 1.02±0.2050 12.7 12.7 6.4 1.22±0.2050 19.1 19.1 9.5 1.45±0.2830 25.4 25.4 12.7 1.78±0.2830 38.1 38.1 19.1 2.41±0.4130 50.8 50.8 25.4 2.79±0.4125 ID=Internal Diameter      WT=wall thicknessTechnical DataPropertyTest methodValuesPhysicalLongitudinal shrinkageASTM D 2671≤5% Tensile strengthASTM D 2671 ≥13 MPa Breakdown elongationASTM D 2671 ≥400%Aging(150ºC/168hrs)  Tensile strengthASTM D 2671 ≥12 MPaBreakdown elongationASTM D 2671 ≥300% Heat shock(215ºC/4hrs)ASTM D 2671No  cracking Low temperature flexibility(-75ºC/4hrs)ASTM D 2671No crackingElectricalDielectric voltage Withstand ASTM D 26712500V,60s No breakdown Volume resistivityASTM D 2671≥1010 Ω.cm Dielectric strength ASTM D2671≥16 KV/mmChemical FlammabilityASTM D2671Self-extinguish in 60s Copper corrosionASTM D2671No corrosionFluids resistance (23ºC/24hrs) Tensile strengthASTM D2671 ≥12 MPa Breakdown elongationASTM D2671 ≥300% Dielectric strength ASTM D2671≥12 KV/mmTypical application      Suitable for resistance to aviation and diesel fuels, hydraulic fluids and lubricating oils, and chemical solvents.      Ideal for the protection of cables, wiring harnesses and connectors in military vehicles and motorsportOrdering       Standard color : Black      Standard packaging on spools       Please specify specification,quantity when orderingCross referenceRaychem/Tyco : DR25 Detailed Photos

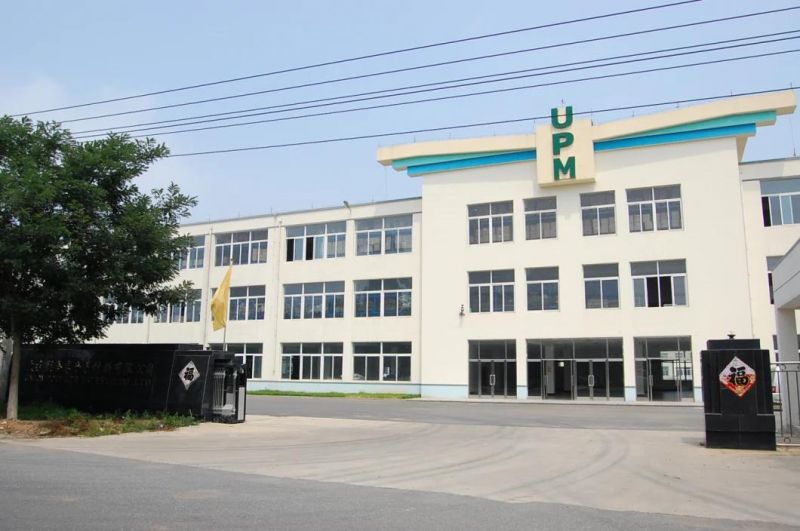

Company Profile

Union Polymer Material Co., Ltd. is a Canadian investment holding company. We are specialized in R & D, production and sales of radiation crosslinked heat shrinkable materials and other polymers. The main products include: single-wall/double-wall/three-layer co-extruded heat-shrinkable tubes, insulated heat-shrinkable tubes for bus bars, heat-shrinkable power cable accessories, heat-shrinkable connectors, moulding sleeves, heat-shrinkable tapes, etc.

The company has obtained ISO 9001:2008, ISO/TS 16949:2009 quality management system certification and ISO 14001:2004 environmental management system certification. Our products meet ROHS standards and have been certified by CE, UL, DNV, CCS, etc. Products are widely used in electronics, power, energy, telecommunications, automobiles, aviation and shipbuilding industries.

In UPM, we will wholeheartedly provide customers with the best solutions. We will continue to introduce new products and enrich them into our products.

Welcome to visit our website or contact our professional sales and service personnel. Specialized after-sales service personnel guarantee that any inquiries you make will be answered within 24 hours.

Union Polymer Material Co., Ltd. looks forward to becoming your qualified supplier and achieving win-win situation.

Frequently Asked Q & A


Q1. You are a manufacturer or trading company?

A: We are a leading manufacturer of shrinkable materials,with best price,high quality and short lead time.
Q2. Can you accept sample orders?

A:Yes, we can accept sample orders and we can also provide free samples for your test if necessary.

Q3. What is your MOQ?

A:Normally, for standard thin wall heat shrink, MOQ is 300m. For standard medium/heavy wall tube MOQ is 500m per size.

Q4. What are your payment terms?

A: As usual, the trade term is FOB Dalian. For order amount less than 10,000 USD, it should be 100% T/T in advance. For order amount over 10,000 USD, 30% deposit and 70% balance against copy of BL is acceptable.

Q5. How can I get my order?

A: Per your requirements, we will arrange the cargo delivered by express (e.g. TNT, DHL, FedEx ) ,by land,by air or by sea. After that, we will give you the tracking number or other relative files for your reference.

Q6. How about your quality?

A: We are a trust worthy supplier for GE,Siemens for more than 10 years. Most of the products got the CE,UL,DNV,CCS and Rohs approval. Let's start with a small trial order or free samples before the formal order, then you will get a clear image about the product quality and the relevant cost for transportation.

Q7. How is the delivery time?
A: Usually within 3 weeks.

Q8. Could you offer certificate of origin (e.g. Form-A,Form-E,Form-F,Form-R)?
A: It is totally not a problem. To help you enjoy the tariff concession,we can prepare the relevant certificate of origin.
