• Model NO.：ALL KINDS
• Flame Retardant：High
• Customized：Accept
• Condition：New
• Nylon Cable Gland：Metal Cable Gland
• Transport Package：Standard Packing
• Specification：UL
• Trademark：JMA
• Origin：China
• HS Code：3917400000
• Production Capacity：1000000000PCS,Month

Basic Info.

Model NO. ALL KINDS Flame Retardant High Customized Accept Condition New Nylon Cable Gland Metal Cable Gland Transport Package Standard Packing Specification UL Trademark JMA Origin China HS Code 3917400000 Production Capacity 1000000000PCS/Month

Product Description

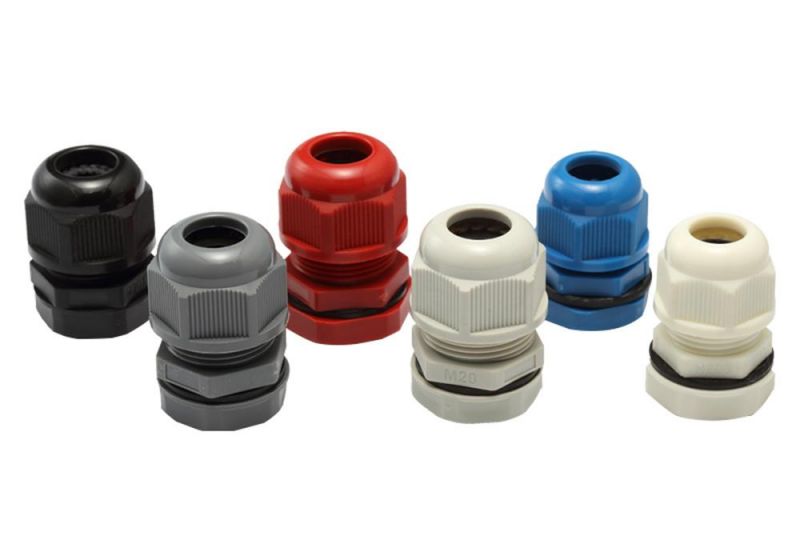

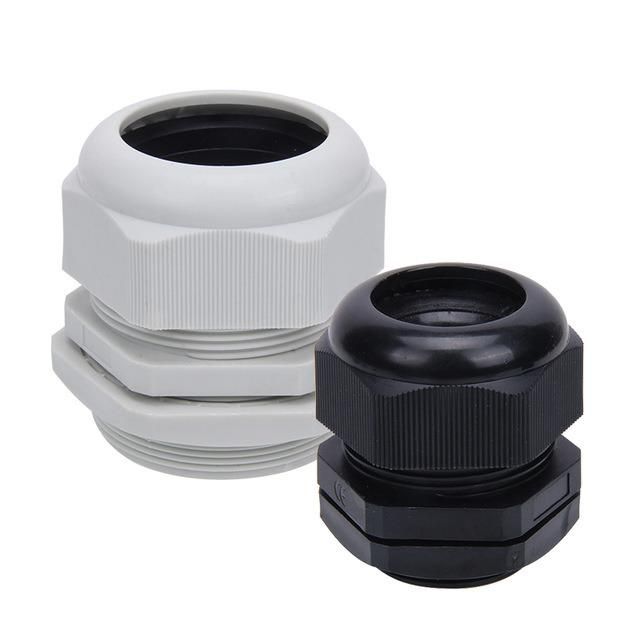

Product show




Material: Parts A, C, E are made of UL approved nylon PA66, parts B and D are made of nitrile butadiene rubber (NR).
Thread spec.: Metric, PG, G, NPT.
Working temperature: -40 to 100 in static state, instantaneous heat resistance up to 120; -20 to 80 in dynamic state, instantaneous heat resistance up to 100.
Characteristics: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high
Ability to resist salt, acid, alkali, alcohol, grease and general solvent.
Color: Black, white, grey as well as special colors that can be designed at request.
Basic data

Model	Thread size	Cable Range      (mm)	Thread O.D    L2(mm)	Thread Lenghth        (mm)	Spanner Size     A&E(mm)	Qty/bag
M12-L	M12×1.5	3-6.3	12	15	18/16	100
M12-L	M12×1.5	2-5	12	15	18/16	100
M16-L	M16×1.5	4-8	16	15	22/19	100
M16-L	M16×1.5	2-6	16	15	22/19	100
M18-L	M18×1.5	5-10	18	15	24/22	100
M18-L	M18×1.5	3-7	18	15	24/22	100
M20-L	M20×1.5	6-11	20	15	27/24	100
M20-L	M20×1.5	5-9	20	15	27/24	100
M22-L	M22×1.5	10-13	22	15	30/27	100
M22-L	M22×1.5	7-12	22	15	30/27	100
M24-L	M24×1.5	12-15	24	15	30/28	100
M24-L	M24×1.5	10-12	24	15	30/28	100
M25-L	M25×1.5	13-18	25	15	31/28	100
M25-L	M25×1.5	9-16	25	15	31/28	100
M27-L	M27×1.5	13-18	27	15	35/33	100
M27-L	M27×1.5	9-16	27	15	35/33	100
M28-L	M28×1.5	16-21	28	15	35/33	100
M28-L	M28×1.5	13-18	28	15	35/33	100
M30-L	M30×1.5	16-21	30	15	37/35	50
M30-L	M30×1.5	13-18	30	15	37/35	50
M32-L	M32×1.5	18-25	32	15	38/35	50
M32-L	M32×1.5	13-20	32	15	38/35	50
M36-L	M36×1.5	22-32	36	15	45/42	50
M36-L	M36×1.5	20-36	36	15	45/43	50
M40-L	M40×1.5	22-32	40	18	52/52	20
M40-L	M40×1.5	20-26	40	18	52/53	20
M46-L	M46×1.5	22-32	46	18	58/52	20
M46-L	M46×1.5	20-26	46	18	58/52	20
M50-L	M50×1.5	32-38	50	20	62/58	20
M50-L	M50×1.5	25-31	50	20	62/58	20
M58-L	M58×1.5	37-44	58	20	70/64	20
M58-L	M58×1.5	29-35	58	20	70/64	20
M63-L	M63×1.5	37-44	63	20	72/64	20
M63-L	M63×1.5	29-35	63	20	72/64	20

Why Choose Ziyong Technology
1) Professional operation experience
2)Good quality guarantee (2 years)
3)Free sample are available and available for quality test
4) Safe packaging and Prompt delivery
5) All size can be customised
6) Choose our products! You'll get Professional technology support

Quality guaratee
Strict quality controls have been taken to ensure that you'll get reliable products.
A. Material checks before production.
B. Random inspection during production.
C. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI, CE, RoHS




FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.
