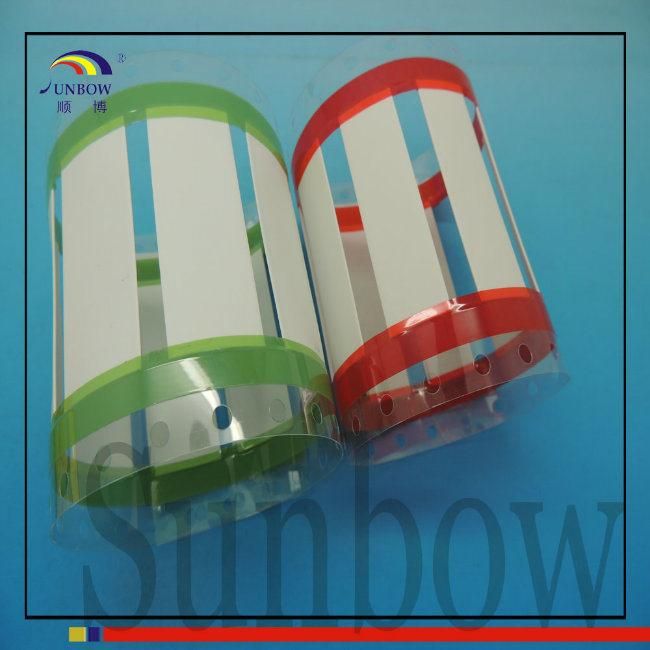

Green Sleeve PE Heat Shrink Tube for Cable Marker Sleeve
Shenzhen Sunbow Insulation Materials MFG. Co., Ltd.- Certification：UL, RoHS, ISO, IATF 16949
- Color：All Colors
- IP Rating：IP50
- Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
- Material：Polyolefin
- Type：Insulation Pipe
Base Info
- Model NO.：SB-HMS-M
- Working Temp：-55~+135c
- Shrink Temp：85 C (Minimum)
- Shrink Ratio：2:1 & 3:1
- Storage Temp：50 C
- Standard Color：White, Yellow
- Printer：Thermal Transfer Printer or Laser Printer
- Transport Package：Carton Package or Pallet Package
- Specification：ID2.0~79.4MM
- Trademark：SUNBOW
- Origin：Shenzhen, China
- HS Code：3917310000
- Production Capacity：1000000m,Month
Description
After Recovery(mm)ID(D) Flatten Width(w) Double Wall Thickness ID(d) Single Wall Thickness HMS-M-3X-1.6-50-2.5K 2.00±0.20 3.7±0.3 0.47±0.10 ≤0.53 0.52±0.06 HMS-M-3X-2.4-50-2.5K 2.79±0.20 5.0±0.3 0.47±0.10 ≤0.79 0.57±0.06 HMS-M-3X-3.2-50-2.0K 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.06 0.61±0.06 HMS-M-3X-4.8-50-2.0K 5.26±0.25 8.9±0.4 0.49±0.10 ≤1.59 0.67±0.06 HMS-M-3X-6.4-50-1.5K 6.92±0.28 11.5±0.4 0.50±0.10 ≤2.36 0.71±0.06 HMS-M-3X-9.5-50-1.0K 10.2±0.32 16.7±0.5 0.52±0.11 ≤3.18 0.77±0.06 HMS-M-3X-12.7-50-1.0K 13.5±0.36 21.8±0.6 0.53±0.11 ≤4.75 0.80±0.07 HMS-M-3X-19-50-0.5K 20.1±0.40 32.2±0.6 0.55±0.11 ≤6.35 0.84±0.07 HMS-M-3X-25-50-0.5K 26.7±0.45 42.5±0.7 0.56±0.12 ≤8.47 0.86±0.07 HMS-M-3X-38-50-0. 5K 39.8±0.51 63.2±0.8 0.57±0.12 ≤12.9 0.89±0.07 HMS-M-3X-51-50-0.25K 53.0±0.56 83.9±0.9 0.57±0.13 ≤17.2 0.90±0.08 HMS-M-3X-76-50-0.25K 79.4±0.56 125.3±1.0 0.57±0.13 ≤25.8 0.92±0.09
Color: Standard color is white and yellow (other color available upon request).
Color: Standard color is white and yellow (other color available upon request).
