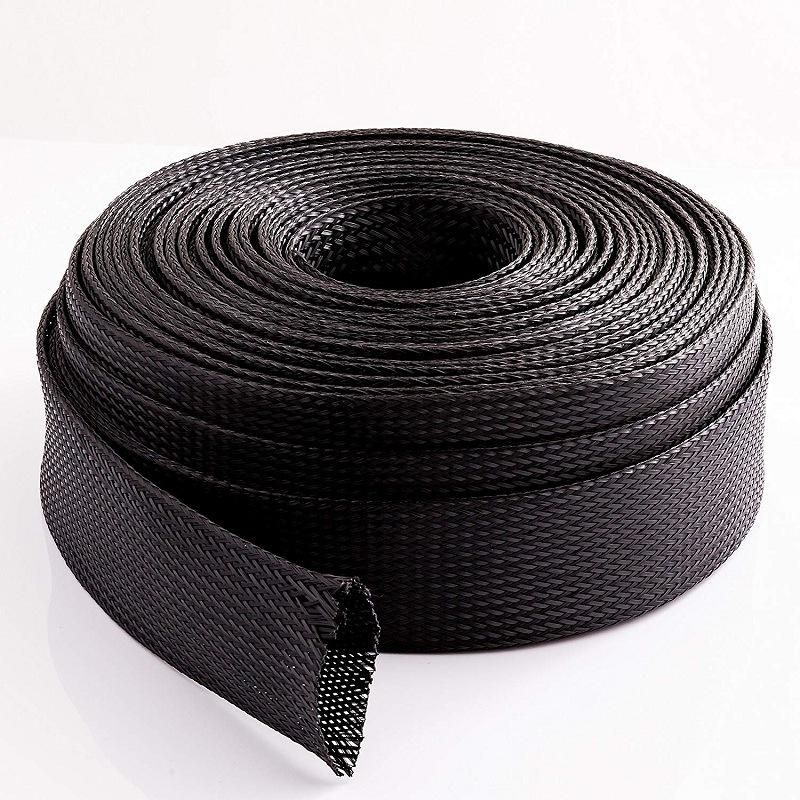

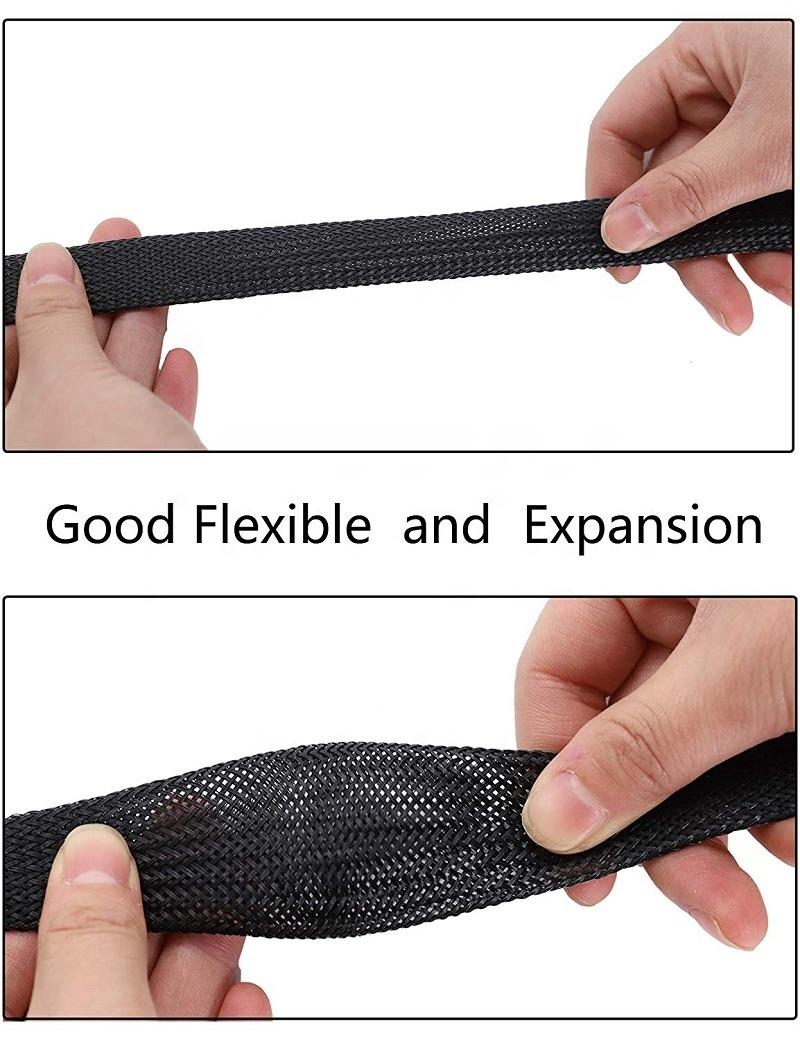

Expandable Braided Sleeving Cable Sleeving Pet Cable Sleeve
Shanghai Hampool Enterprise Co., Ltd.- Certification：UL, RoHS, CE
- Color：Black,Red,Blue,Green,White
- Usage：Electric Wire, Coating
- Material：PE
- Type：Heat Shrinkable
- Safety Standard：UL224 VW-1
Base Info
- Model NO.：HP-HST
- Product Name：Insulation Tube
- Rated Voltage：600V
- Application：Low Voltage
- Tensile Strength：10.4MPa
- Function：Insulation Sleeve
- Shrunk Ratio：2:1 3:1 4:1
- Transport Package：200PCS,Roller ,100PCS,Roller ,50PCS,Roller
- Specification：100X0.1X0.1 cm
- Trademark：HP
- Origin：China
- Production Capacity：100000 Piece,Pieces Per Day Heat Shrink Tube
Description
PropertySpecification RequirementTest MethodTypical ValueTensile strength (Room temp.)Min. 10.4MpaUL22412MpaElongation at break (Room temp.)Min. 200%UL224400%Tensile strength after aging (158ºC 168hrs)Min. 7.3MpaUL22410.4MpaElongation after aging (158ºC 168hrs)Min. 100%UL224300%Voltage withstand (Un-aged)Withstand 2.5kV for 1 minute and breakdownUL224PassVoltage withstand (Aged)Withstand at least half of un-aged breakdown
voltage for 1 minute and breakdownUL224PassCorrosion (158ºC 168hrs)No corrosionUL224No sign of deg.Longitudinal shrinkage≤10%UL224≤5%Low-temperature flexibility (-55ºC 4hrs)No crackingUL224Pass
voltage for 1 minute and breakdownUL224PassCorrosion (158ºC 168hrs)No corrosionUL224No sign of deg.Longitudinal shrinkage≤10%UL224≤5%Low-temperature flexibility (-55ºC 4hrs)No crackingUL224Pass
