• Model NO.：HT 7-48
• Material：Nylon
• Transport Package：Plastic Bag + Sticker + Exporting Carton,Tray
• Specification：UL 94
• Trademark：HONT
• Origin：Wenzhou, Zhejiang, China
• HS Code：39269090
• Production Capacity：10000000bag,Year

Basic Info.

Model NO. HT 7-48 Material Nylon Transport Package Plastic Bag + Sticker + Exporting Carton/Tray Specification UL 94 Trademark HONT Origin Wenzhou, Zhejiang, China HS Code 39269090 Production Capacity 10000000bag/Year

Product Description

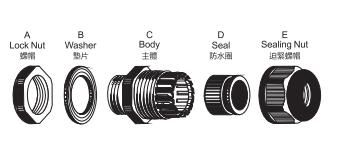

  NYLON CABLE GLAND
1.Material:PA(NYLON),UL94
2.Hermetic seal:NBR,EPDM
3.Working temperature:-40ºC to 100ºC in static state Instantaneous heat resistance up to 120ºC. -20ºC to 80ºC in dynamic state.
  Instantaneous heat resistance up to 100ºC.
4.Degree of Protection:IP68-10
5.Color:Grey,Black,other colors customized.






ITEM NO.	Thread	φ (mm)	H(mm)	GL(mm)	mm
HT-7	PG7	3-6.5	21	8	15
HT-7	PG7	2-5	21	8	15
HT-9	PG9	4-8	21	8	19
HT-9	PG9	2-6	22	8	19
HT-11	PG11	5-10	25	8	22
HT-11	PG11	3-7	25	8	22
HT-13.5	PG13.5	6-12	27	9	24
HT-13.5	PG13.5	5-9	27	9	24
HT-16	PG16	10-14	28	10	27
HT-16	PG16	7-12	28	10	27
HT-21	PG21	13-18	31	11	33
HT-21	PG21	9-16	31	11	33
HT-29	PG29	18-25	39	11	42
HT-29	PG29	13-20	39	11	42
HT-36	PG36	22-32	48	13	53
HT-36	PG36	20-26	48	13	53
HT-42	PG42	32-38	49	13	60
HT-42	PG42	25-31	49	13	60
HT48	PG48	37-44	49	14	65
HT48	PG48	29-35	49	14	65

FAQ

Q1. What's the MOQ?
       USD3000,negotiatable for trial order.

Q2. What's the delivery time for sample order?
          The proofing time is 5-7 days.

Q3. What's the delivery time for first order?
          Normally 25-30 days,during busy season,it's is 30-45 days accordint to your purchase quantity.

Q4. What's the payment terms?
          We accept T/T; L/C,other way please consult by email.

Q5. How to pay for the order?
          30% deposit ,70% balance received before B/L.

Q6. Could you offer samples?
          Available.

Q7. Can you give the CIF price?
         CIF price we will require for the detailed quantity and size.

Q8. What's the package?
         Cartoon box.We can follow as your requested if you have special requested in packing.
