PVC Coated Flexible Steel Conduit/Electrical Flexible Pipe
Comflex Industrial Co., Ltd.- Color：Grey
- IP Rating：IP50
- Surface Treatment：Polishing
- Application：Customized
- Material：Stainless Steel,Galvanized Steel
- Certification：CE
Base Info
- Model NO.：Comflex
- Product Name：Good Sealing Metal Flex Gooseneck Conduit
- Place of Origin：Jiangsu, China(Mainland)
- Brand Name：Comflex
- Size/ID：3-102mm
- Od：5-110mm
- Thickness：0.2-1.5mm
- Temperature：-40 to 120 Degree
- Coating：PVC Coating Optional
- Customize：Acceptable
- Coated：PVC
- Transport Package：Standard Seaworthy Package
- Specification：CE,ROHS
- Trademark：Comflex
- Origin：Wuxi, Jiangsu, China(Mainland)
- HS Code：7307190000
- Production Capacity：50000 Meter,Meters Per Month
Description
Technical data for flexible conduitNo. Size
(inch) Inner diameter
(mm) Outer diameter
(mm) PVC coated OD Package
(M) W030050S1F1 3.00 5.00 6.00 100 W040060S1F1 4.00 6.00 7.00 100 W050070S1F1 5.00 7.00 7.60 100 W060080S1F1 6.00 8.00 9.20 100 W070090S1F1 7.00 9.00 9.80 100 W080010S1F1 8.00 10.00 11.00 100 W090011S1F1 9.00 11.00 12.00 100 W010012S1F1 10.00 12.00 13.00 100 W095125S1F1 1/4 9.50 12.50 13.20 50 W125157S1F1 3/8 12.50 15.70 16.60 50 W030060S1F1 1/2 16.10 19.50 20.50 50 W030060S1F1 19.10 22.20 23.00 50 W208255S1F1 3/4 20.80 24.30 25.50 40 W220268S1F1 22.00 25.60 26.80 40 W264316S1F1 1 26.40 30.00 31.60 30 W345396S1F1 1 1/4 34.50 38.00 39.60 30 W400468S1F1 1 1/2 40.00 45.00 46.80 20 W510586S1F2 2 51.00 57.00 58.60 10

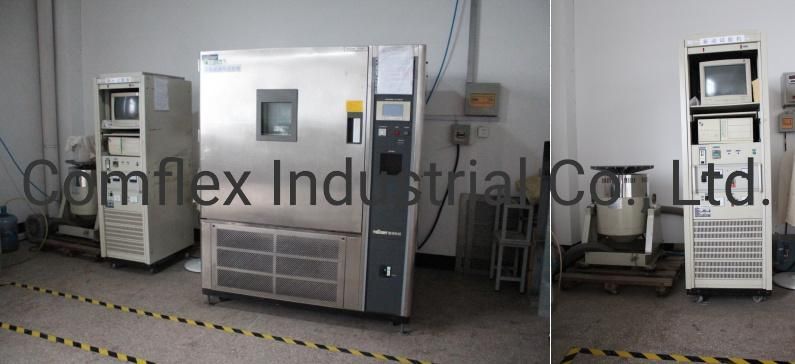

Testing machine

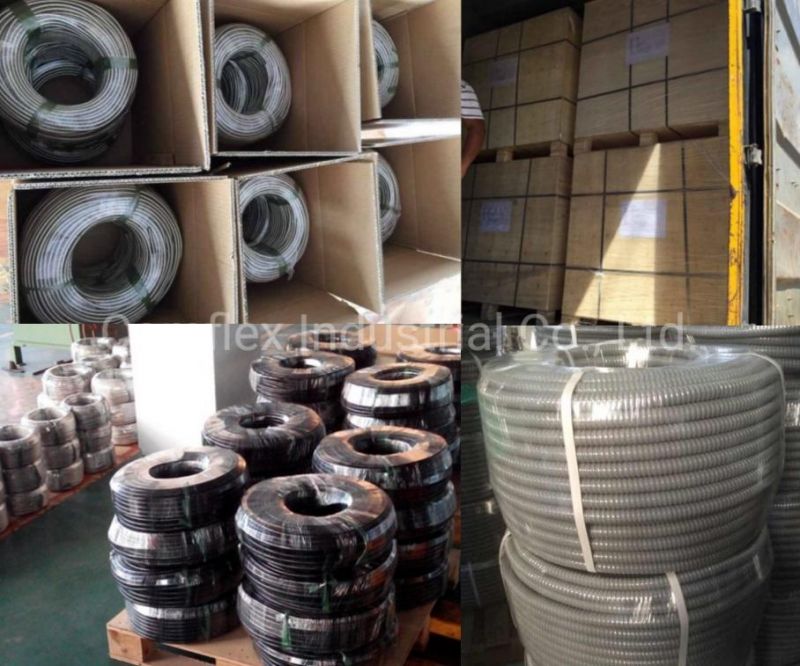

Packages&Delivery
Company Information
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 35 years of history, such as corrugated metal hose, square lock and interlock hose/ conduit, and expansion joint, PTFE hose, hose making machine, etc... The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power, cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, natural gas pipeline construction, Central air conditioning, aerospace, and other industries. Our products have been exported to many countries such as Russia, Ukraine, the USA, Australia, New Zealand, Poland, etc.
FAQ for conduit
Q: What material hose do you have?
A: stainless less steel (garde201, 3045, 316L, 321), galvanized steel, aluminum.
Q: What size hose and what type do you have?
A: We have both square lock and interlock hose
B: square lock hose: ID 3.2mm-57mm
C:interlock hose: ID4 till ID56
Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and PVC coating material & thickness.
Q: Why should I choose you?
A: we produce both hose and hose-making machines with many years of experience and professional technology.
Q: What are your hose features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
We need to know the following information before we send the quotation for the hoses/conduit you need:
1. Hose/conduit material
2. Hose/conduit type, for instance, square lock or interlock hose
3.Size/diameter
4. Quantity, for big quantity orders, the prices will be much lower
(inch)
(mm)
(mm)
(M)
Testing machine
Packages&Delivery
Company Information
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 35 years of history, such as corrugated metal hose, square lock and interlock hose/ conduit, and expansion joint, PTFE hose, hose making machine, etc... The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power, cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, natural gas pipeline construction, Central air conditioning, aerospace, and other industries. Our products have been exported to many countries such as Russia, Ukraine, the USA, Australia, New Zealand, Poland, etc.
FAQ for conduit
Q: What material hose do you have?
A: stainless less steel (garde201, 3045, 316L, 321), galvanized steel, aluminum.
Q: What size hose and what type do you have?
A: We have both square lock and interlock hose
B: square lock hose: ID 3.2mm-57mm
C:interlock hose: ID4 till ID56
Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and PVC coating material & thickness.
Q: Why should I choose you?
A: we produce both hose and hose-making machines with many years of experience and professional technology.
Q: What are your hose features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
We need to know the following information before we send the quotation for the hoses/conduit you need:
1. Hose/conduit material
2. Hose/conduit type, for instance, square lock or interlock hose
3.Size/diameter
4. Quantity, for big quantity orders, the prices will be much lower
