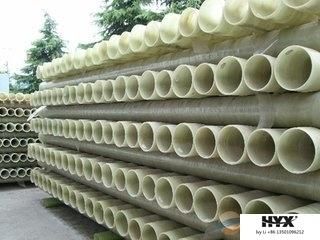

FRP Pipes for Cable Casing Application
Beijing Hong Yun Xi International Trade Company Limited- Color：Green
- IP Rating：IP68
- Surface Treatment：FRP

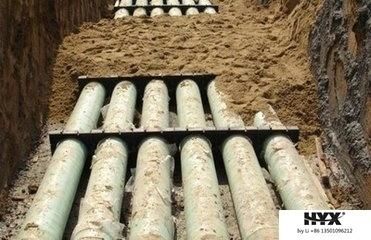

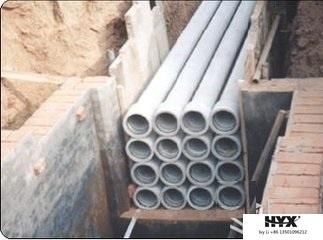

- Application：Underground
- Material：Gfrp
- Certification：ISO
Base Info
- Model NO.：DN100-200
- Standard：GB50303-2015
- Transport Package：Steel Frame
- Specification：DN100-200MM
- Trademark：HYX
- Origin：China
- HS Code：39172900
- Production Capacity：120000 Meters
Description
D1DB-N DB-R DB-E DB-N DB-R DB-E S L 100 3 5 8 116 120 126 80 4000 125 5 - 8 145 - 151 100 4000 150 5 8 10 170 176 180 100 4000 175 8 10 12 201 205 209 100 4000 200 8 10 14 226 230 238 120 4000
Note: For the special sepcification shall be made according to the client's requirements.
Mechanical properties of FRP cable casing pipe
Note: For the special sepcification shall be made according to the client's requirements.
Mechanical properties of FRP cable casing pipe
| No. | Item | Unit | Index |
| 1 | Bend strength | MPa | ≥135 |
| 2 | Tensile strength | MPa | ≥120 |
| 3 | Impact property | - | no cracks |
| 4 | Stiffness while the radial variety ratio is 10% | MPa | DB-N,DB-R,DB-E ≥1.2,≥2.4,≥5.0 |
| 5 | Heat distortion temperature under bend load (Maximum bend positive stress is 1.81 MPa) | ºC | ≥130 |
| 6 | Retention ratio of bend strength after soaked in water | % | ≥80 |
| 7 | Barcol hardness | - | ≥35 |
| 8 | Index of oxygen | % | ≥26 |
| 9 | Sliding friction coefficient | - | ≤0.34 |
| 10 | Heat resistance factor | ºC▪m/w | ≤4.8 |
