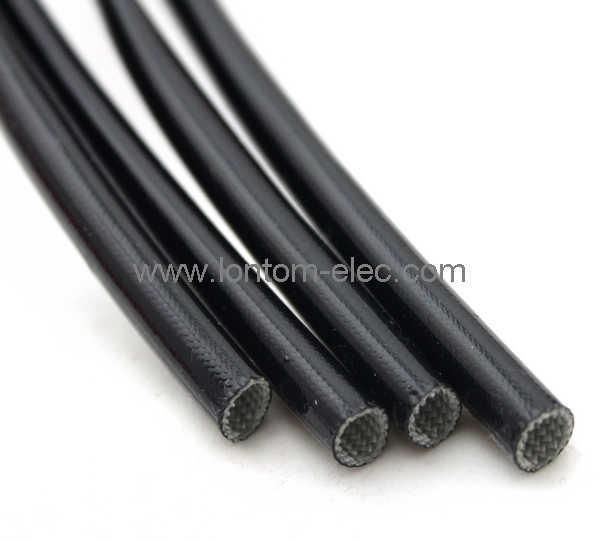

Acrylic Resin Coated Fiberglass Sleeving (APF)
Shanghai Lontom Electric Material Co., Ltd.- Application：Electrical Winding Insulation, Winding Wire Coating Insulation, Motor
- Type：Solid
- Chemistry：Inorganic Insulation
- Material：Fiberglass
- Thermal Rating：F 155
- Maximum Voltage：<10KV
Base Info
- Model NO.：LT-APF
- Classification：Inorganic Insulation Material
- Certification：UL
- Transport Package：Roll or Cutting Length as Per Customer′s Need
- Specification：UL1441; RoHS
- Trademark：LONTOM
- Origin：Shanghai, China
- HS Code：70199000
- Production Capacity：10, 000, 000 Meters Yearly
Description
SizeI. D. (mm) Wall thickness (mm) Roll Package Cutting Package
Min. Max. APF2500V APF4000V Mts/Roll Mts/Carton Mts/PC PCS/Bag PCS/Carton
1.0 1.0 1.3 0.41±0.12 0.43±0.12 200 5, 000 1.0 100 6, 000
1.5 1.5 1.8 0.41±0.12 0.43±0.12 200 3, 000 1.0 100 5, 000
2.0 2.0 2.3 0.41±0.12 0.43±0.12 200 2, 400 1.0 100 3, 600
2.5 2.5 2.8 0.41±0.12 0.43±0.12 200 2, 000 1.0 100 3, 000
3.0 3.0 3.3 0.48±0.12 0.51±0.15 200 1, 600 1.0 100 2, 000
3.5 3.5 3.8 0.48±0.12 0.51±0.15 200 1, 200 1.0 100 1, 800
4.0 4.0 4.3 0.48±0.12 0.51±0.15 200 1, 200 1.0 100 1, 600
5.0 5.0 5.3 0.52±0.15 0.55±0.15 100 1, 000 1.0 100 1, 200
6.0 6.0 6.3 0.52±0.15 0.55±0.15 100 800 1.0 100 900
7.0 7.0 7.3 0.52±0.15 0.55±0.15 100 600 1.0 50 600
8.0 8.0 8.3 0.52±0.15 0.55±0.15 100 600 1.0 50 600
9.0 9.0 9.3 0.62±0.15 0.66±0.15 100 600 1.0 50 450
10.0 10.0 10.3 0.62±0.15 0.66±0.15 100 600 1.0 40 360
12.0 12.0 12.3 0.62±0.15 0.66±0.15 100 600 1.0 30 270
14.0 14.0 14.3 0.64±0.15 0.68±0.15 100 600 1.0 20 200
16.0 16.0 16.3 0.64±0.15 0.68±0.15 100 600 1.0 20 200
