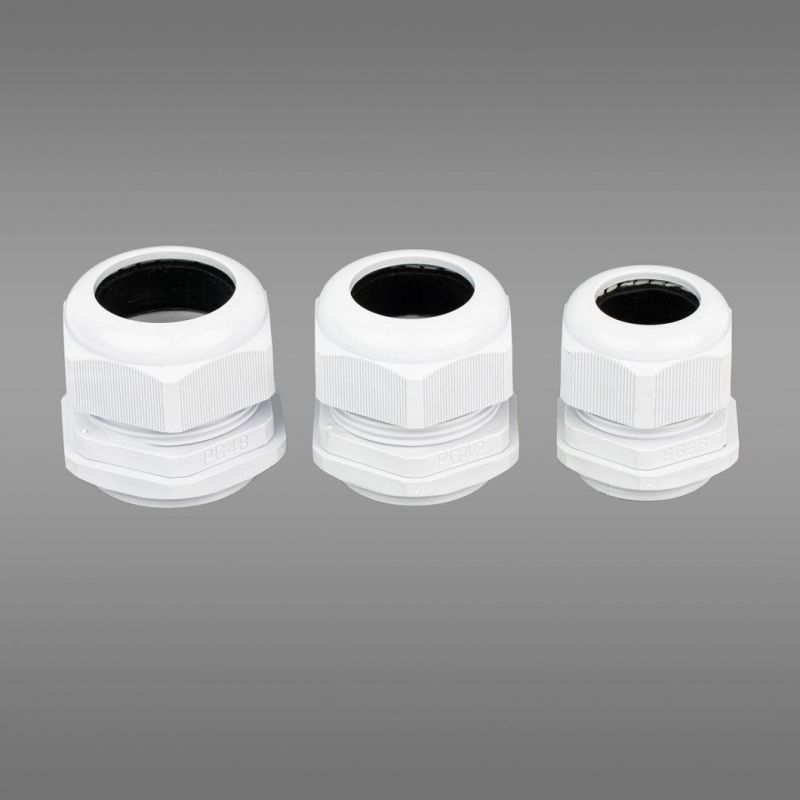

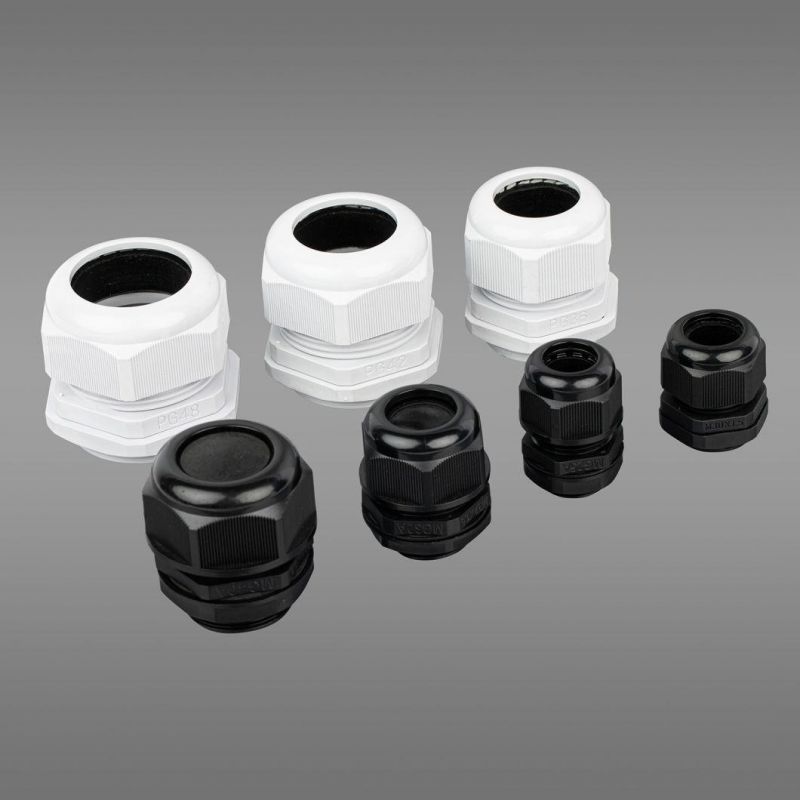

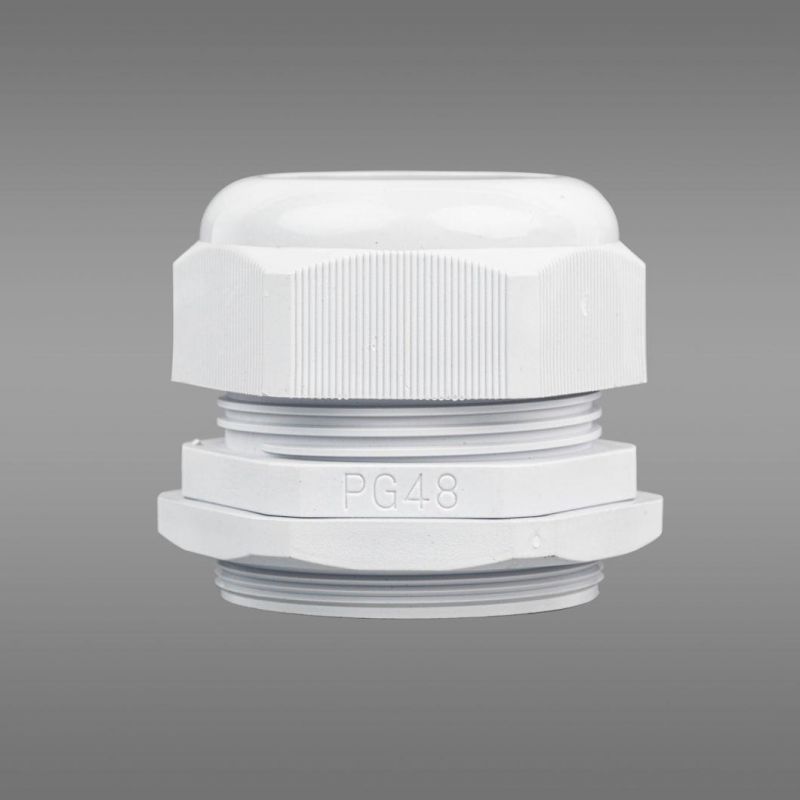

IP68 RoHS Wholesale Waterproof Pg7 M12 Thread Nylon Cable Gland for Cables
Wenzhou Huida Plastic Co., Ltd.- Surface Treatment：Baking Paint
- Color：White,Natural,Black
Base Info
- Model NO.：PG7
- IP Rating：IP68
- Material：Nylon
- Type：Nylon Cable Gland
- Transport Package：Polybag+Label+Master Carton
- Specification：PG7, PG9, PG13.5
- Trademark：HDS
- Origin：China
- HS Code：3926909090
- Production Capacity：100 Ton,Year
- Package size per unit product：44.00cm * 43.00cm * 36.00cm
- Gross weight per unit product：16.000kg
Description
Type
Thread length L1 (mm)
Cable range (mm)
Thread O .D .L2 (mm)
Spanner size A & E (mm)
Qty/bag
PG-07
8
3.5-6
12
16.5
100
PG-09
8
4.5-7
15.2
21.5
100
PG-11
8
5.5-10
18.6
25
100
PG-13.5
9
6-12
20.4
27
100
PG-16
10
10-14
22.5
30
100
PG-21
11
14-18
28.3
36
100
PG-25
12
16-21
30
37
50
PG-29
11
18-25
37
57.5
50
PG-36
12
25-33
47
58
20
PG-42
13
30-38
54
65
20
PG-48
14
34-44
59.3
70
20
PG-63
28
42-51
70
82
10
Type
Thread length L1 (mm)
Cable range (mm)
Thread O .D .L2 (mm)
Spanner size A & E (mm)
Qty/bag

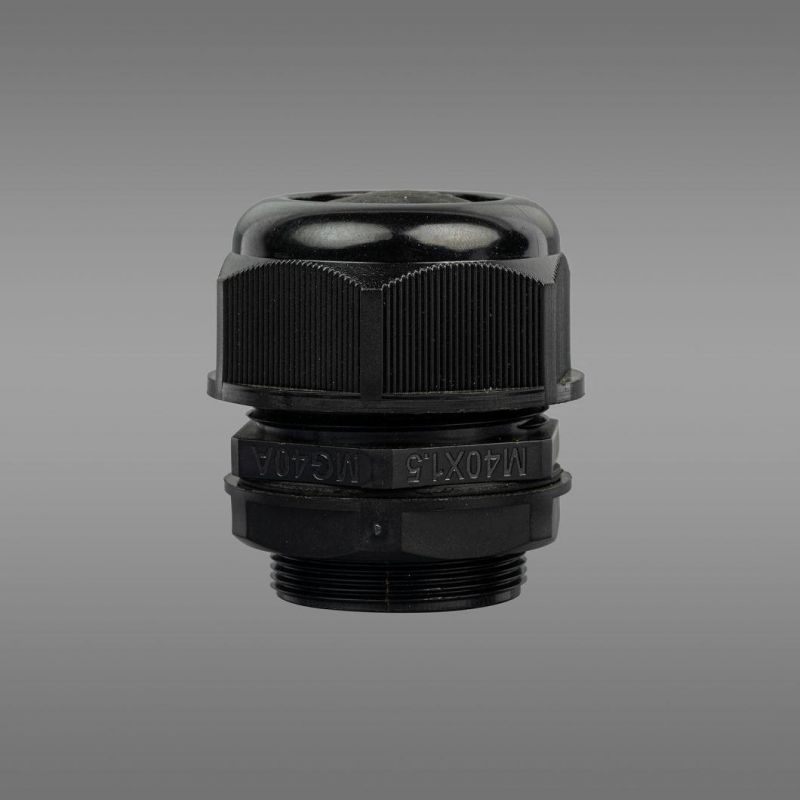

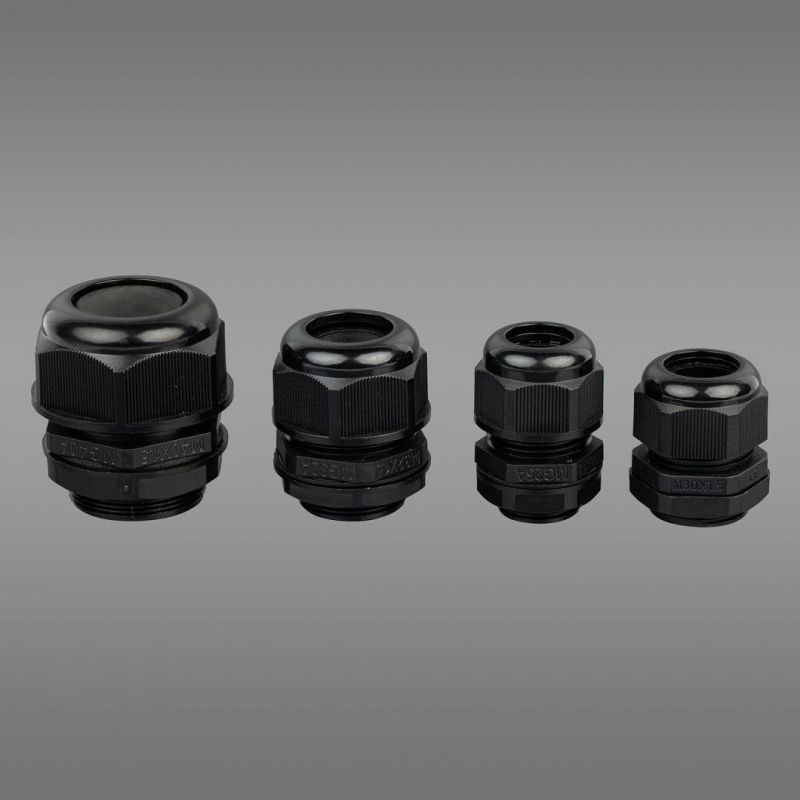

MG-12
8.5
4.6-7.6
12
18
100
MG-16
15
6-10
16
22
100
MG-20
15
9-14
20
27
100
MG-25
15
13-18
25
33
100
MG-32
15
18-25
32
41
20
MG-40
20
24-30
40
50
20
MG-50
22
30-39
50
61
20
MG-63
25
40-48
63
75
20
Samples is available to send to check our quality!

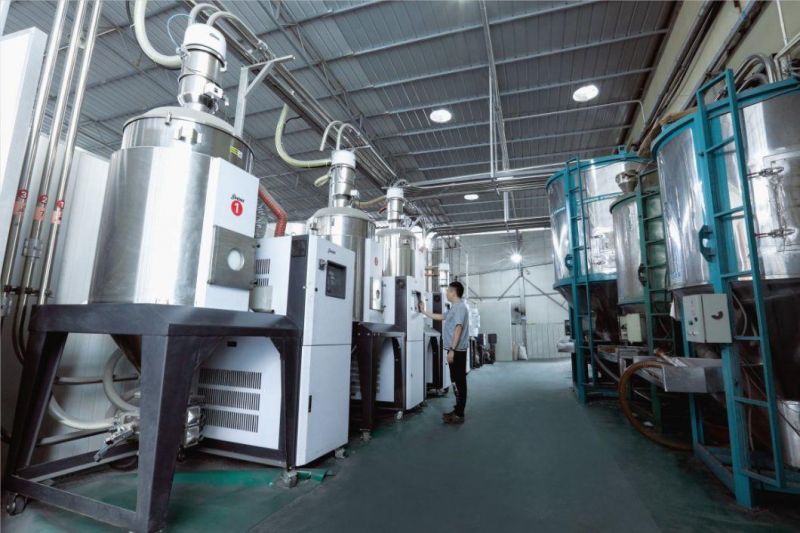

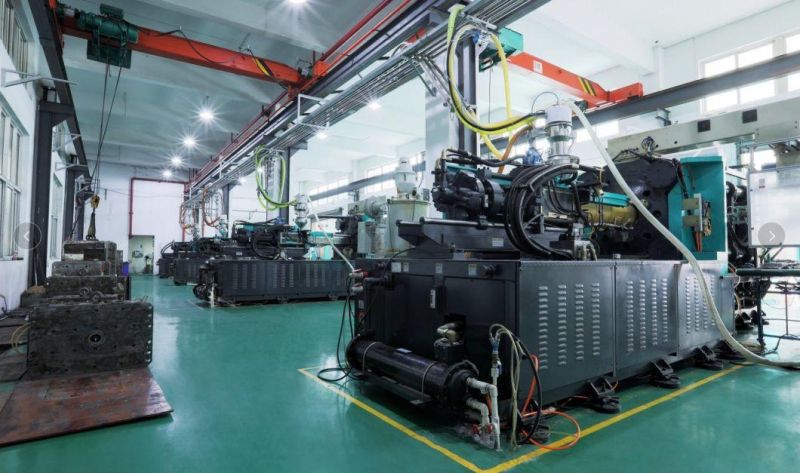

WORKSHOP:
