• Model NO.：NL
• Insulation Material：PE
• Material Shape：Round Wire
• Range of Application：Cold-Resistant
• Certification：Ce, ISO9001, CCC, UL
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：Powtech
• Origin：China
• HS Code：7316
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. NL Insulation Material PE Material Shape Round Wire Range of Application Cold-Resistant Certification Ce, ISO9001, CCC, UL Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 7316 Production Capacity 50000PCS/Month

Product Description

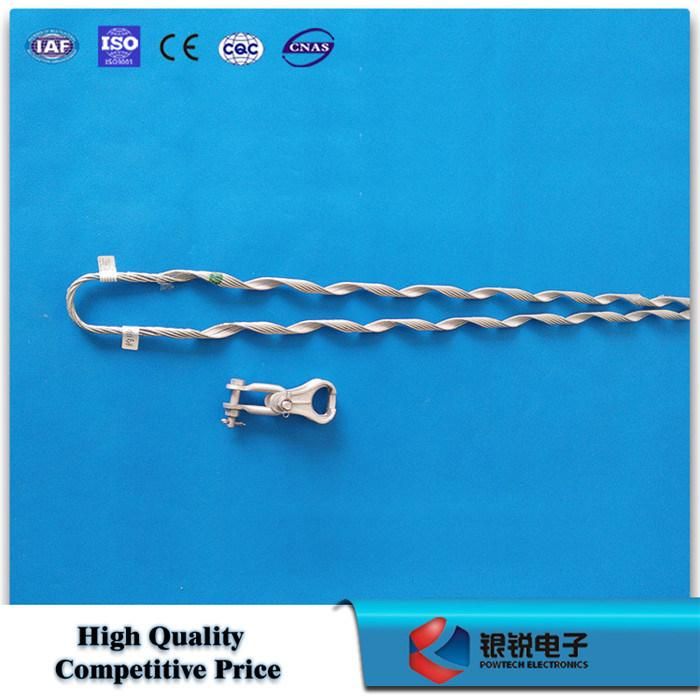

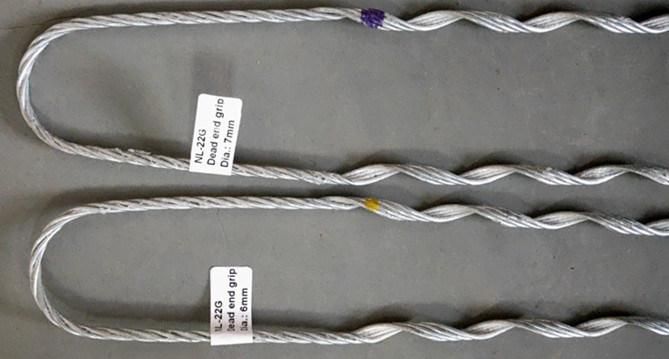

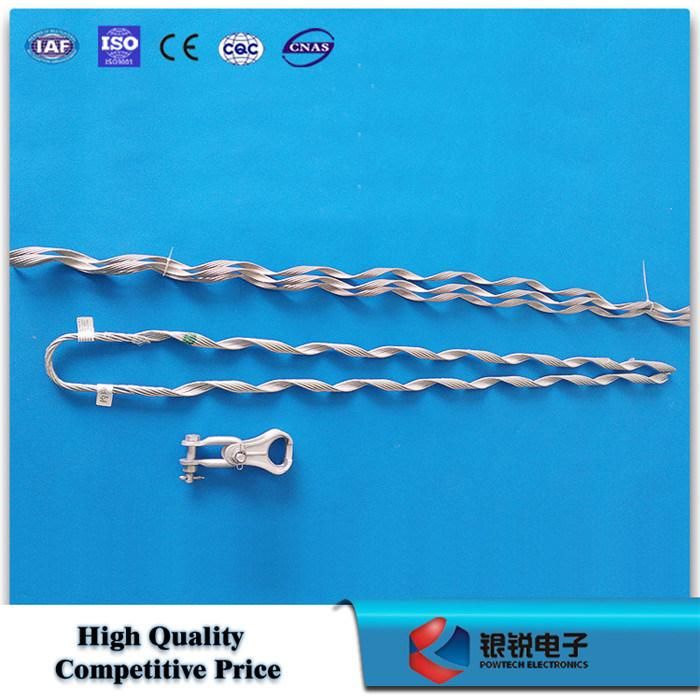

Dead end guy grips/ Preformed tension clamp for ADSS / OPGW cable



Description:
(1) Guy-grip dead-ends are intended for use on single wood poles associated with distribution construction.2) Galvanized strand
(3)

Model	Guy Wire(mm)	Length(mm)	Guy Wire(mm2)	Weight(kg)	Color code
NL-25/G	6.6	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.00~11.50	1016	70	0.8	Green
NL-95/G	12.5	1333	95	1.7	Orange
NL-100/G	13.0	1333	100	1.7	Yellow
NL-120/G	14.0	1460	120	2.2	Yellow

Guy-grip dead-ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The Guy-grip dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.

Guy-grip dead-ends are made of the same material as the strand to which they are applied. Guy-grip dead-ends should be used on hardware that is held in a fixed position. The fitting should not be allowed to rotate or spin about the axis of the strand. They should not be used as tools inlcuding come-alongs, pulling-in grips, ect

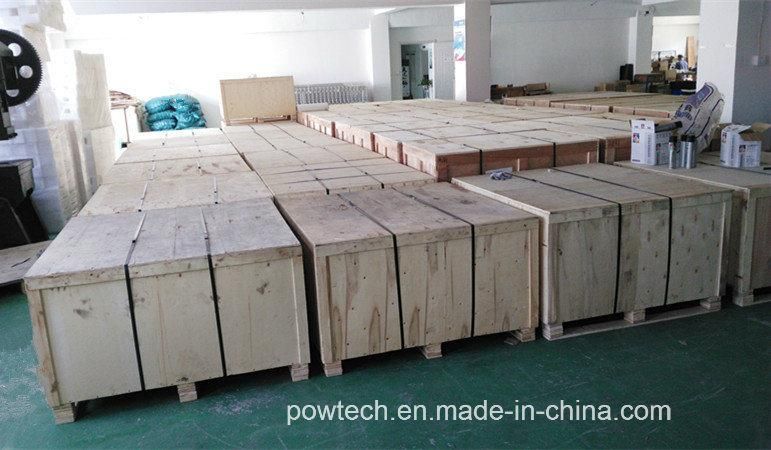

Warehouse:

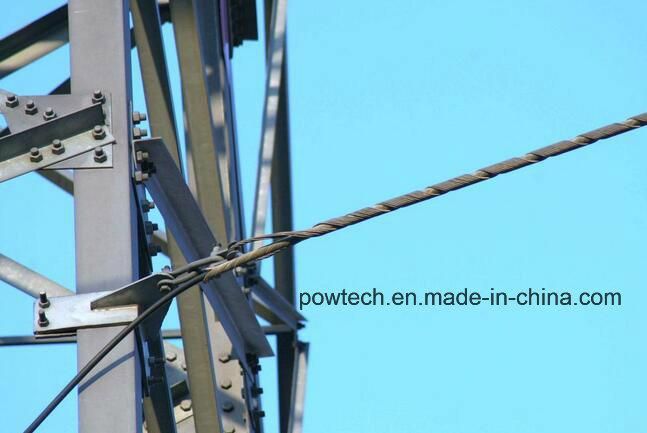

Installation Guide:
