• Model NO.：WD6A-003
• Trademark：Weidan Electronics
• Origin：China
• Production Capacity：100k PCS,Month

Basic Info.

Model NO. WD6A-003 Trademark Weidan Electronics Origin China Production Capacity 100k PCS/Month

Product Description

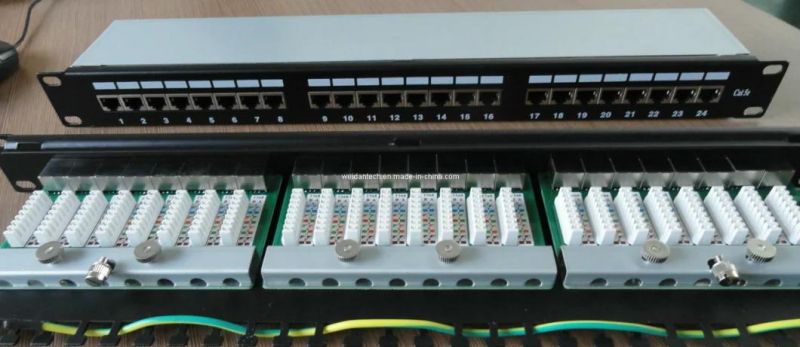

1U 24Port FTP CAT5E/CAT6 Patch panel 19" inch, integration type, with Rack mount Bar

1. Design to mount to any standard 19" patch panel. With Rear cable managerment
2. Space saving, high-density 1U (24 port).
3. IDC contract material: Phosphor bronze with tin plating over nickel. PC UL94V-0, white color.
4.110& krone punch down tools are available.
5. Sturdy Aluminum Plate around RH 5 Jacks.
6. Phosphor bronze with 50 micro inches gold plated.
7. Availabe with T568 A, T568B wiring pattern and meeting the requirement of cat5E standard.
8. Color Coded TIA/EIA 568 A (international) and 568B (AT&T Standard) Wiring for Easy Installation.
9. Termination accepts 22, 24, 26 AWG (0.64, 0.5 and 0.4) solid wires.
10. Metal sheet: Corrosion resistant steel sheet.
Outer housing: SPCC Quality Cold rolled steel
11. Plastic: Fire self extinguish high impact
12. Pass FLUKE test
13.Application:Telephone, Computer, Workstation, Server, Mobile phone, Laptop

Approval

CE ROHS
