Indoor & Outdoor FTTH Fiber Optical Terminal Box Fiber Joint Box Cable Box Fiber Optic Mdu Distribution Facility
Hunan Honketel Optical Communication Co., Ltd.- Certification:CCC, RoHS, ISO, CE
- Port Number:2 Inlet & 16 Outlet
- Usage:FTTH FTTB FTTX Network
- Type:Fiber Optical Terminal Box
- Material:PC+ABS,ABS
- Installation:Indoor & Outdoor
Base Info
- Model NO.:Fiber optical distribution box
- Fiber Length:1m.1.5m or Customized
- Splitter:with Splitter or Without Splitter
- Color:White or Black
- Splice:Mechanical Splice and Heat Shrinking
- No. of Fiber:16 Core
- Size:172*288*103mm
- Weight:1kg
- Logo:Customized
- Warrenty:24 Month
- Cable Diameter:8-12mm
- Inport/Outport:4,16
- Transport Package:1PCS,PP Bag, 20PCS,Carton
- Specification:265mm*290mm*90mm
- Trademark:OEM
- Origin:China
- HS Code:85367000
Description
Basic Info.
Model NO. Fiber optical distribution box Fiber Length 1m.1.5m or Customized Splitter with Splitter or Without Splitter Color White or Black Splice Mechanical Splice and Heat Shrinking No. of Fiber 16 Core Size 172*288*103mm Weight 1kg Logo Customized Warrenty 24 Month Cable Diameter 8-12mm Inport/Outport 4/16 Transport Package 1PCS/PP Bag, 20PCS/Carton Specification 265mm*290mm*90mm Trademark OEM Origin China HS Code 85367000Product Description
Indoor & Outdoor FTTH Fiber Optical Terminal Box Fiber Joint Box Cable Box Fiber Optic MDU Distribution FacilityProduct Description
Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications. FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use. They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.
Features
1 fiber joint box is made of high-quality engineering plastic with good strength
2 With a safe special-shaped lock, the box can be opened easily and has good waterproof performance, suitable for indoor and ODB, ODP, NAP, FDB, FDP outdoor nature environments
3 With the independent 16F rubber sealing plug for drop cable, better waterproof performance
4 With the independent design, cable box fiber optic can be installed and maintained easily, the fusion and termination are completely separated, fiber optic splicing and distribution won't be disturbed by each other
5 The drop leaf can be installed 2 pcs of 1*8 tube splitter for 16C termination
Application
Fiber FTTH access network.
Telecommunication FDB Networks
Optical CATV Networks
Data communications FDP Networks
Local Aera NAP Joint Networks

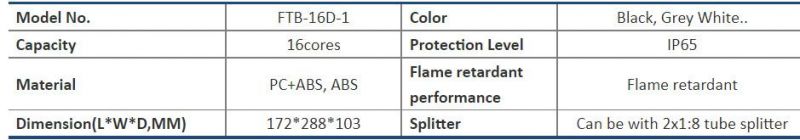

Technical Index

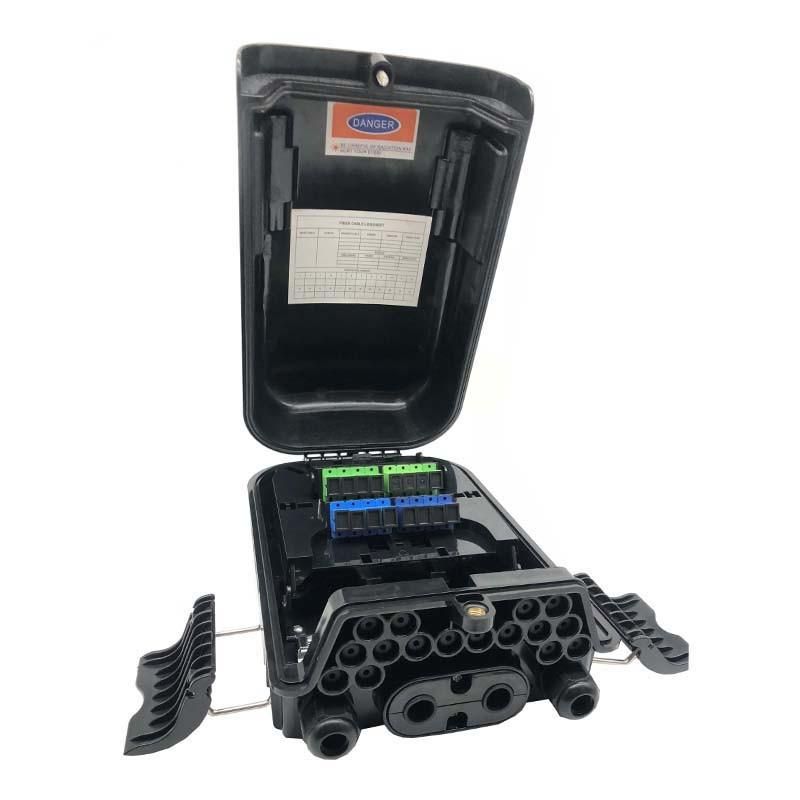

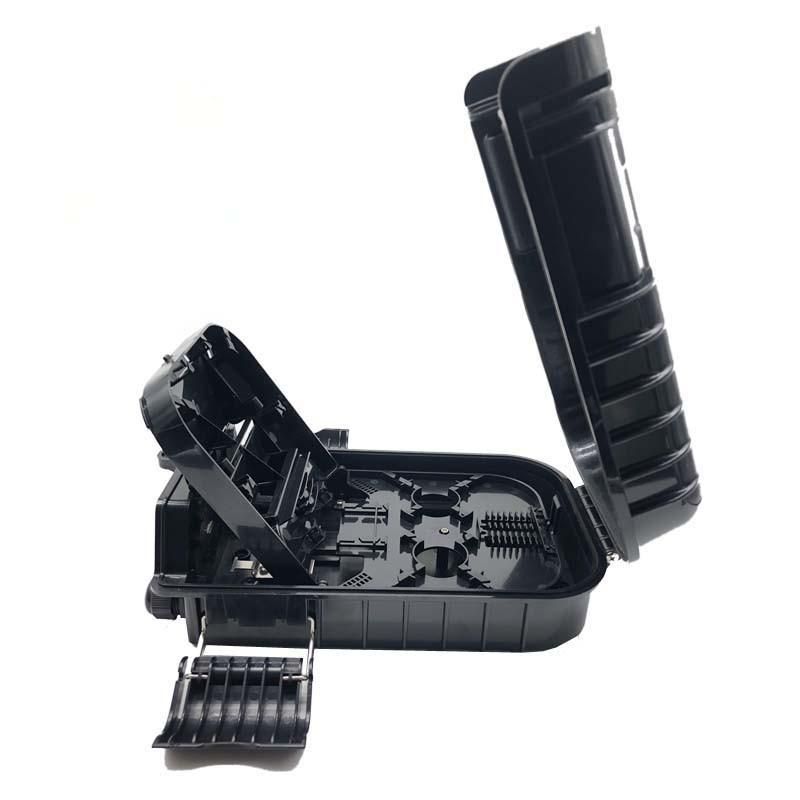

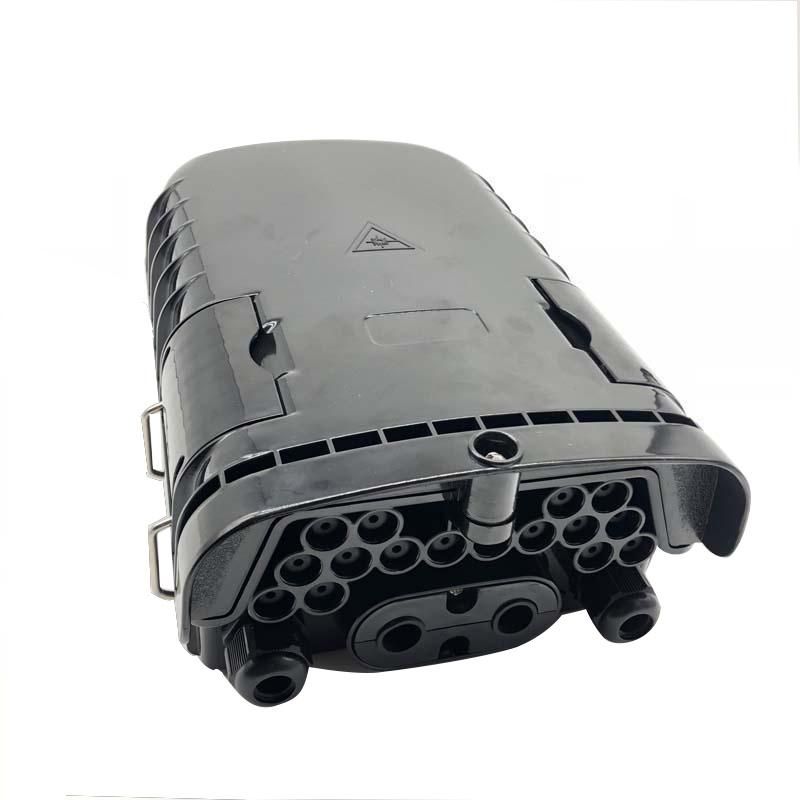

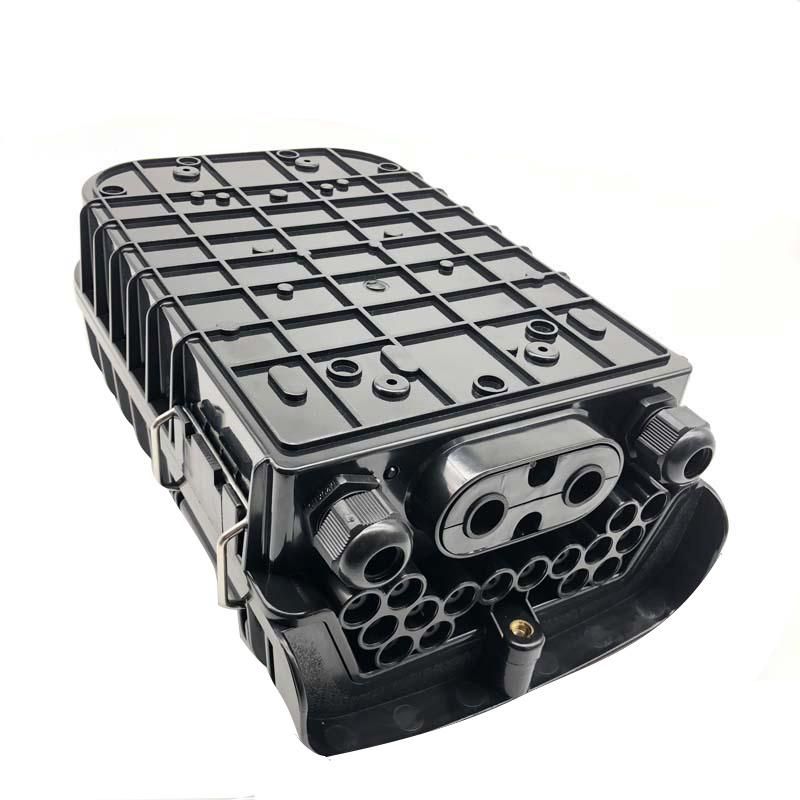

Products Picture
Shipping Details
Distribution box,1 unit:Keys for lock,2 keys
Package Contents:Wall mount installation accessories,1 set
Package Dimensions(W*H*D): 265mm*290mm*90mm
Material :Carton box
Weight 1.5KG.It Depends on order quanity
Lead Time: 10-25 working days normally
Other Related Products
Company Profile
Certifications

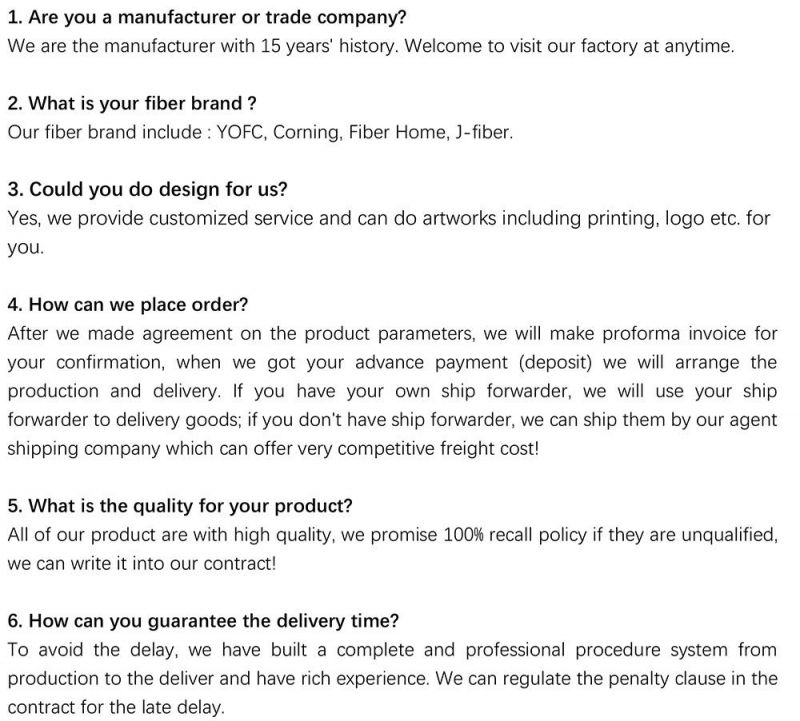

FAQ
