• Model NO.：BS-PETH
• Application：Insulators, Electrical Winding Insulation,
• Chemistry：Organic Insulation
• Operating Range：-50ºC ±150ºC
• Melt Point：240ºC±10ºC
• Flammability：UL94V-0
• Standard Colour：Black
• Certificate：RoHS
• Cutting Tool：Sissor and Hot Knife
• Transport Package：1000m500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm-76mm Flat Width
• Trademark：EKO
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

Part No Size Expanded Range(mm) Packing (L)  Flat width(mm) Min(I) Max.(O) M/spool BS-PETH003 3 1 6 1000 BS-PETH006 6 3 9 500 BS-PETH008 8 516 350 BS-PETH010 10 719 350 BS-PETH012 12 824 300 BS-PETH016 151027 250 BS-PETH019 201430 200 BS-PETH025 251835 200 BS-PETH032 302050 150 BS-PETH038 403060 100 BS-PETH045 453575 100 BS-PETH050 504080 100 BS-PETH064 6445105 100 BS-PETH076 7664120 100
Product feacture
1.Commonly used in high-temperature environment
2.It has high-abrasion resistance, chemical resistance, high-temperature stability, low-moisture absorption, excellent dimensional stability.
3.It has smooth surface, bright color.It is an ideal product for Flame Retardant Resins application of automobiles, airplanes, ships, industry and home.

Application
Its mainly used to cover the wires,cables,wire harness,pipes and industrial hoses where additional protection and high flame retardant are required.

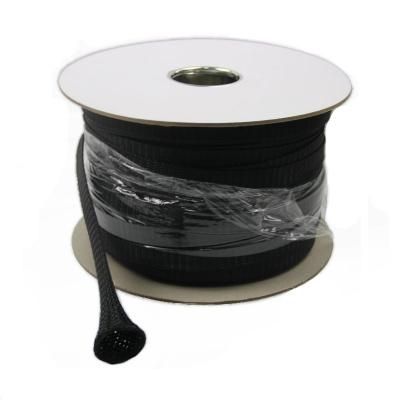

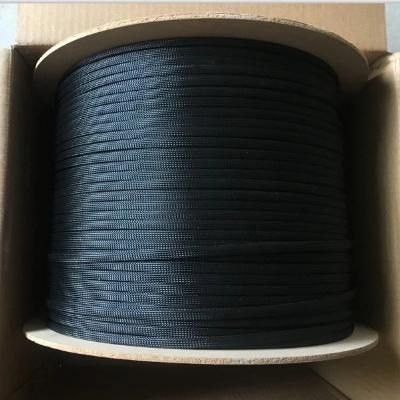

Packing



Customers' Review

Company information
