• Model NO.：ZC
• Body Material：Nylon Plus Fiber Glass
• Connecting Teeth：Aluminum or Copper
• IEC Standard：Nfc33-041
• Transport Package：200pcs,carton
• Specification：CE
• Trademark：ZHC
• Origin：China
• HS Code：85369090
• Production Capacity：200000pcs,month

Basic Info.

Model NO. ZC Body Material Nylon Plus Fiber Glass Connecting Teeth Aluminum or Copper IEC Standard Nfc33-041 Transport Package 200pcs/carton Specification CE Trademark ZHC Origin China HS Code 85369090 Production Capacity 200000pcs/month

Product Description

Features of Insulated Piercing Connector IPC for LV OH Service Cable NFC Standard :
1.Certificate: CE,ISO9001,NFC
2.Simple Installation
3.Economical Cost
4.Safe useAdvantage:

(1) IPC ( insulating piercing clamp) are suitable for connecting hign-low voltage insulating line which quote tap line from the main line, or connecting the jumping conductor between the two tension phase.

(2) Insulation connector/piercing connector/insulation piercing connector(IPC):With specially designed contact teeth and special insulation plastic cover.

(3)All components are connected with the flame of fire-retardant properties
(4)Using corrosion-resistant shell, Anti-climate change, high-intensity ultraviolet insulation materials.


ITEM CODE	MAIN LINE(MM2)	TAP LINE (MM2)	BOLT
ZCEP	16-95	1.5-10	1
ZC2-95	16-95	4-50	1
ZC3-95	25-95	25-95	1
JBC-1	35-70	6-35	1
JBC-2	35-150	35-150	1
JBC50-240	50-240	50-240	2
IPC3.1	16-95	10-25	1
IPC3.2	70-95	70-95	1
IPC3.3	120-185	16-25	1

IPC3.4

70-185

70-185

2

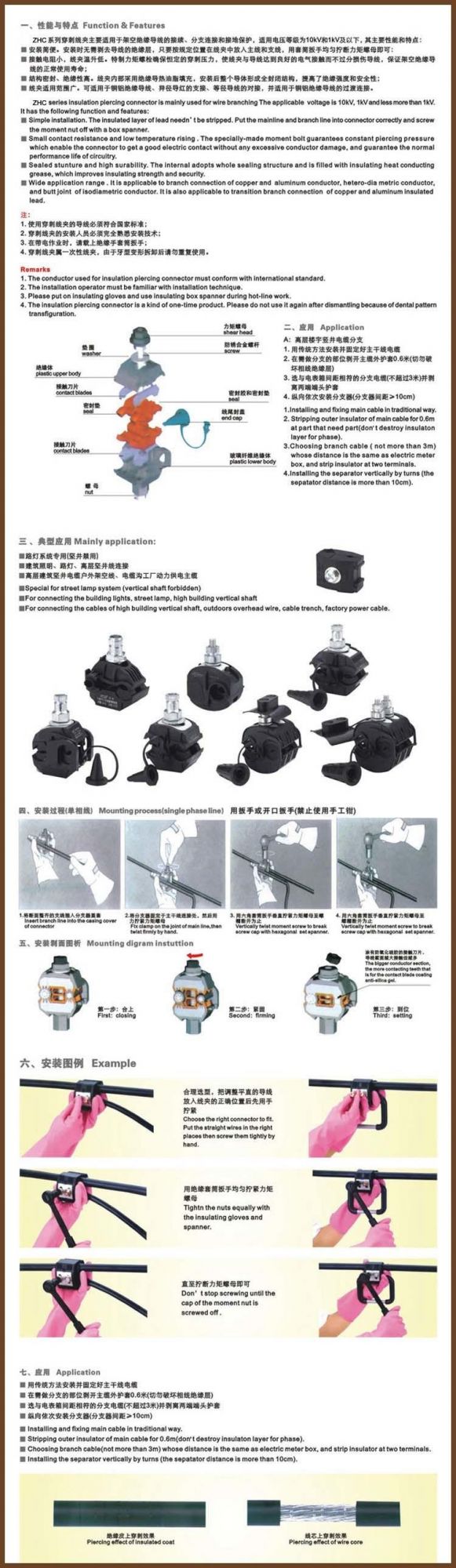

Application of Insulated Piercing Connector

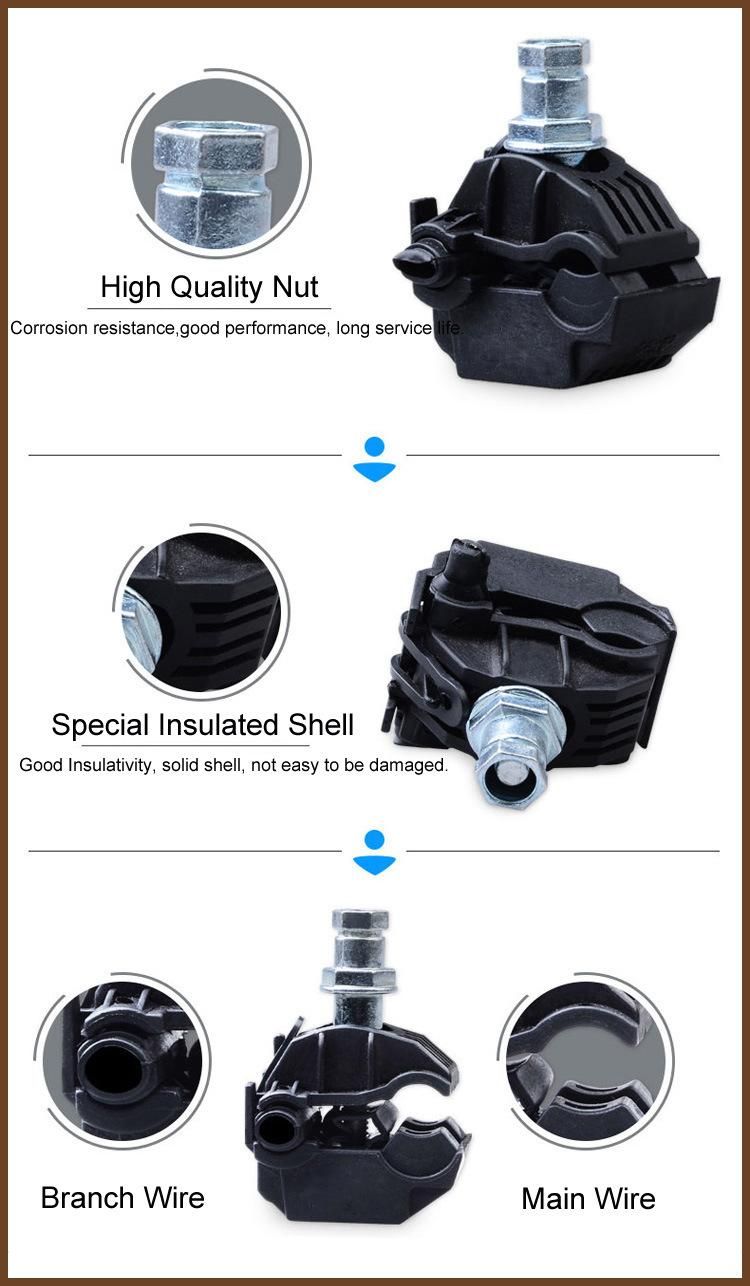

Details of Insulated Piercing Connector

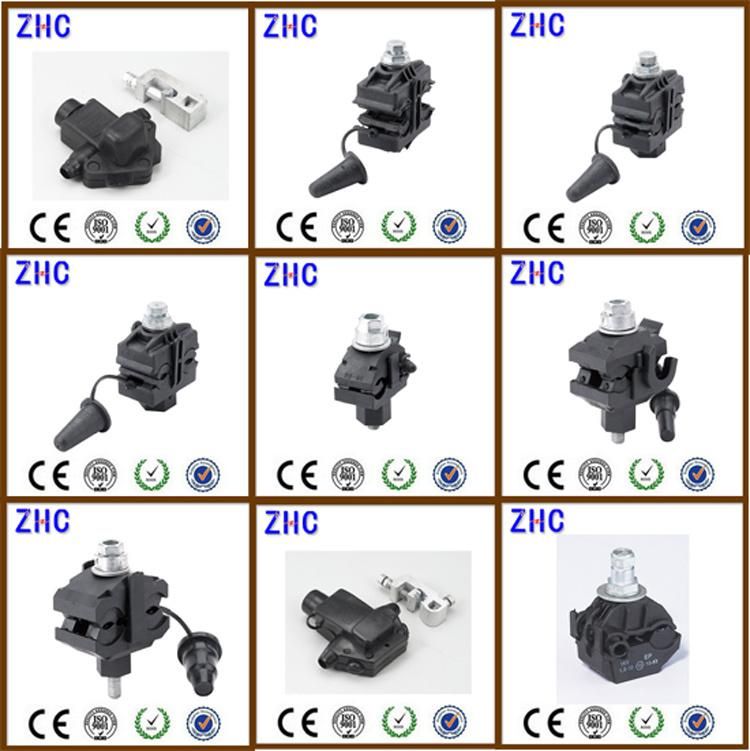

Series  of Insulated Piercing Connector

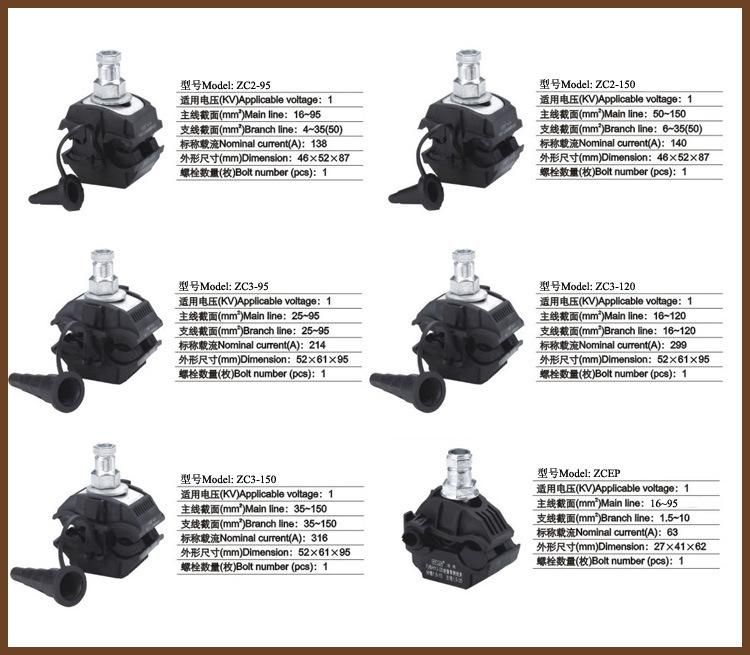

Similar products of Insulated Piercing Connector

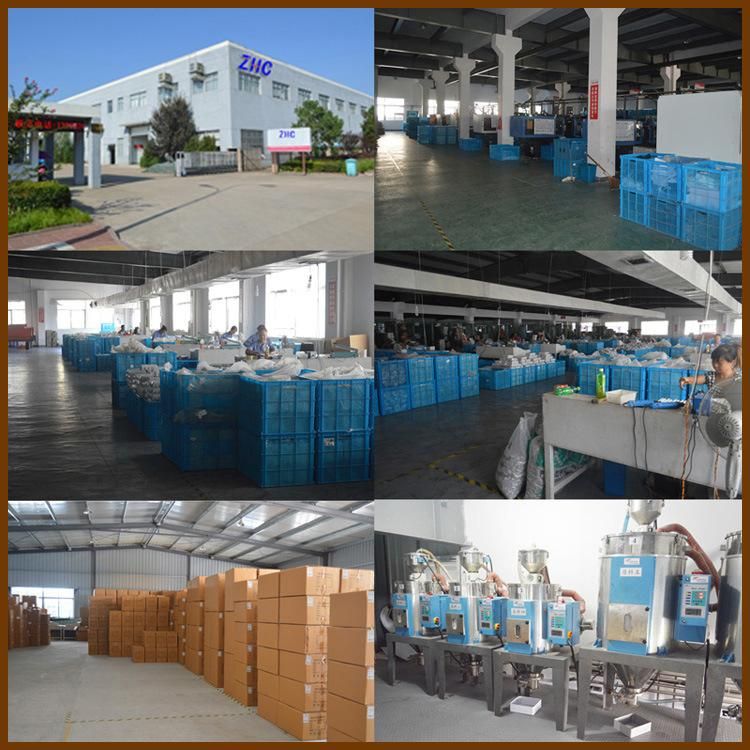

Factory of Insulated Piercing Connector

Certificate of Insulated Piercing Connector

FAQ

How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.

Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.

Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .
