• Model NO.：CT001
• Transport Package：Bundle , Plastic
• Specification：50pcs , bundle
• Trademark：CTUBE
• Origin：China
• HS Code：3917230000
• Production Capacity：100000000,Year

Resistance to compressionMinimum 1250Nt/5cmResistance to impact6J (at -25ºC)Minimum and Maximum application temperature-25%-+100ºCResistance to bendingRigidResistance to flame propagation:Non-flame propagating (VO rated)Colour:GreyResistance to UV:Extreme resistance to UV radiation



Marking:

Information to be marked on conduits:

a) The name of the manufacturer or responsible vendor, or a trademark, or other identifying symbol;

b) The nominal size;

c) The word 'ELECTRICAL', 'HEAVY DUTY' or 'HD';

d) Is marked with the letter 'T' . As per AS/NZS 2053 the standard requires that conduits suitable for use in direct sunlight be marked with the letter 'T'

e) Be marked 'Solar'.

f) Be marked above informations not exceeding 2m.



Ideal for installation in concrete and outdoor exposed installations which require increased safety measures and high mechanical requirements such as civil engineering (industry buildings, infrastructure projects) and electric power stations. Ideal solution for outdoor installations through its exceptional resistance to UV radiation. Their high impact strength, at low temperature environment, make them also ideal for cold weather conditions.

SpecificationCode NO.Outer diameter
(mm)Inner diameter
(mm)Packing
(pcs/bundle)20mmCT-HDGSRC2020151025mmCT-HDGSRC252519.61032mmCT-HDGSRC323226.21040mmCT-HDGSRC404033.4550mmCT-HDGSRC505042.6563mmCT-HDGSRC6363 5

Remarks: can be customized thickness and color

4. Company profile

We are one of the most professional plastic conduit manufacturers in ChinaSpecializing in the development and production of innovative plastic conduits and fittings for cable management and protection.
In China, Ctube has become a leading provider of pipeline solutions and national high-tech enterprises, successively participated in the compilation of China Architectural Decoration Association cbda standards "Residential Interior Decoration Engineering Quality Acceptance Standard "," Residential Decoration Engineering Construction Technical Specification" and "Healthy Home Interior Decoration Technical Specification" and so on, continuously promote the standardization and standardization of products and applications in the pipeline field! We constantly design and innovate, through the development of plastic piping systems, to provide the most demanding application areas with safe supporting solutions and services, to gain the confidence of customers, installers and consumers in depth.

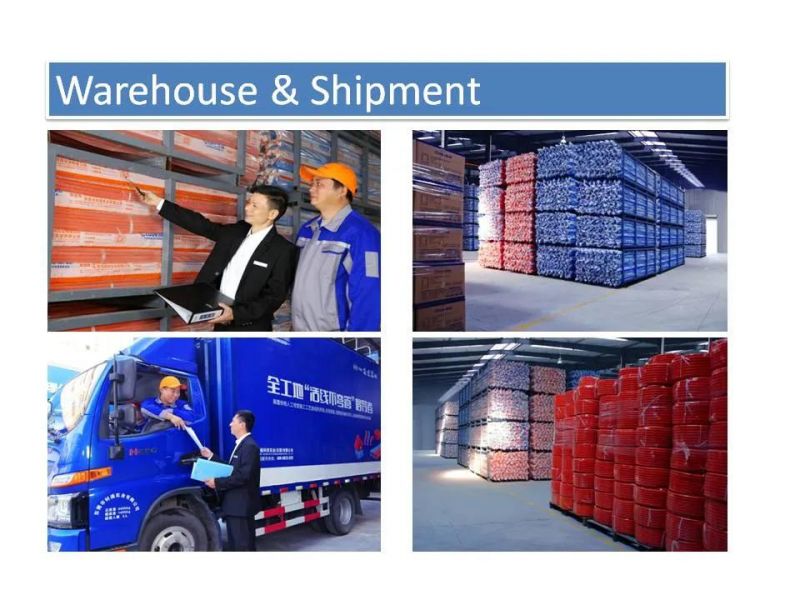

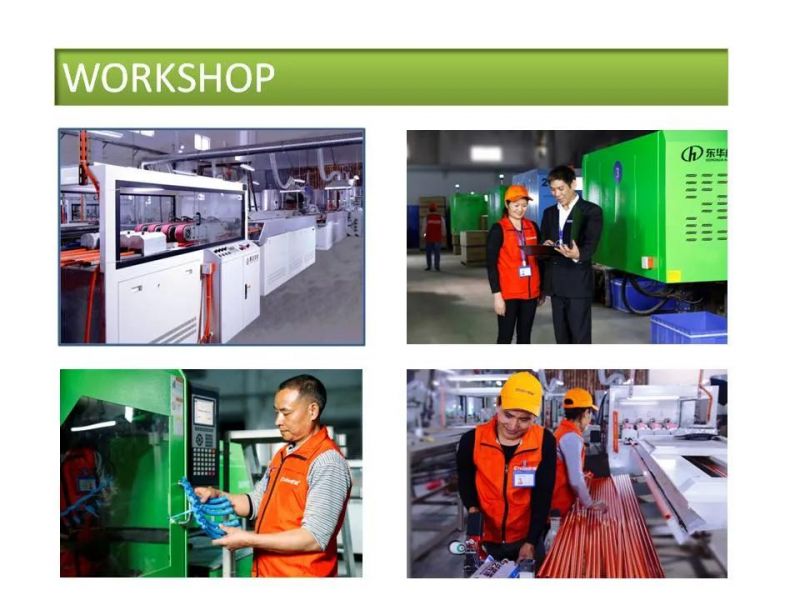

5. Warehouse & shipment &workshop
