EPDM Cold Shrink Tube for Communication Cable Connector
Suzhou Volsun Electronics Technology Co., Ltd.- Certification：RoHS, ISO
- Color：Black
- IP Rating：IP68
- Usage：HDMI Cable
- Material：Rubber
- Type：Cold Shrinkable
Base Info
- Model NO.：RUBLS-EPDM
- Application：Coaxial Cable
- Sample：Free Sample
- Brand：Volsun
- Tensile Strength：11.8MPa
- Tear Strength：38.6 N,mm
- UV Resistant：UV Irradiation for 1000 Hours Without Aging
- Shore Hardness：49A
- Transport Package：Standard Carton Package
- Specification：RoHS
- Trademark：VOLSUN
- Origin：China
- HS Code：8547909000
- Production Capacity：1, 000, 000 PCS,Week
Description
Structure

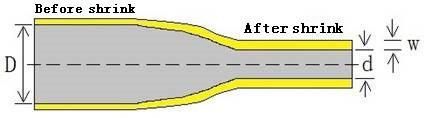

Dimensions
| 3M Spec. | Volsun Spec. | Expanded (mm) | Min. Cable Outer Diameter (mm) | Max. Outer Diameter (mm) | Max. Cable Length (mm) | Recovered Length (mm) |
| 8423-6 | 2320-6 | ID20 | 7.8 | 14.3 | 51 | 152 |
| 8425-8 | 2525-8 | ID25 | 10.1 | 20.9 | 76 | 203 |
| ----- | 2632-9 | ID32 | 13 | 25.4 | 127 | 229 |
| ----- | 2632-11 | ID32 | 13 | 25.4 | 178 | 279 |
| 8426-9 | 2635-9 | ID35 | 13.9 | 30.1 | 127 | 229 |
| 8426-11 | 2635-11 | ID35 | 13.9 | 30.1 | 178 | 279 |
| 8427-6 | 2740-6 | ID40 | 17.5 | 35.1 | 51 | 152 |
| 8427-12 | 2740-12 | ID40 | 17.5 | 35.1 | 203 | 305 |
| 8427-16 | 2740-16 | ID40 | 17.5 | 35.1 | 305 | 406 |
| 8428-6 | 2853-6 | ID53 | 24.1 | 49.2 | 51 | 152 |
| 8428-12 | 2853-12 | ID53 | 24.1 | 49.2 | 203 | 305 |
| 8428-18 | 2853-18 | ID53 | 24.1 | 49.2 | 356 | 457 |
| 8429-6 | 2970-6 | ID70 | 32.2 | 67.8 | 51 | 152 |
| 8429-9 | 2970-9 | ID70 | 32.2 | 67.8 | 127 | 229 |
| 8429-12 | 2970-12 | ID70 | 32.2 | 67.8 | 203 | 305 |
| 8429-15 | 2970-15 | ID70 | 32.2 | 67.8 | 279 | 381 |
| 8429-18 | 2970-18 | ID70 | 32.2 | 67.8 | 356 | 457 |
| 8430-9 | 3104-9 | ID104 | 42.6 | 93.7 | 127 | 229 |
Packing
Certificate
Customers & Exhibitions
