Ball Self Lock Stainless Steel Zip Tie with Plastic Covered
Yueqing Yingfa Cable Accessories Co., Ltd.- Certification：RoHS, ISO, CE
- Color：Black
- Fire Rating：94V2
- Size：Various
- Material：Stainless Steel
- Type：Self-Locking Cable Tie
Base Info
- Model NO.：YFQP
- Width：4mm, 4.6mm, 7.9mm,10mm, 12mm, 15mm
- Length：100mm~1500mm
- Thickness：0.3mm
- Application：Shipbuilding Industry, Oil Pipeline, Power Indutry
- Flame Retardant：High
- Feature：High Resistance to Acetic Acid, Alkali Acid, Sulph
- Use：Indoor and Outdoor
- OEM/ODM：Accept
- Sample：Free
- Factory：Yes
- Transport Package：100PCS,Bag with Label
- Specification：all sizes are available
- Trademark：INGFA
- Origin：Zhejiang, China
- HS Code：73269090
- Production Capacity：8000, 000PCS,Week
Description
Basic Info.
Model NO. YFQP Width 4mm, 4.6mm, 7.9mm,10mm, 12mm, 15mm Length 100mm~1500mm Thickness 0.3mm Application Shipbuilding Industry, Oil Pipeline, Power Indutry Flame Retardant High Feature High Resistance to Acetic Acid, Alkali Acid, Sulph Use Indoor and Outdoor OEM/ODM Accept Sample Free Factory Yes Transport Package 100PCS/Bag with Label Specification all sizes are available Trademark INGFA Origin Zhejiang, China HS Code 73269090 Production Capacity 8000, 000PCS/WeekProduct Description

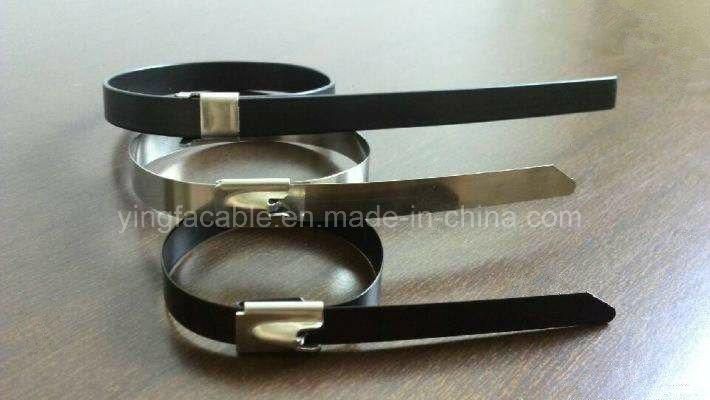

Stainless Steel Epoxy Full sprayed Cable Ties-Ball Lock TypeFeatures:
1.Material: Stainless steel 201, 304, 316, PVC coated; All length are avaibalbe.
2.They have an unique ball locking mechanism that allow easily and quickly installed and not undone.
3.High tensile strength; Non-flammability High resistance to acetic acid, alkali acid, sulphuric, corrode...Etc
4.Operating temperature: -40° C~85° C
Data Sheet:
| Part No. | Approx. Length mm(inch) | Approx. Width mm(inch) | Max. Bundle Dia.mm(inch) | Min.Loop Tensile Strength(lbs) |
| YFQP-4×150 | 150(5.9) | 4.0 | 37(1.46) | 600(135) |
| YFQP-4×200 | 200(7.78) | 4.0 | 50(1.97) | 600(135) |
| YFQP-4×250 | 250(9.84) | 4.0 | 63(2.48) | 600(135) |
| YFQP-4×300 | 300(11.8) | 4.0 | 76(2.99) | 600(135) |
| YFQP-4×350 | 350(13.78) | 4.0 | 89(3.5) | 600(135) |
| YFQP-4×400 | 400(15.75) | 4.0 | 102(4.02) | 600(135) |
| YFQP-4×450 | 450(17.72) | 4.0 | 115(4.53) | 600(135) |
| YFQP-4×500 | 500(19.69) | 4.0 | 128(5.04) | 600(135) |
| YFQP-4×550 | 550(21.65) | 4.0 | 141(5.55) | 600(135) |
| YFQP-4×600 | 600(23.62) | 4.0 | 154(6.06) | 600(135) |
| YFQP-4.6×150 | 150(5.9) | 4.6(0.181) | 37(1.46) | 600(135) |
| YFQP-4.6×200 | 200(7.78) | 4.6(0.181) | 50(1.97) | 600(135) |
| YFQP-4.6×250 | 250(9.84) | 4.6(0.181) | 63(2.48) | 600(135) |
| YFQP-4.6×300 | 300(11.8) | 4.6(0.181) | 76(2.99) | 600(135) |
| YFQP-4.6×350 | 350(13.78) | 4.6(0.181) | 89(3.5) | 600(135) |
| YFQP-4.6×400 | 400(15.75) | 4.6(0.181) | 102(4.02) | 600(135) |
| YFQP-4.6×450 | 450(17.72) | 4.6(0.181) | 115(4.53) | 600(135) |
| YFQP-4.6×500 | 500(19.69) | 4.6(0.181) | 128(5.04) | 600(135) |
| YFQP-4.6×550 | 550(21.65) | 4.6(0.181) | 141(5.55) | 600(135) |
| YFQP-4.6×600 | 600(23.62) | 4.6(0.181) | 154(6.06) | 600(135) |
| YFQP-7.9×150 | 150(5.9) | 7.9(0.311) | 37(1.46) | 800(180) |
| YFQP-7.9×200 | 200(7.78) | 7.9(0.311) | 50(1.97) | 800(180) |
| YFQP-7.9×250 | 250(9.84) | 7.9(0.311) | 63(2.48) | 800(180) |
| YFQP-7.9×300 | 300(11.8) | 7.9(0.311) | 76(2.99) | 800(180) |
| YFQP-7.9×350 | 350(13.78) | 7.9(0.311) | 89(3.5) | 800(180) |
| YFQP-7.9×400 | 400(15.75) | 7.9(0.311) | 102(4.02) | 800(180) |
| YFQP-7.9×450 | 450(17.72) | 7.9(0.311) | 115(4.53) | 800(180) |
| YFQP-7.9×500 | 500(19.69) | 7.9(0.311) | 128(5.04) | 800(180) |
| YFQP-7.9× 550 | 550(21.65) | 7.9(0.311) | 141(5.55) | 800(180) |
| YFQP-7.9×600 | 600(23.62) | 7.9(0.311) | 154(6.06) | 800(180) |
| YFQP-7.9×650 | 650(25.59) | 7.9(0.311) | 180(9.09) | 800(180) |
| YFQP-7.9×700 | 700(27.56) | 7.9(0.311) | 191(7.52) | 800(180) |
| YFQP-7.9×750 | 750(29.53) | 7.9(0.311) | 193(7.59) | 800(180) |
| YFQP-7.9×800 | 800(31.5) | 7.9(0.311) | 800(180) |

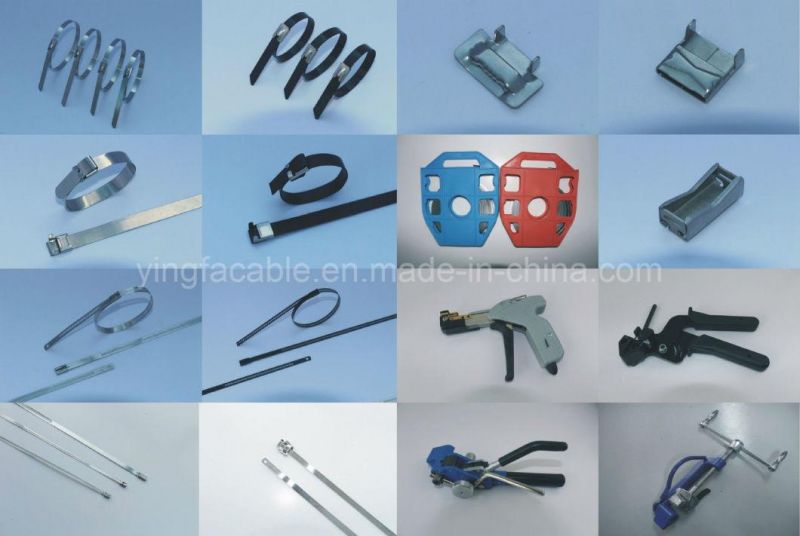

Other Related Products
Company Profile:
Yueqing Yingfa Cable Accessories Co., Ltd, is a hi-tech enterprise, occupied with a professional experts, stainless steel cable tiePlastic stuck stainless steel cable tiePlastic covered stainless steel cable tiePlastic stuck stainless steel cable tie doctors, and skilled technicians, imported foreign advanced production and test equipment, mainly manufacture nylon tie, steel nail clip, wiring cap, terminal, cable marker, spiral wrapping bands, cold compressed connector and etc.
Based on excellent quality and good reputation and complete after-service service, the products are widely exported to America, Europe, Russia, Australia, Middle East and etc, established full sale network for being based on domestic market and extending overseas, won great economic profits and social appreciation.
Yueqing Yingfa Cable Accessories Co., Ltd. With strong strength, reasonable prices, excellent service and a number of enterprises to establish a long-term relations of cooperation. Warmly welcome to visit, study, business negotiations.

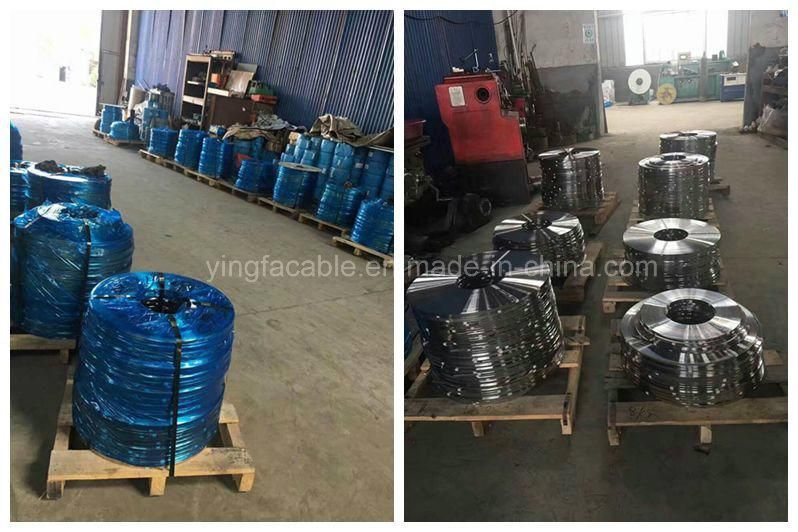

Fast Delivery time with sufficient stock

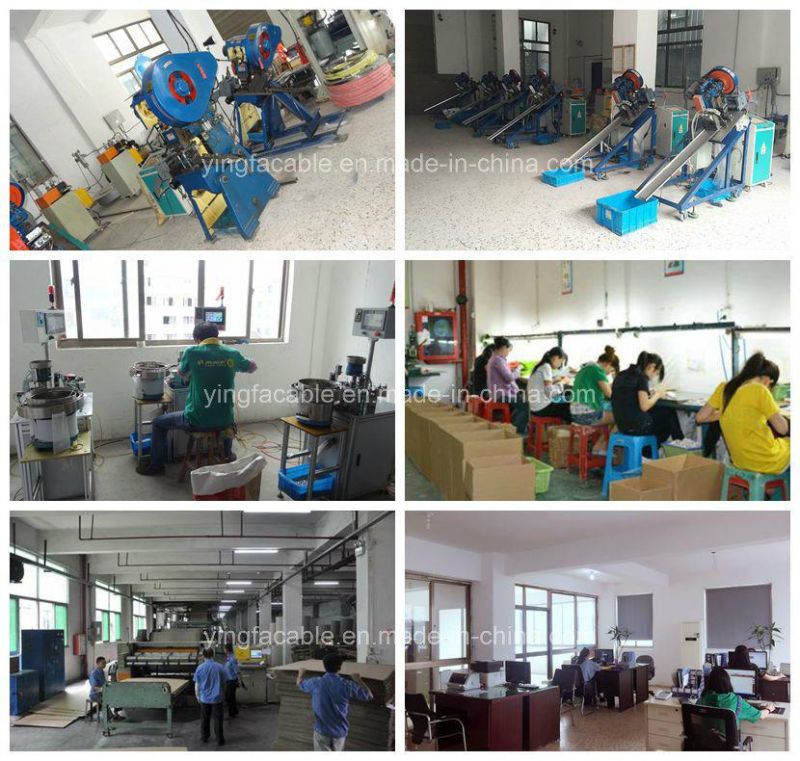

About our workshop:
