• Customized：Non-Customized
• Model Number：Flexible Conduit
• Length：From 10m to 200m According to The Diameter
• Working Temperature：-10ºC~+80ºC
• Shape：Round
• Surface：PVC Coating
• Outer Diameter：8.2mm-164.5mm
• Transport Package：Carton, Wooden Box
• Specification：CE, ISO
• Trademark：lonwow
• Origin：China
• HS Code：83071000
• Production Capacity：3000 Ton,Tons Per Month

Basic Info.

Customized Non-Customized Model Number Flexible Conduit Length From 10m to 200m According to The Diameter Working Temperature -10ºC~+80ºC Shape Round Surface PVC Coating Outer Diameter 8.2mm-164.5mm Transport Package Carton, Wooden Box Specification CE, ISO Trademark lonwow Origin China HS Code 83071000 Production Capacity 3000 Ton/Tons Per Month

Product Description

Product description

• Hot-dipped galvanized steel core with a pressure extruded PVC jacket • Smooth interior for easy wire pulling • Bi-directional • Strength and flexibility to handle stress and strain • Used in dry, damp or wet locations. • Resists sunlight, heat and chemical degradation

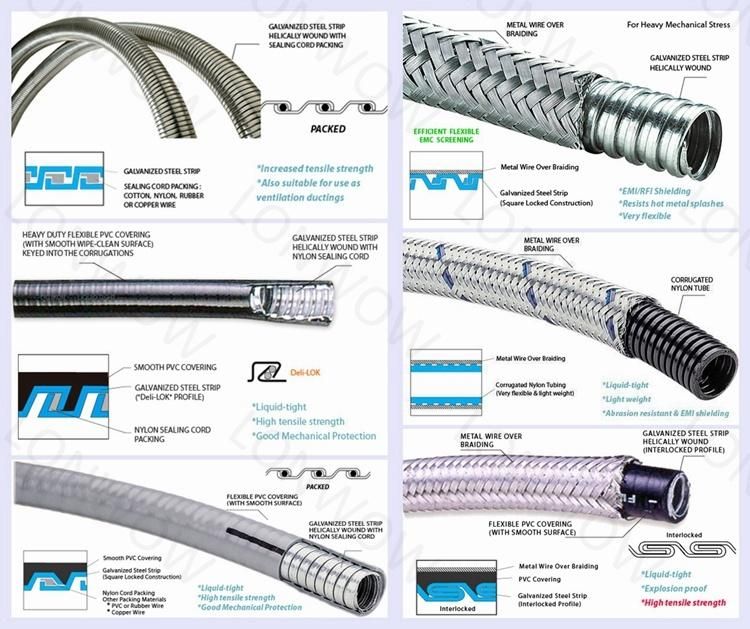

Types available

Common specification

Outer Dia Inner Dia Thickness of steel strip(Width*thickness) 20MM 16.5MM 8.6*0.22MM 25MM 21.0MM 9.5*0.22MM 32MM 27.5MM 12.7*0.25MM 43MM 38.0MM 12.7*0.28MM 52MM 46.0MM 17*0.35MM

Related products

Advantage

1.The flexible conduits have extremely good waterproof, insulating and pull resistance. 2.The surface of flexible conduits is made of PVC material, which is added with fire retarding agent. 3.The structure of flexible conduit is buckle structure, which enhances the pull resistance and is not liable to crack or deform. 4.Good bending performance. The inner smoothness makes the entry of wires very easy.

Raw Material

(inner layer)adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material(anti-UV, anti-aging). Coat Color : Black or grey Working temperature :-10ºC- +80 ºC

Why Choose Us?

Lonwow Industry Co., Ltd. is a leading company which specialized in steel pipe manufacturing and dealing with various kinds of boards, ceilings, earthwork products and insulation materials in Jiangsu Province, China. Our company brings in advanced testing & production equipment to guarantee quality precisely. With our policy of "Quality first, Customersprior and Price reasonable" we have established good relationship with the customers all over the world. Customers and friends are warmly welcome to contact and cooperate with us.

Our Services

1. 24 hours prompt reply by email 2. Other thickness & size also available on request 3. 30 years warranty (special material rate, installation in relative humidity 97% below & 050 ºC      in room, no deformation) 4. Free samples for your reference 5. Flexible terms of payment (T/T,L/C,DP and so on are all accepted) 6. Excellent after-sale service

FAQ

1. Which port do you prefer?     Answer:Shanghai Port. 2. What's your delivery time of your products?     Answer:  about 10-15days after receiving the advance payment 3. What about the terms of payment?       Answer: 30%TT advanced payment, balance seven days before shipment.     Other terms of payments also can be negotiated. 4. What's your Minimum order quantity(MOQ) of your product?     Answer: Generally, MOQ is 1x20' container. Others can contact with me directly.

For any question, please feel free to contact us!
