• Model NO.：PVC trunking
• Length：Normally Be 2.9m or 5.8m
• Package：Plastic Film Package
• Delivery：25-30days Upon Deposit
• Thickness：0.8mm 1.0mm, 1.1mm
• Item Number：PVC Trunking
• Transport Package：in Bundle, Printed Bag
• Specification：IEC, ISO9001: 2000
• Trademark：G&N, OEM
• Origin：China
• HS Code：392690
• Production Capacity：100000PCS,Day

Basic Info.

Model NO. PVC trunking Length Normally Be 2.9m or 5.8m Package Plastic Film Package Delivery 25-30days Upon Deposit Thickness 0.8mm 1.0mm, 1.1mm Item Number PVC Trunking Transport Package in Bundle, Printed Bag Specification IEC, ISO9001: 2000 Trademark G&N, OEM Origin China HS Code 392690 Production Capacity 100000PCS/Day

Product Description

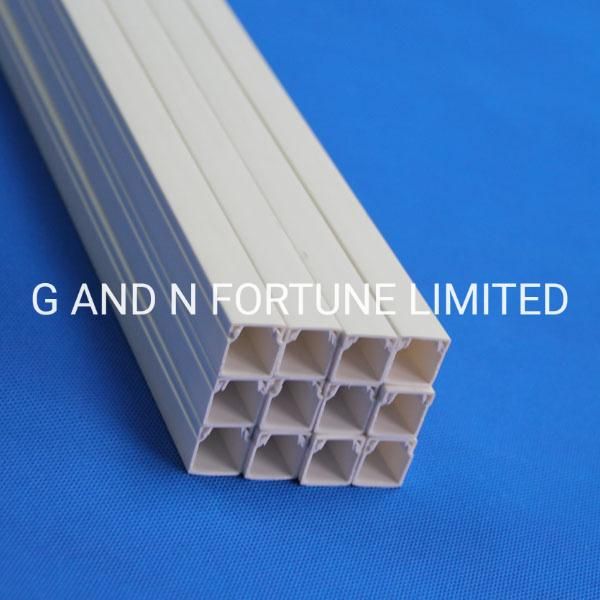

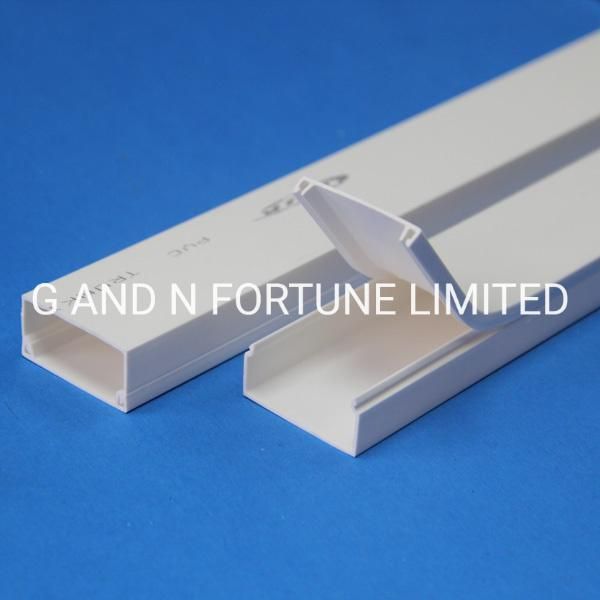

PVC Cable Trunkings PVC Trunking Square Cable Trunking

1) Size(Width X height): 16X16mm, 25X16mm...150mmx100mm
2) Thickness: 0.6mm 0.8mm, 1.0mm...5mm
3) Material: PVC.
4) Color: White/light Blue.
5) Packing: 25PCS/pack, plastic film packing.
6) Port: FOB SHENZHEN or GUANGZHOU
7) MOQ: 3000M.
8) Payment:  T/T.
9) Delivery time: Within 20 days after deposit received.
10) Uses: Electrical or construction
11) We has CE, SGS certifications.
12)FREE SAMPLES will be available always.

Features:
1) Non-conductive: Good insulation, assuring a safe system.

2) Smooth surface: Small friction coefficient to ensure the cables go through smoothly

3) Fire resistance: Self-extinguishing, do not support combustion.

4) Corrosion Resistance: Resistant to acids, bases and salts, assuring a lower maintenance cost and a longer performance life.

5) Impact strength: Resistant to compression and impact, suitable to be buried in concrete.

6) Easy Installation: Light weight, easy to cut, transport, bent and handle; Connecting by solvent cement and threading joining.

We can do OEM and ODM, we can do every model you need.

Size    ( mm )	Thickness ( mm )	Size ( mm )	Thickness ( mm )	Size ( mm )	Thickness ( mm )
10X10	0.60	25X25	0.95	60X40	1.40
15X10	0.55	30X15	0.76	60X60	1.68
15X10	0.80	30X15	0.60	75X50	1.25
16X16	0.58	38x17	0.90	75X75	1.50
16X16	0.63	38x17	0.75	75X75	1.30
16X16	0.80	40X16	0.60	80X40	1.35
16X16	1.00	40X16	0.80	80X50	1.40
18X9	0.40	40X16	1.00	80X50	1.70
20X10	0.45	40X25	0.68	99X27	0.90
20X10	0.55	40X25	0.76	99X27	1.20
20X10	0.70	40X25	1.00	100X40	1.35
22X12	0.50	40X25	1.20	100X40	1.50
22X12	0.60	40X30	1.00	100X50	1.35
22X12	0.80	40X30	1.20	100X50	1.70
23X13	0.65	40X40	1.38	100X60	1.65
23X13	0.75	50X25	1.00	100X60	1.90
24X14	0.75	50X50	1.10	100X75	1.65
24X14	0.65	50X50	1.25	100X75	2.00
25X16	0.63	59X22	1.10	100X100	1.60
25X16	0.72	59X22	0.85	100X100	2.00
25X16	1.00	60X30	1.10	150X100	2.00
25X25	0.75	60X40	1.20

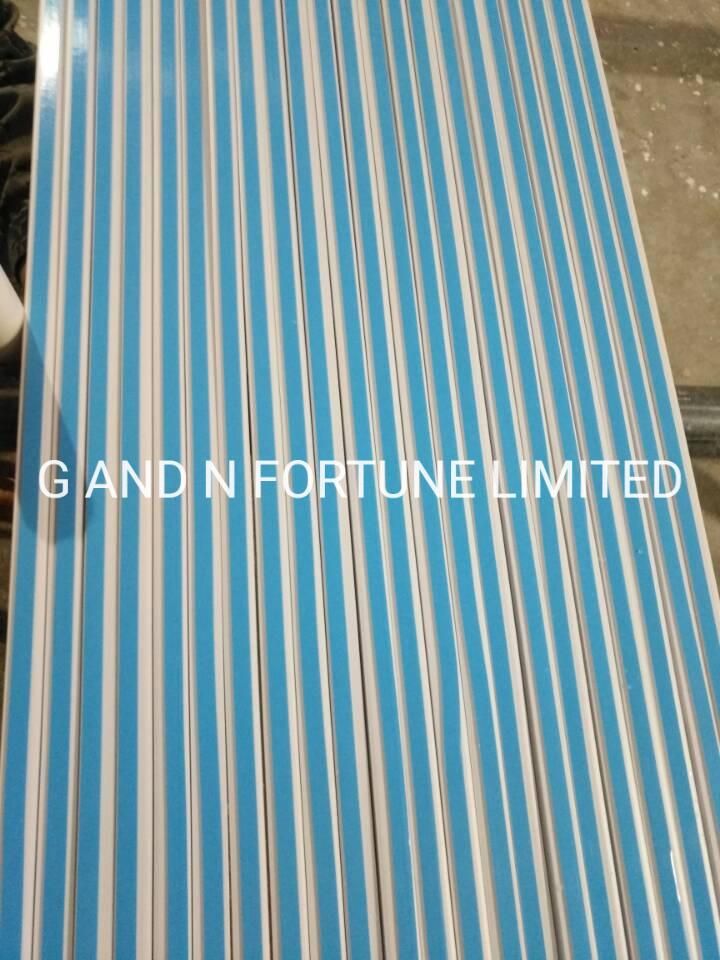

 The adhesive sticker can be high temperature resistance to 60 - 70 degree

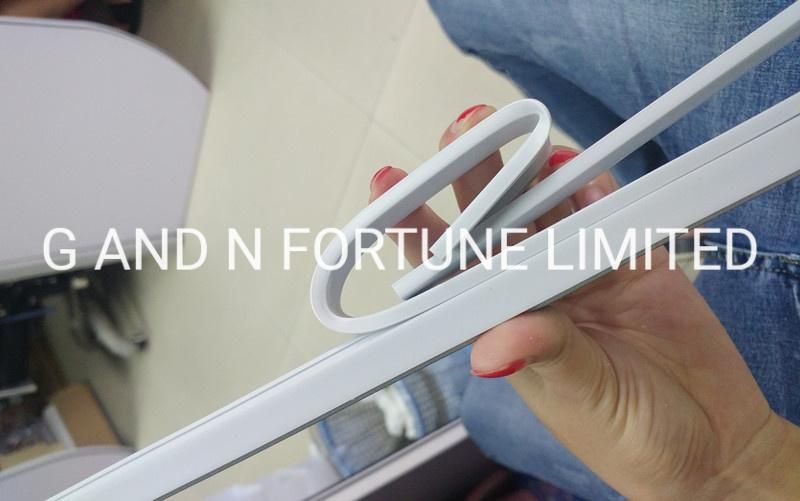

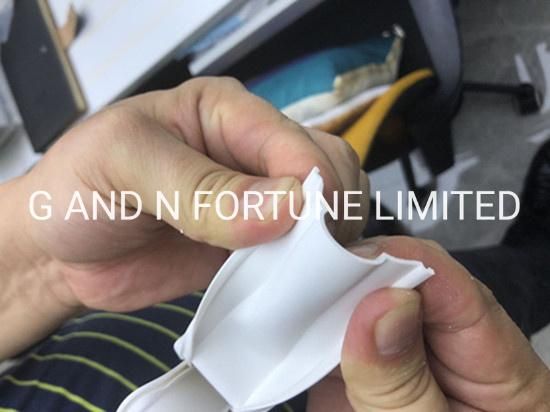

Good quality trunking---when bend, it doesn't break

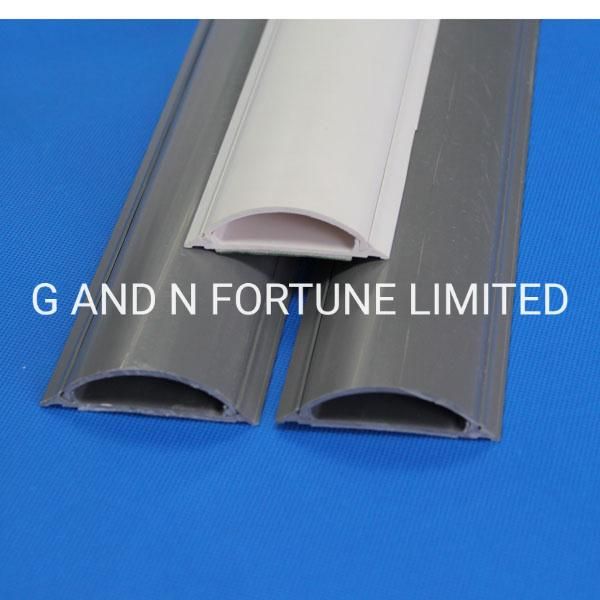

Arc Floor trunking

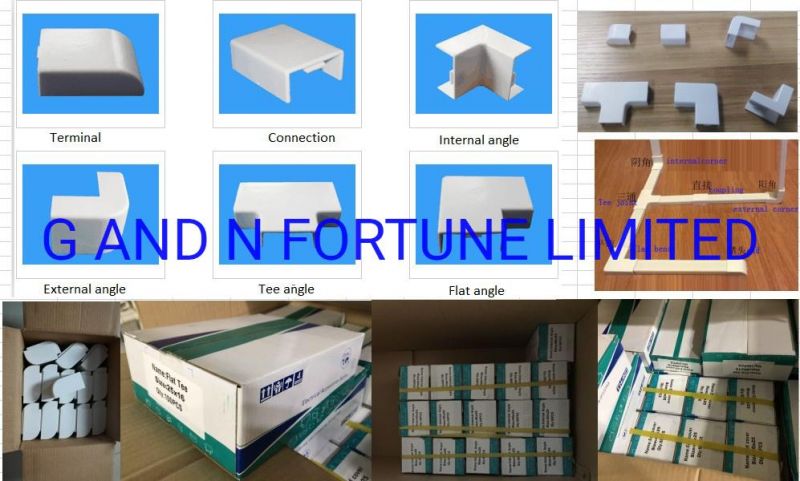

Full trunking accessories:

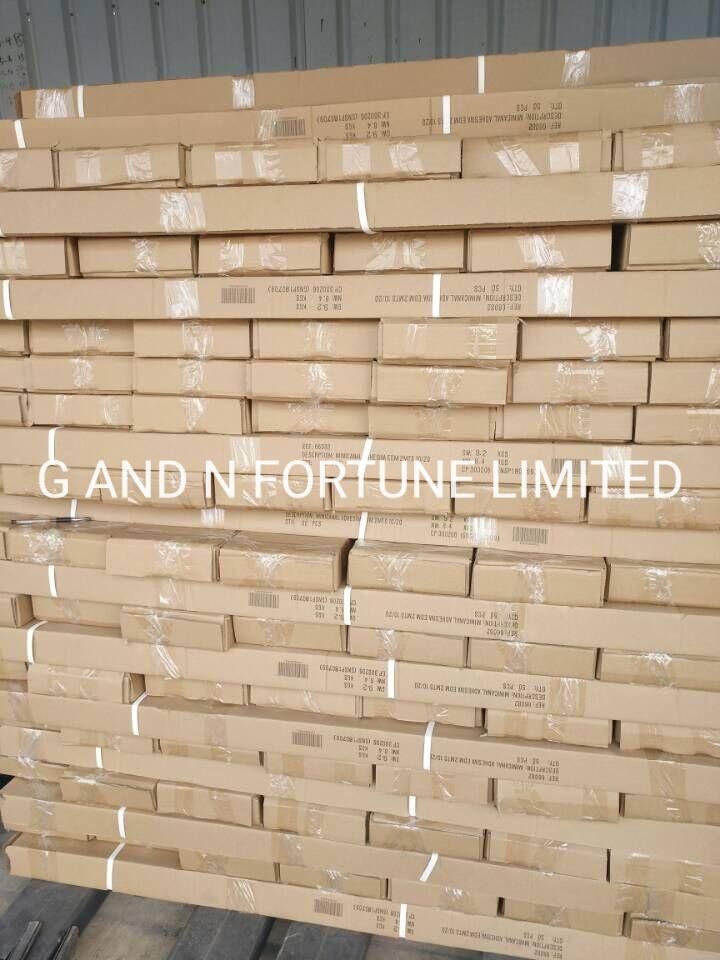

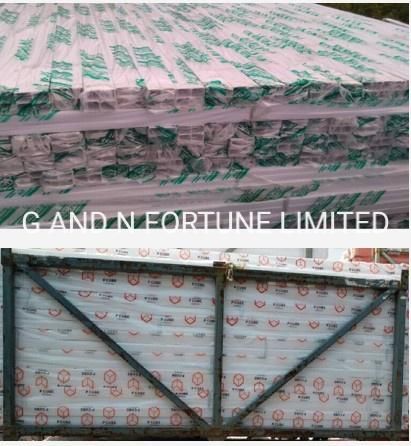

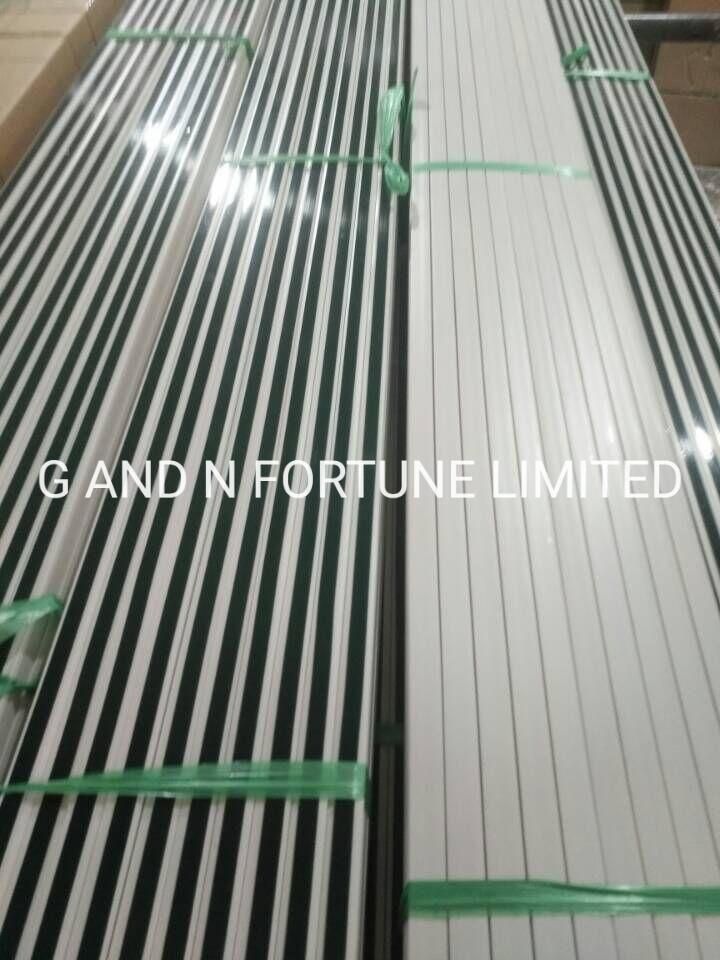

Packages:
1) Plastic bag

2) Carton package

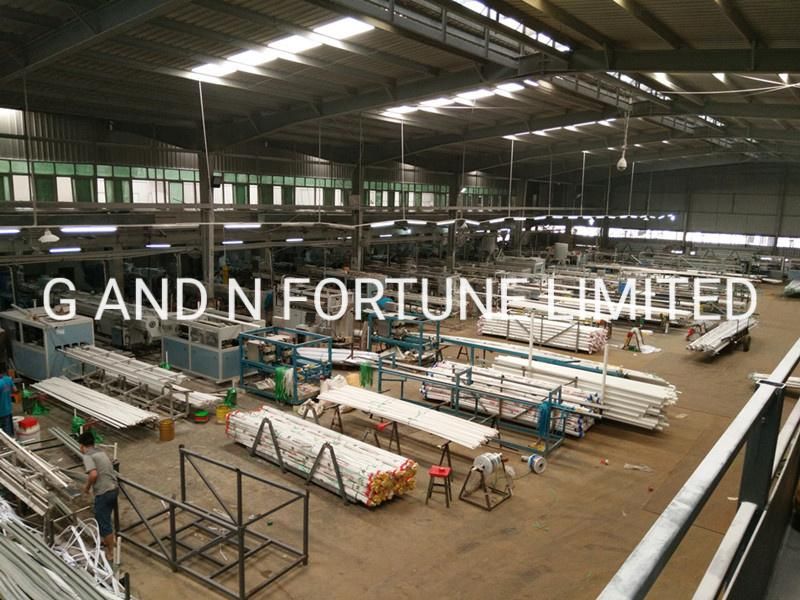

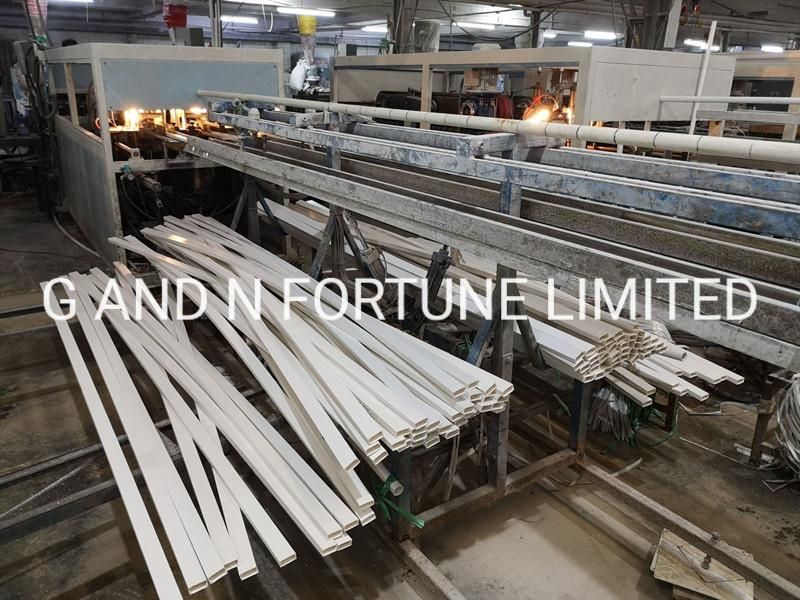

Company profileG and N Fortune China Limited has its own factory which specializes in plastic building materials and metal hardware, including PVC conduct, pipes, Galvanized metal box, PVC-U drainage pipelines and NFT hydroponics for planting. We have 20-plus assembly lines, including 30 injection machines, which greatly enhance the capacity of production which we can provide the reasonable price and fast delivery.
