• Model NO.：Fiber optic distribution box
• Mounting Method：Wall Mount,Pole Mounted
• Capacity：24 Fibers
• Adapter Type：Sc,Upc
• Accommodate：PLC 1*8 , 1*16 , 1*32 , 1*64 PLC Splitters
• Color：Black , White
• Splitter Cassette：2PCS 1*8 or 1PC 1*16
• Dimension：250X279.7X101.5mm
• Transport Package：8PCS Per Carton
• Specification：54 x 48 x 31cm
• Trademark：OEM
• Origin：China
• HS Code：85367000
• Production Capacity：5000,Week

Basic Info.

Model NO. Fiber optic distribution box Mounting Method Wall Mount,Pole Mounted Capacity 24 Fibers Adapter Type Sc/Upc Accommodate PLC 1*8 , 1*16 , 1*32 , 1*64 PLC Splitters Color Black , White Splitter Cassette 2PCS 1*8 or 1PC 1*16 Dimension 250X279.7X101.5mm Transport Package 8PCS Per Carton Specification 54 x 48 x 31cm Trademark OEM Origin China HS Code 85367000 Production Capacity 5000/Week

Product Description

Wall Mount FO Patch Panel Enclosure Fiber Access Termination Box 1* 16 ODF Fiber Splitter Box

Product Description

H029 is a plastic box that load PLC 1*8 or 1*16 splitter cassettes for fiber distribution and connection. It made of ABS plastic, light weight, suitable for outdoor wall mounted or pole mounted application. Its max. Capacity is 24 fibers.


Features

1>ABS plastic material.
2>White or black color.
3>Mechanical sealing structure.
4>Waterproof, IP66.
5>Cable port: 4pcs cable gland PG19 suitable for Φ12-15mm cable entry, and 1pc Φ20mm reserved hole.
6>With 1pc OST-050 splice tray, max. 24 fibers .
7>Can load 2pcs 1x8 or 1pc 1x16 splitter cassette.
8>Outdoor wall mounted, pole mounted application.


Application

1.The telecommunication network, metropolitan area network, optical fiber communication system;
2.Optical testing equipment/instrument;
3.CATV optical fiber, optical fiber sensor;
4.Optical fiber broadband access network, FTTH optical fiber;
5.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.

Technical Specification


Model	Dimension	Material	Capacity	Splitter cassette	Application
OTB-H029	250x279.7x101.5mm	ABS	24 fibers	2pcs 1*8 or 1pc 1*16	Outdoor wall mounted or pole mounted

Accessories


Item	Specification	Qty
Heat shrinkable protection sleeve	40x2.6x1.2mm	24pcs
Cable tie	3*120mm, white color	6pcs
Screws	C type 4*30, metal	3pcs
Plastic expansion pipe	Φ6mm, white color	3pcs
Key	ABS plastic, white color	1pc

Optional Accessories

Item	Specification	Qty
Pole mounted kit	12*620mm stainless tape	2pcs

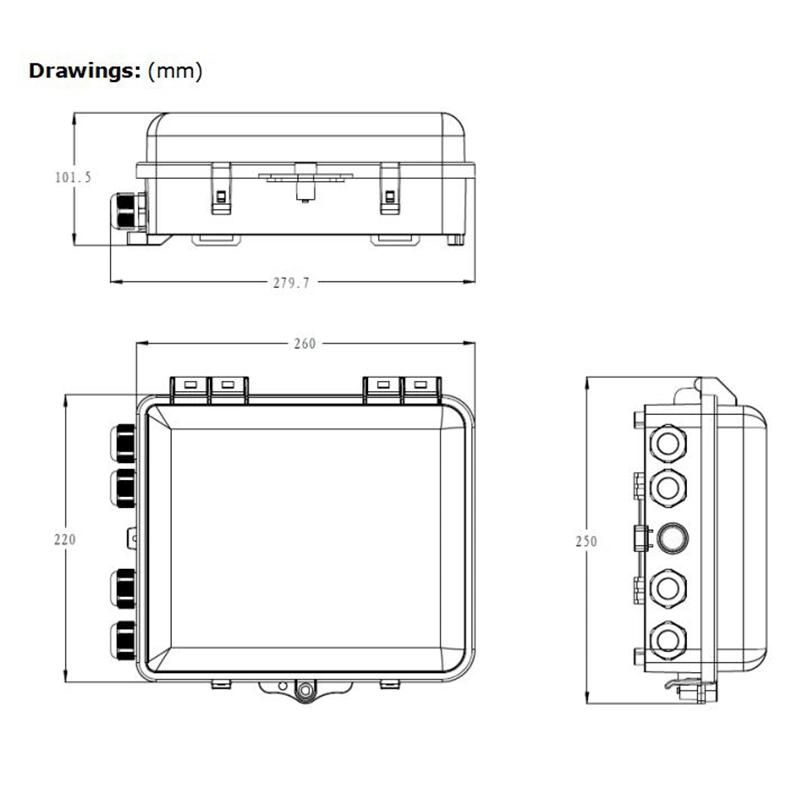

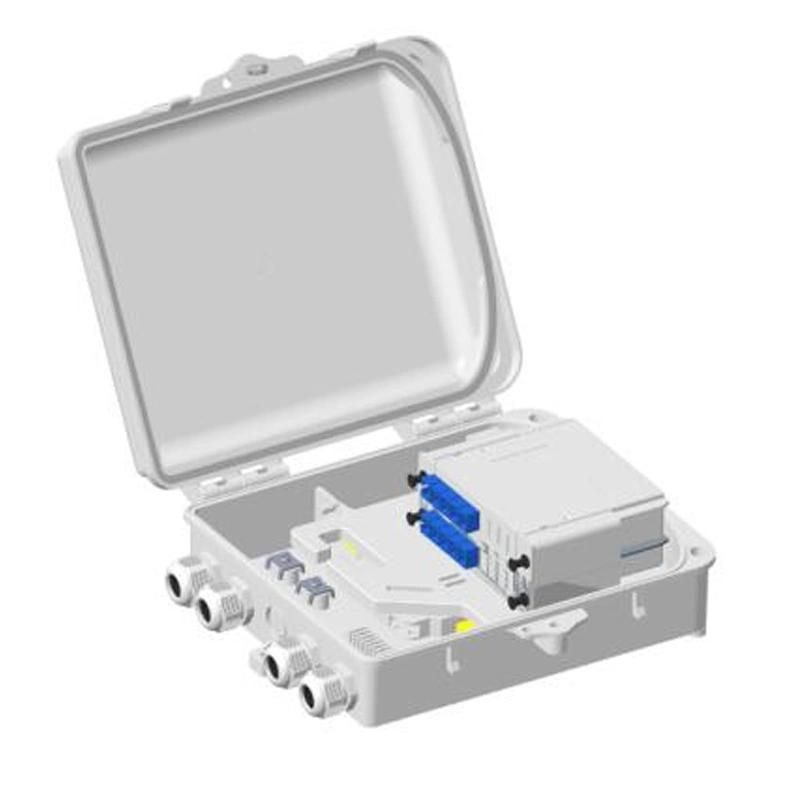

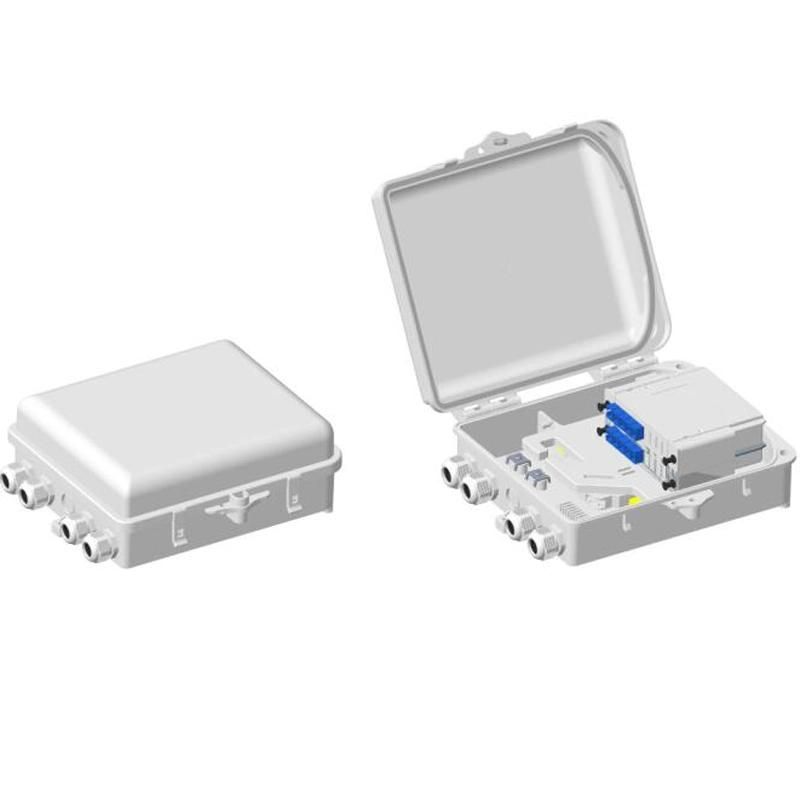

Product figure

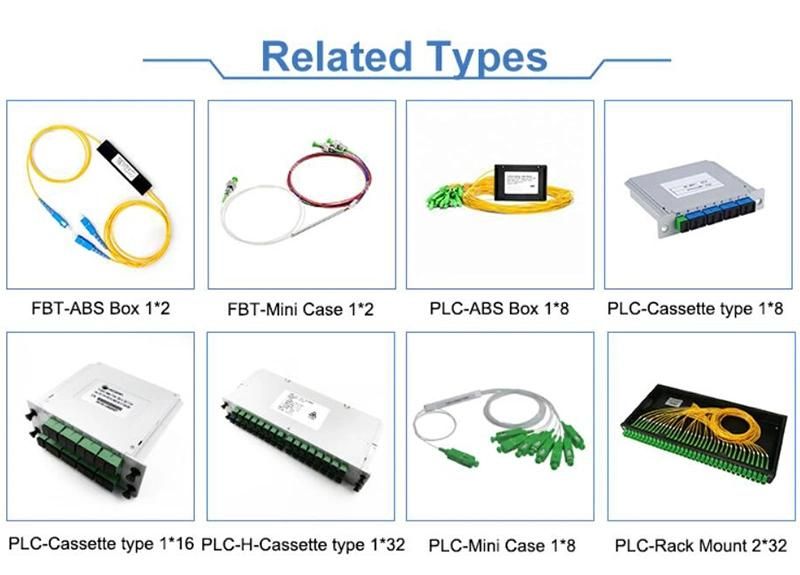

Related Products

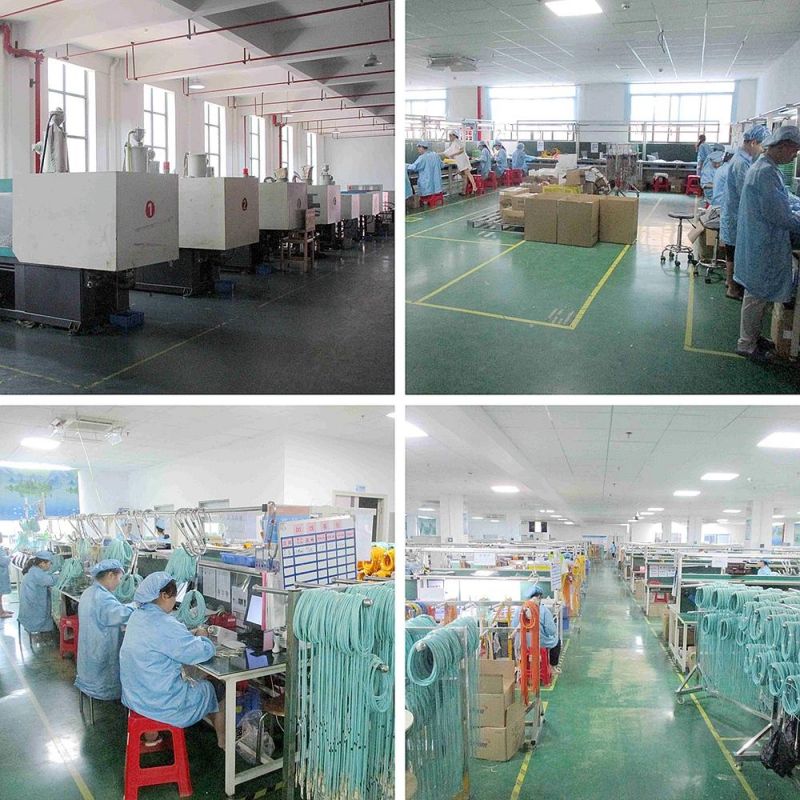

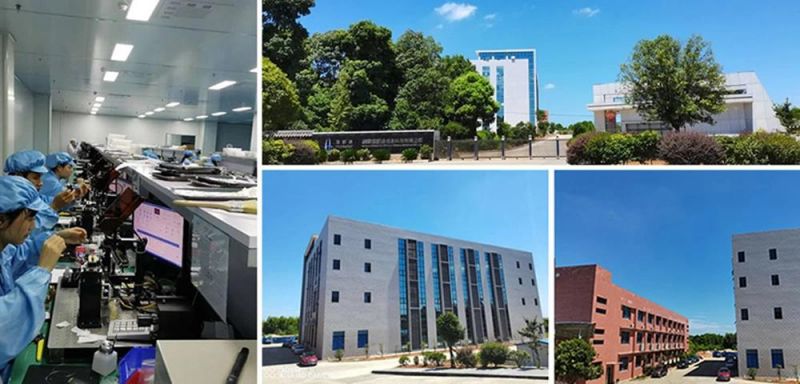

Company Profile

Certifications
Packaging & Delivery

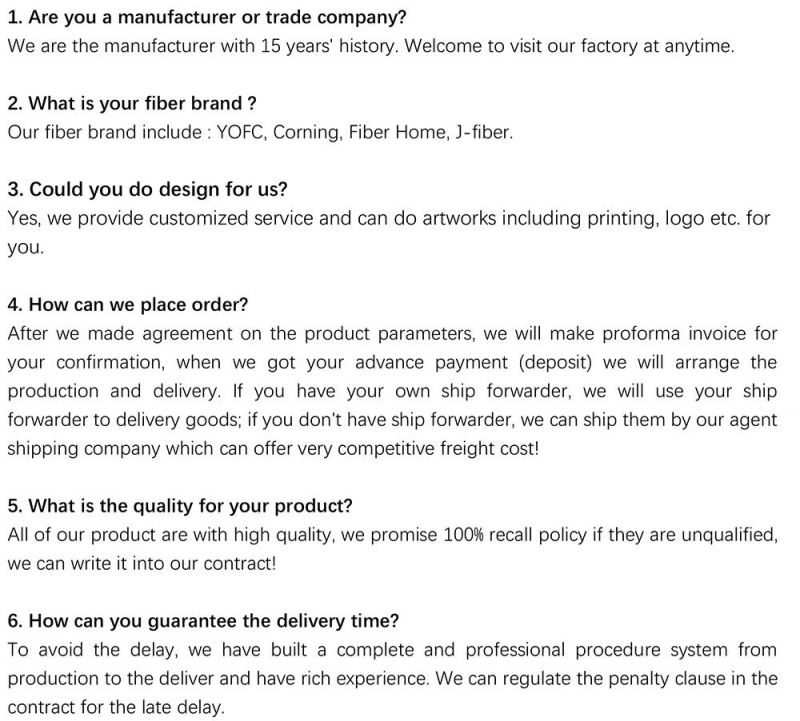

FAQ
