3mm Polyester Pet Self-Closing Multicolor Braided Sleeving for Post-Termination Cable Organisation
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS, ISO, Halogen Free
- Color：Black
- IP Rating：IP65
- Usage：High-Speed Rail,Auto,Automation Equipment
- Material：Polyester Mutifilament
- Type：Spiral Wrapping
Base Info
- Model NO.：BS-SCW003
- Classification：Split Braided Sleeve
- Standard Color：Multicolor
- Available Size：3mmid~50mmid
- Flammability：UL94 VW-1
- Abrasion Resistance：Medium
- Tensile Strength - Yarn (ASTM D-2265) Lb：7.5
- Sample：Avaliable
- Condition：New
- Customization：Pre-Cutting, Package
- Transport Package：25m,Roll
- Specification：50mm ID
- Trademark：EKO
- Origin：Fujian, China
- HS Code：5909000000
- Production Capacity：2000000 Meters,Week
Description
Basic Info.
Model NO. BS-SCW003 Classification Split Braided Sleeve Standard Color Multicolor Available Size 3mmid~50mmid Flammability UL94 VW-1 Abrasion Resistance Medium Tensile Strength - Yarn (ASTM D-2265) Lb 7.5 Sample Avaliable Condition New Customization Pre-Cutting, Package Transport Package 25m/Roll Specification 50mm ID Trademark EKO Origin Fujian, China HS Code 5909000000 Production Capacity 2000000 Meters/WeekProduct Description

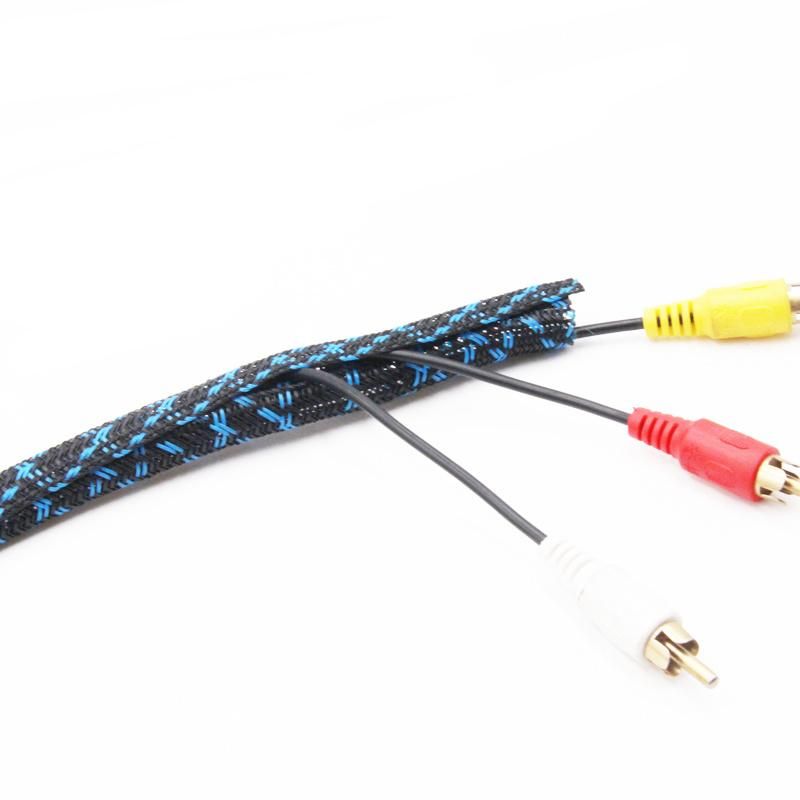

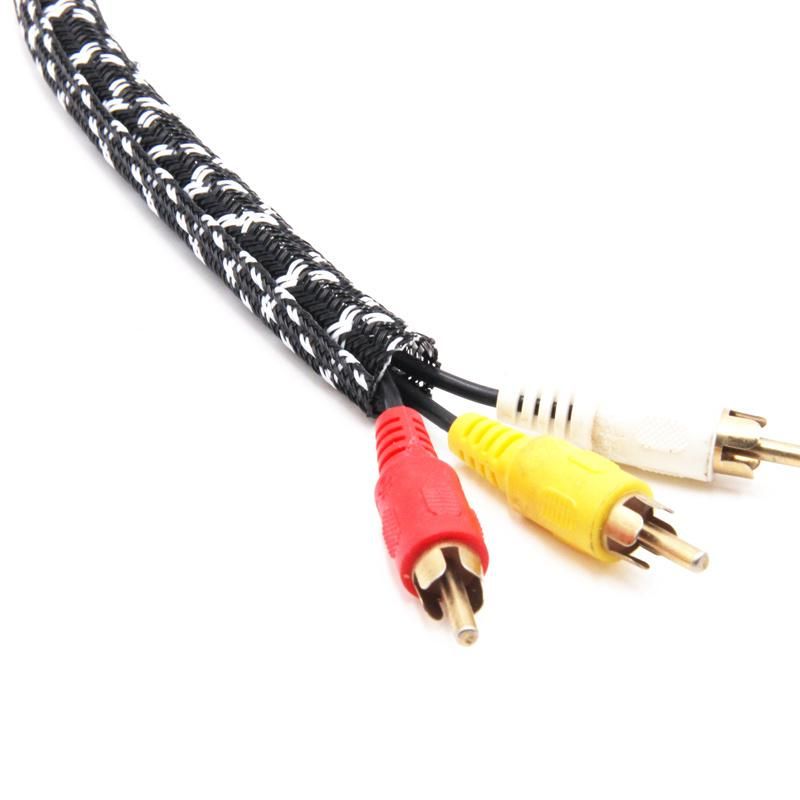

3mm Polyester PET Self-Closing Multicolor Braided Sleeving for Post-Termination Cable Organisation
| Product Type | 3mm ROHS Polyester Self-closing Sleeving for Post-termination Cable Organisation |
| Material | Polyester Monofilament |
| Size | 3mm ID |
| Color | Black, White, Grey and Colorful Customized |
| Packaging | 100m/Roll |
| Operating Temperature | -50°C~+150°C |
| Melt Point | 240°C+-10°C |
| Flammability | UL94 VW-1 |
| Certification | ROHS, CSA, UL, Halogen Free |
| Cutting Tool | Scissors or Hot Knife |
Feature:
1. Easy, cost and labor effective installation
2. More flexible than split convoluted or spiral wrap
3. 25% edge overlap
4. Cut and abrasion resistant
5. Halogen free
6. Retains shape and rigidity throughout -50º C to 150º C temperature range
7. Melt temp. 250º C
Application:

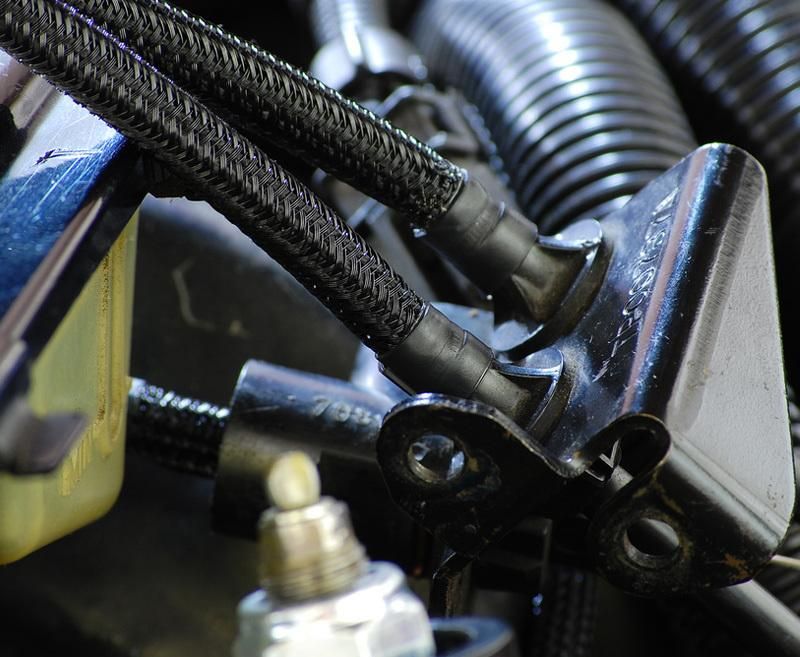

It's ideal for application in wire harness, automatic equipments, railways, general manufacturing industry where wires and tubes need a tough and durable protection.

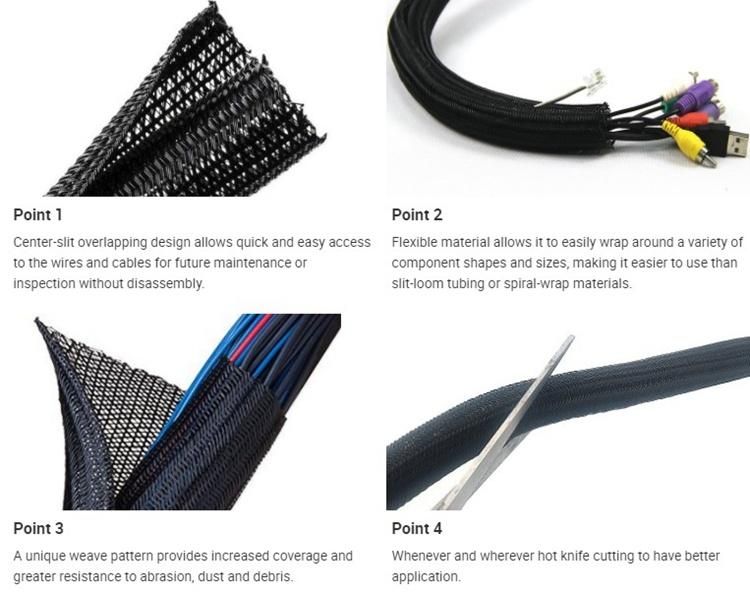

What are advantages of PET Braided Wrap Around Sleeving?
What is the change after using PET Braided Wrap Around Sleeving?
Specifications
| Part No | Inner Diameter | Overlap | Max Bundle Dia | Packing (L) |
| BS-SCW003 | 3mm | 25% | 4mm | 200m/Roll |
| BS-SCW006 | 6mm | 25% | 7mm | 200m/Roll |
| BS-SCW009 | 9mm | 25% | 10mm | 100m/Roll |
| BS-SCW013 | 13mm | 25% | 14mm | 50m/Roll |
| BS-SCW019 | 19mm | 25% | 20mm | 25m/Roll |
| BS-SCW025 | 25mm | 25% | 26mm | 25m/Roll |
| BS-SCW032 | 32mm | 25% | 33mm | 25m/Roll |
| BS-SCW038 | 38mm | 25% | 40mm | 25m/Roll |
| BS-SCW050 | 50mm | 25% | 52mm | 25m/Roll |

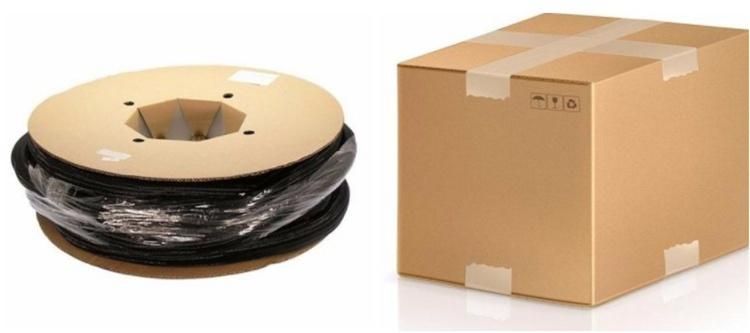

Packing
