ADSS Guy Grip for 50m Span
Qingdao Powtech Electronics Co., Ltd.- Certification：RoHS, ISO, CE
- Color：Silver
- Surface Treatment：Galvanised
- Usage：Heavy Duty Clamp
- Material：Aluminium Clad Steel
- Structure：Preformed Dead End
Base Info
- Model NO.：ANZD
- Standard：Standard
- Condition：New
- Transport Package：Carton
- Trademark：Powtech
- Origin：China
- HS Code：73269000
- Production Capacity：1000PCS,Day
Description
Basic Info.
Model NO. ANZD Standard Standard Condition New Transport Package Carton Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/DayProduct Description

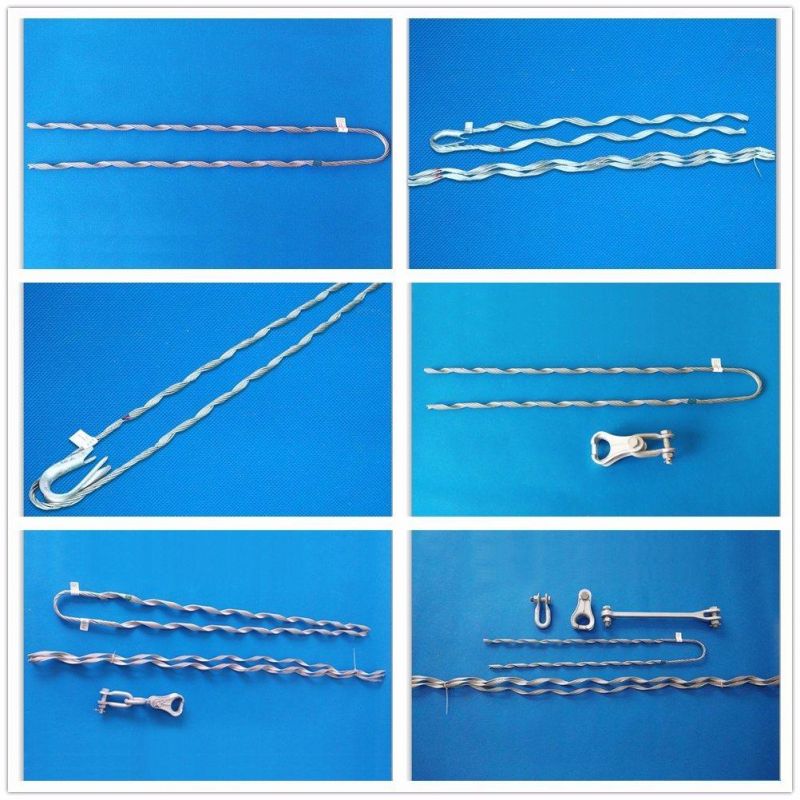

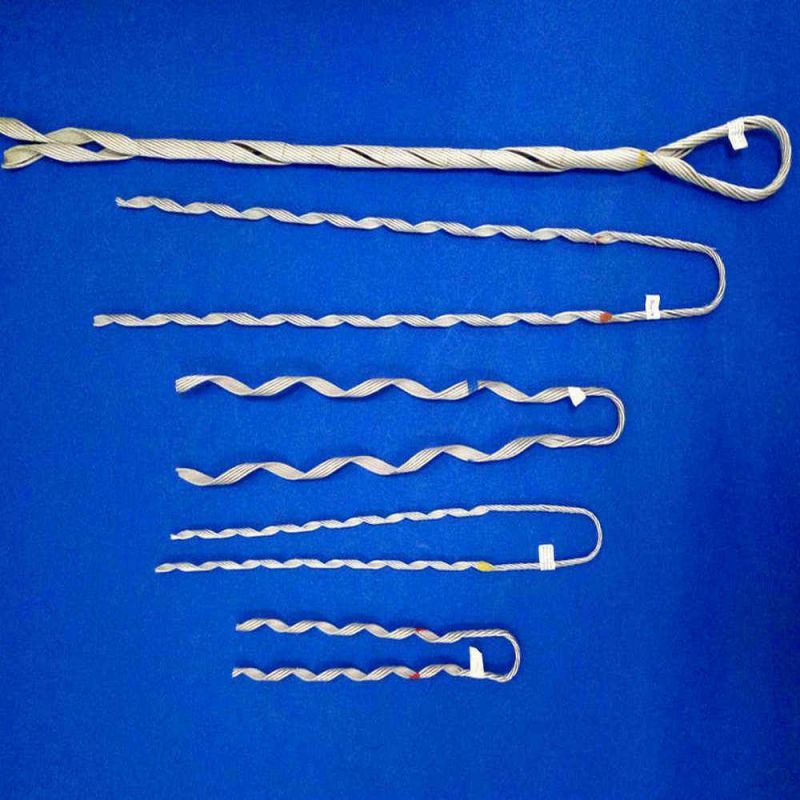

Preformed guy grips for ADSS cable

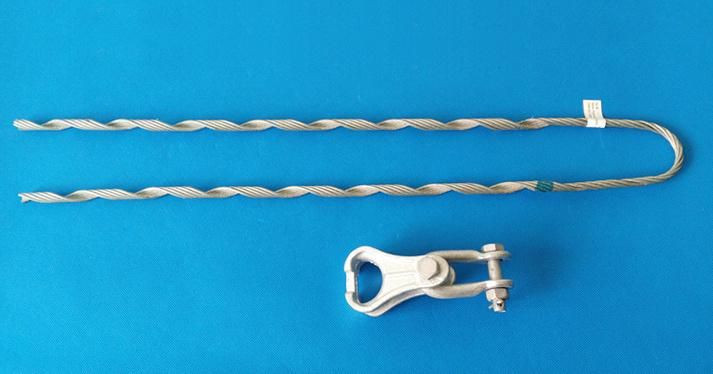

Configuration
1-Anchor shackle: forged steel
2-Clevis thimble: steel
3-Reinforcing rod: Aluminum clad steel
Description:
The ANZD series tension sets have simple and stable structure, easy to install and low price, especially designed for short span ADSS cable.
Application:
Short span length,Terminal pole tower, tension pole/tower, Pole/tower with corner angles greater than 15°and RTS no more than 10kN Suitable for city ADSS cable installation.
Technical Data:
Rated Tension Strength (RTS): 10kN
Recommended Span Length: 50m
| Product Model | Cable diameter (mm) | Reinforcing rod (mm) | Anchor Shackle |
| ANZD-50-10.0 | 9.0-10.0 | 800 | U-7 |
| ANZD -50-11.1 | 10.1-11.1 | 800 | U-7 |
| ANZD -50-12.2 | 11.2-12.2 | 800 | U-7 |
| ANZD -50-13.3 | 12.3-13.3 | 800 | U-7 |
| ANZD -50-14.4 | 13.4-14.4 | 800 | U-7 |
| ANZD -50-15.5 | 14.5-15.5 | 800 | U-7 |
| ANZD -50-16.6 | 15.6-16.6 | 800 | U-7 |
| ANZD -50-17.7 | 16.7-17.7 | 800 | U-7 |
| ANZD -50-18.8 | 17.8-18.8 | 800 | U-7 |
