Cable Parts

Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22

Yueqing Jixiang Connector Co., Ltd.
  • Certification:CCC, RoHS, ISO, CE
  • Surface Treatment:,
  • Color:Black(PAL9005) Grey(PAL7035)
  • IP Rating:IP68
  • Material:Nylon
  • Type:Straight Head

Base Info

  • Model NO.:M,PG Type
  • Holes:2-8
  • Seal:EPDM Rubber
  • Working Temperature - Ststic:-40~100, Short Time to 120
  • Working Temperature - Dynamic:-20~80, Short Time to 100
  • Factory Report:ISO90001
  • Transport Package:Standard Export Carton
  • Specification:Customization
  • Trademark:JXLJQ
  • Origin:China Mainland
  • HS Code:8547901000
  • Production Capacity:3000000PCS,Month

Description

Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22Mulit-Holes Nylon Cable GlandsAG item

Flat

(mm)

2 holes

(mm)

3 holes

(mm)

4 holes

(mm)

5 hols

(mm)

6 holes

(mm)

7 holes

(mm)

8 holes

(mm)

M12x1.5/3-1.22.6-1.22.3-1////M16x1.5/4-1.62.6-1.22.3-12.5-12-1//M18x1.56x103.5-24-1.63-1.22.6-1.52.2-1 / /M20x1.55x11.55.3-1.55-2 4.2-1.7 3-1.23-1.2 3-1.23-1.2M22x1.56x146-2.53.5-1.5 4.5-2 // / /M25x1.56x148.7-48-45-2  3.5-1.53.5-1.53.5-1.5 3.5-1.5M27x1.57x188.7-4.55-2 7-3.53.5-1.53.5-1.53.5-1.5 3.5-1.5M32x1.58x225-1010-59-4.5 8-4 7-3.5 6-3/PG7/3-1.22.6-1.22.3-1 ////PG9/4-1.62.6-1.2 2.3-12.5-1  2-1 //PG116x103.5-24-1.6 3-1.2 2.6-1.5 2.2-1 //PG13.55x11.55.3-1.53.5-1.5 4.2-1.74.2-1.7  ///PG166x146-2.53.5-1.5 4.5-2 ////PG217x188.7-4.55-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5/

More size information, kindly contact us directly.. We provide customization service !

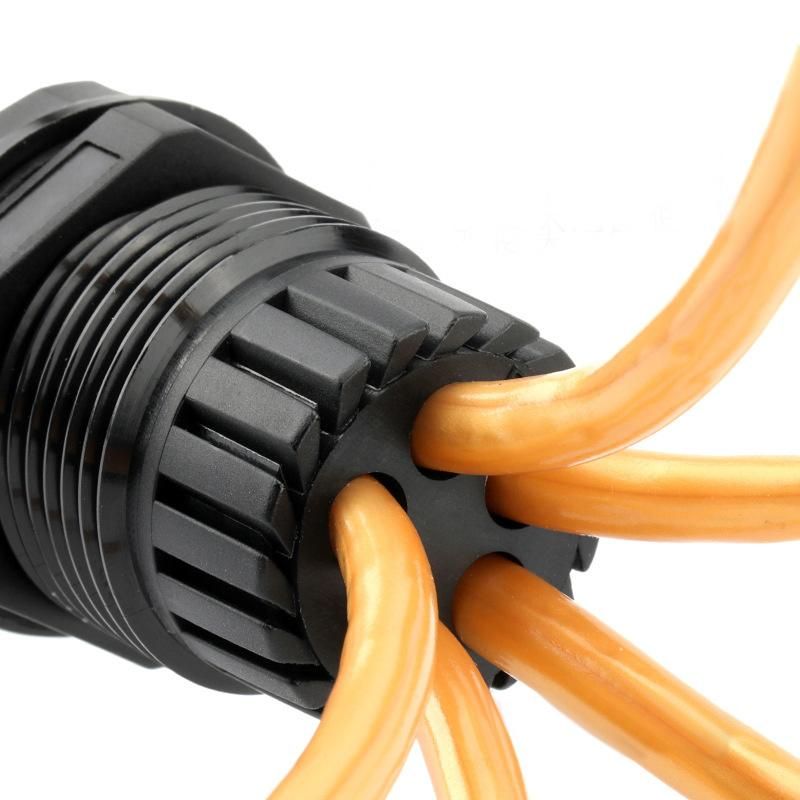

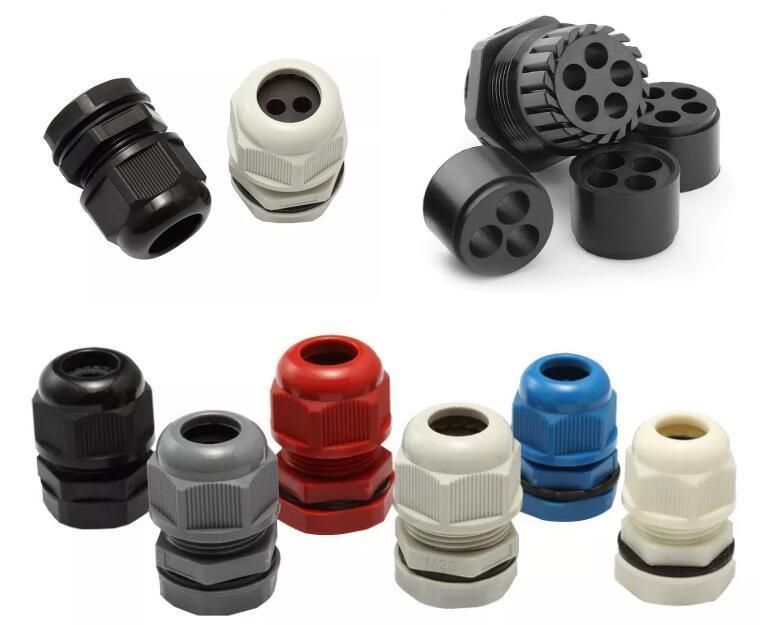

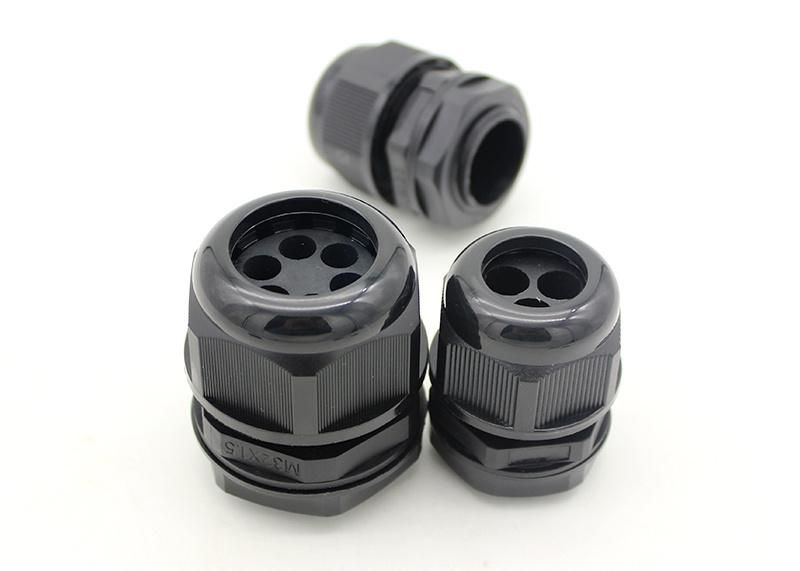

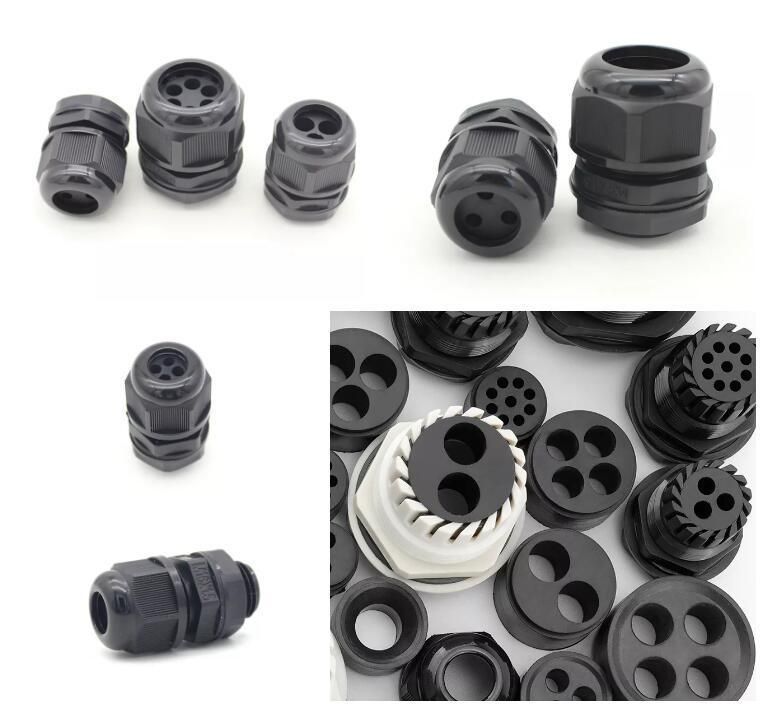

Product Details Image
Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22
Application
Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22
Product Packaging & Shipping
Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22Cable gland packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.

Certifications
Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22
Company Profile
Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22Waterproof IP68 Heat Resistant Muti Holes Cable Gland M22Customise Now

You contact us as blow to start online customization for the design you want!
