• Model NO.：RUBLS-EPDM
• Name：Replace 3m EPDM Rubber Black Cold Shrink Tubing
• Typical Use：Electrical, Communication, Mining, Commercial
• Voltage Rating：1kv or Less
• Sealing Class：IP68
• Certifications：IP68, RoHS, UV
• Diameter Shrinkable：50%
• Hs：49A
• MOQ：10 Pieces
• Sample：Free
• Delivery：Fast Express with Competitive Price
• Transport Package：Export Standard Cartons
• Specification：all 8420 series
• Trademark：VOLSUN
• Origin：China
• HS Code：85479090
• Production Capacity：10000000PCS,Year

PropertiesTypical DataTest methodHS49 AASTM D 2240-75Tensile Strength9.8 MPaASTM D412-75Elongation at break720%ASTM D412-75Tear Strength27 N/ mmASTM D624C-73Dielectric Strength14.3kV/mmASTM 149-75Dielectric Constants5.0(Initial data)/5.6(90degree in the water for 7 days))/Anti-enzyme (bacteria)The 28 day exposure without growthASTM G-21UV ResistantUV irradiation for 2000 hours without agingASTM G-53
Dimensions:
 Size
(mm)Inner Diameter D(mm)Min Cable Outer diameter  (mm)Max Cable Outer Diameter (mm)Recovered Length L(mm)VE18-3187.814.380VE18-6187.814.3152VE18-7187.814.3178VE24-8202.5420.9203VE25-72510.120.9178VE25-82510.120.9203VE25-112510.120.9279VE25-122510.120.9305VE28-5288.022.5125VE35-63513.930.1152VE35-83513.930.1203VE35-93513.930.1229VE35-113513.930.1279VE42-64216.835.1152VE42-84216.835.1203VE42-104216.835.1254VE42-124216.835.1305VE42-164216.835.1406VE42-184216.835.1457VE50-85013.543.7203VE58-65824.049.3152VE58-75824.049.3178VE58-85824.049.3203VE58-105824.049.3254VE58-125824.049.3305VE58-185824.049.3457VE58-245824.049.3610VE58HP-105820.551.0254VE65-106523.757.5254VE77-67732.267.8152VE77-77732.267.8178VE77-97732.267.8229VE77-127732.267.8305VE77-137732.267.8330VE77-147732.267.8355VE77-187732.267.8457VE77-227732.267.8550VE77HP-137727.470.0330VE105-810542.693.7203VE105-910542.693.7229VE105-1810542.693.7457VE105-2010542.693.7508VE120-2412033.0114.3610VE160-2416060.0154.0620

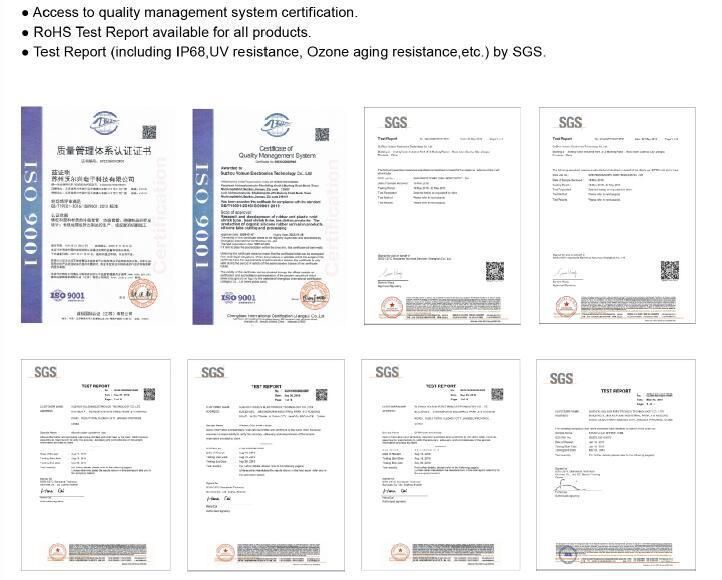

Certificates & Test Reports
