Earthing Electric Connection Clamp for Ground Rod Lightning Rod Clamp Earth Rods Accessories

HEFEI ELECMAN ELECTRICAL CO., LTD.
  • Surface Treatment：Tin Coated , Copper Coated,Copper Bonded Brass
  • Usage：Connecting Ground Rod and Round Conductors

Base Info

  • Model NO.：TAC050
  • Material：Copper
  • Type：Earthing Clamp
  • Life：More Than 50 Year
  • Function：Connecting Ground Rod Andround Conductors
  • Characters：Easy Installation ,Good Conductivity,Cost Low
  • Transport Package：Standard Exporting Cartons
  • Specification：1,2" 5,8" 3,4"
  • Trademark：ELECMAN
  • Origin：China
  • HS Code：7419999900
  • Production Capacity：50000 Pieces Per Day

Description

Basic Info.

Model NO. TAC050 Material Copper Type Earthing Clamp Life More Than 50 Year Function Connecting Ground Rod Andround Conductors Characters Easy Installation ,Good Conductivity,Cost Low Transport Package Standard Exporting Cartons Specification 1/2" 5/8" 3/4" Trademark ELECMAN Origin China HS Code 7419999900 Production Capacity 50000 Pieces Per Day

Product Description

Earthing Electric Connection Clamp for Ground Rod Lightning Rod Clamp Earth Rods Accessories
ELECMAN ® Earthing Electric Connection Type A Clamp For Ground Rod Lightning Rod Clamp Earth Rods And Accessories

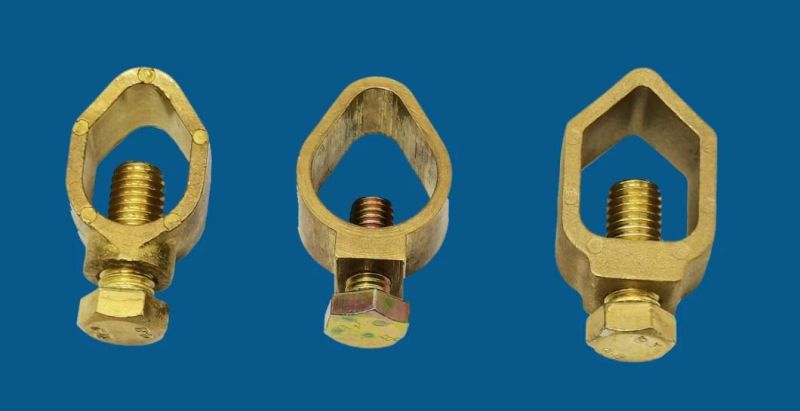

PRODUCT:  Type A Clamp

MATERIAL:  Brass, Copper, or Bronze

TYPE: Type A Clamp

Surface Finish:Copper coated,copper bonded brass

Part No.Rod Dia.(mm)Conductor Range(mm²)Weight(kg)
TAC050                    1/2"  (12.7mm)10-250.03
TAC063                    5/8"  (16mm)16-500.08
TAC075                    3/4"  (19mm)35-950.08

APPLICATION:

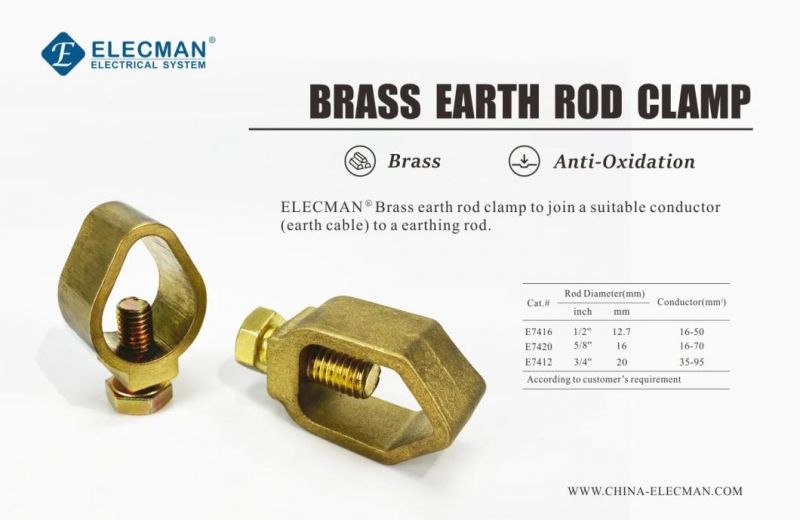

• Earth clamp is made of brass, copper, or bronze, for ground rod and ground cable connection. Earth clamp is widely used in earthing project with it's Strong corrosion resistance, Good conductivity, and long use life.

Earthing Electric Connection Clamp for Ground Rod Lightning Rod Clamp Earth Rods Accessories

PRODUCTS FEATURES:
• Easy installation ,Strong corrosion resistance,good conductivity,cost low
• Has a bronze look, not easy to change surface color.

Earthing Electric Connection Clamp for Ground Rod Lightning Rod Clamp Earth Rods Accessories
PACKING INFORMATION

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time.

For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton.

ELECMAN can follow any packing requirements of customers.

PRODUCT SELLING POINT:
• Provide quality guarantee
• Provide customers with special customized services
• Fast delivery
• Free sample
• Cost-effective

HOW TO CHOOSE CLAMP :
•  Determine how many wires the customer needs to connect
•  The size of wire and ground rod
•Connection method of wire and ground rod: such as parallel or vertical wire and ground rod; parallel and vertical
• What kind of site, environment (such as soil pH), customer budget
