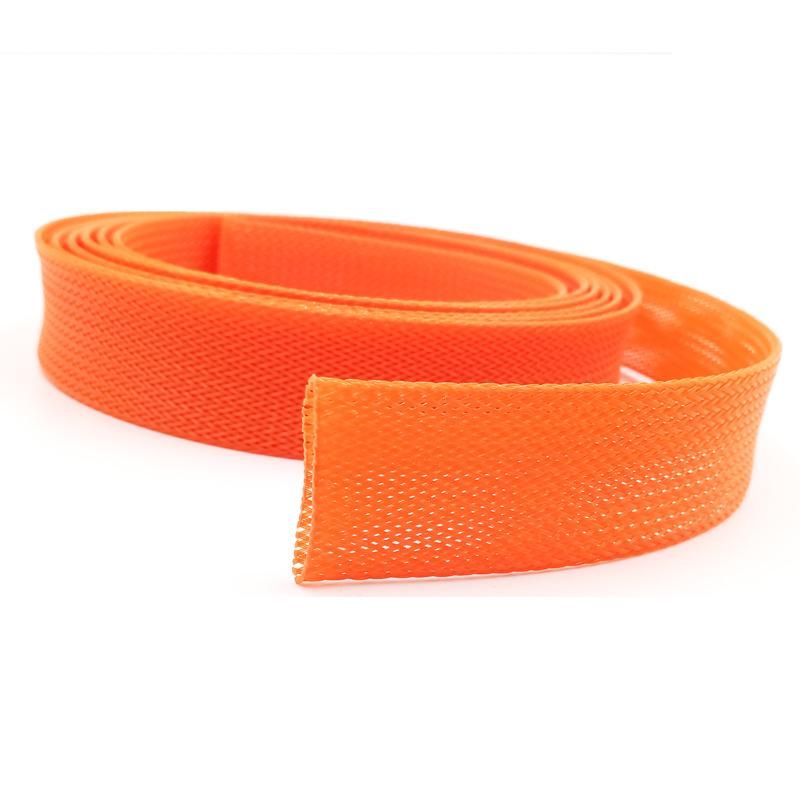

Flexible Pet Braided Expandable Sleeve Wiring Harness Cover
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS
- Color：Orange
- IP Rating：IP66
- Usage：Optical Cable, DVI Line, HDMI Cable
- Material：Polyester
- Type：Cable Sleeve
Base Info
- Model NO.：BS-PET
- Customized：Customized
- Condition：New
- Flame Retardant：Normal
- Available Size：3mm~100mm Flat Width
- Classification：Pet Braided Expandable Sleeve Wiring Harness Cover
- Standard Color：Black, Grey
- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month Wiring Harness Sleeve
Description
Technical data:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife
Application:
It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.
Wiring Harness Cover
Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| BS-PET003 | 3 | 1 | 6 | 1000 |
| BS-PET006 | 6 | 3 | 9 | 500 |
| BS-PET008 | 8 | 5 | 16 | 350 |
| BS-PET010 | 10 | 7 | 19 | 350 |
| BS-PET012 | 12 | 8 | 24 | 300 |
| BS-PET016 | 16 | 10 | 27 | 250 |
| BS-PET019 | 20 | 14 | 30 | 200 |
| BS-PET025 | 25 | 18 | 35 | 200 |
| BS-PET032 | 32 | 20 | 50 | 150 |
| BS-PET038 | 38 | 30 | 60 | 100 |
| BS-PET045 | 45 | 35 | 75 | 100 |
| BS-PET050 | 50 | 40 | 80 | 100 |
| BS-PET064 | 64 | 45 | 105 | 100 |
| BS-PET076 | 76 | 64 | 120 | 100 |
