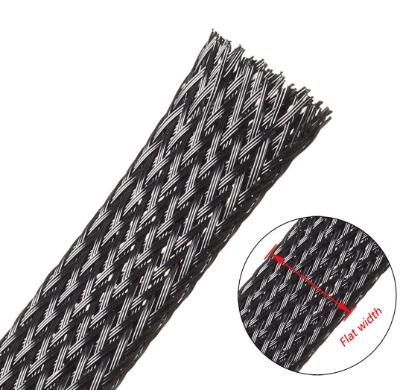

Flame Retardant Nylon Mesh Cable Sleeve for Wire Harnesses

Xiamen QX Trade Co., Ltd.
  • Certification：UL, CCC, RoHS, ISO, CE, CSA,RoHS,Pfos,Reach
  • Color：Black
  • IP Rating：IP50
  • Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
  • Material：PA
  • Type：Spiral Wrapping

Base Info

  • Model NO.：BS-PA
  • Operating Range：-60ºC~+160ºC
  • Melt Point：256±10ºC
  • Flammability：VW-1
  • Cutting Tool：Hot Knift
  • Advantage：Flexibility,Good Wear Resistance
  • Transport Package：Carton
  • Specification：3mm~76mm ID
  • Trademark：EKO
  • Origin：Fujian, China
  • HS Code：5806109030
  • Production Capacity：100000 Meters,Week

Description

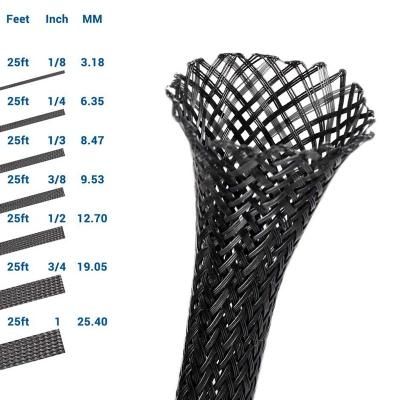

Nominal size(W)Part No.Expanded rangePacking(L)InchmmMin.(I)Max.(O)Standrd spool1/8"3.0BS-PA0031.06.01000m/roll1/4"6.0BS-PA0063.09.0500m/roll5/16"8.0BS-PA0085.016.0300m/roll3/8"10.0BS-PA0107.019.0300m/roll1/2"12.0BS-PA012 8.024.0300m/roll5/8"16.0BS-PA01610.027.0300m/roll3/4"20.0BS-PA01914.030.0300m/roll1"25.0BS-PA02518.035.0200m/roll1-1/4"30.0BS-PA03220.050.0200m/roll1-1/2"40.0BS-PA03830.060.0100m/roll1-3/4"45.0BS-PA04535.075.0100m/roll2"50.0BS-PA05040.080.0100m/roll2-1/2"64.0BS-PA06445.0105.0100m/roll3"76.0BS-PA07664.0120.0100m/roll

Flame Retardant Nylon Mesh Cable Sleeve for Wire HarnessesFlame Retardant Nylon Mesh Cable Sleeve for Wire Harnesses

Application

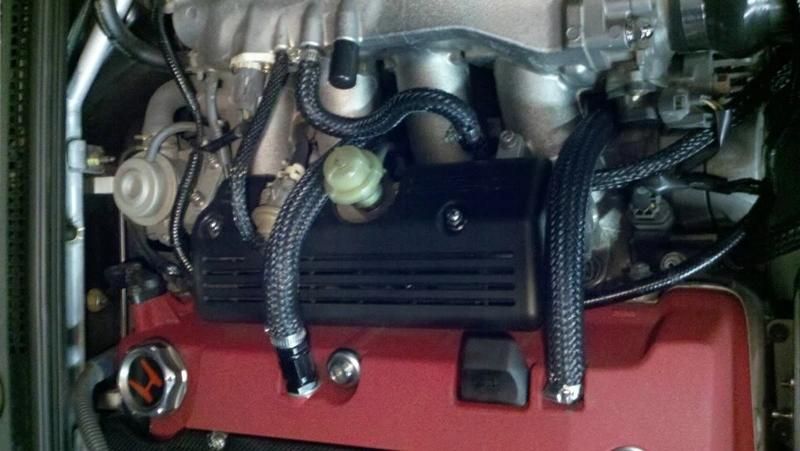

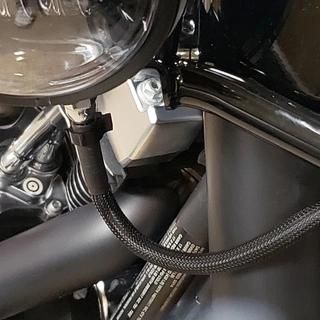

It's used to cover cables, wire harnesses, tubes, industrial hoses,where is required an additional protection. Most commonly used
to protect wire harness, cable assemblies, air conditioned pipes, fluid pipes in automotive, aerospace and military applications.
Flame Retardant Nylon Mesh Cable Sleeve for Wire HarnessesFlame Retardant Nylon Mesh Cable Sleeve for Wire Harnesses
Flame Retardant Nylon Mesh Cable Sleeve for Wire Harnesses
