• Model NO.：pipe
• Usage：Wire and Cable Protection
• Thickness：1.07mm-2.11mm
• Outer Diameter：17.93 - 114.3 mm
• Technique：Cold Rolled
• Length：3050mm
• Capacity：5000 Ton,Tons Per Month

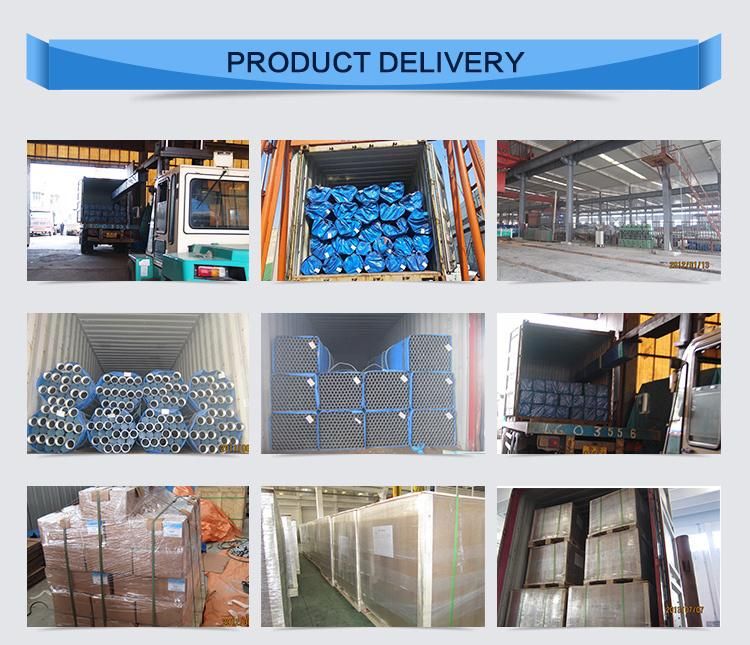

• Transport Package：Woodpackage
• Specification：1,2"-4" inch
• Trademark：eaststeelpipe
• Origin：China
• HS Code：73063090
• Production Capacity：5000 Ton,Tons Per Month

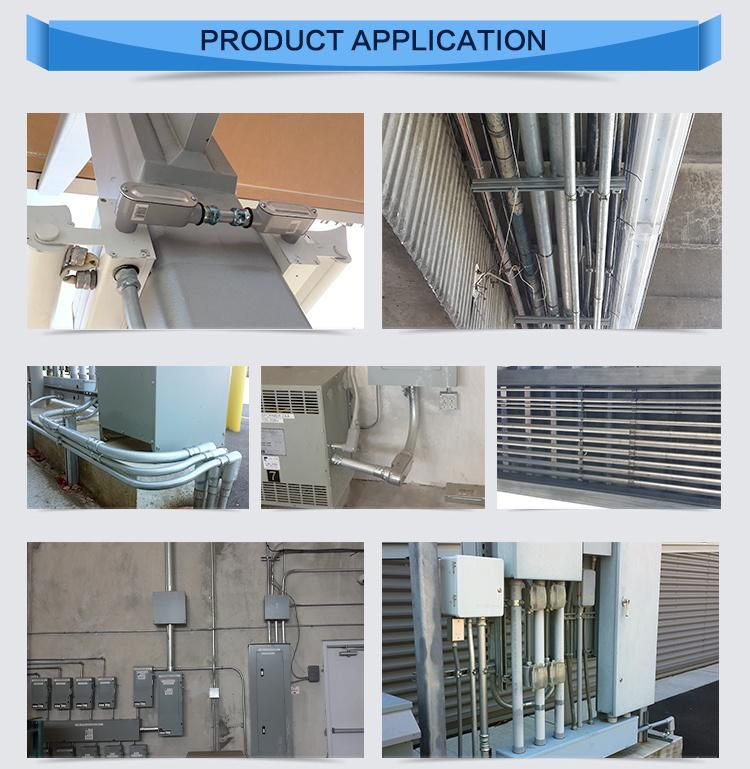

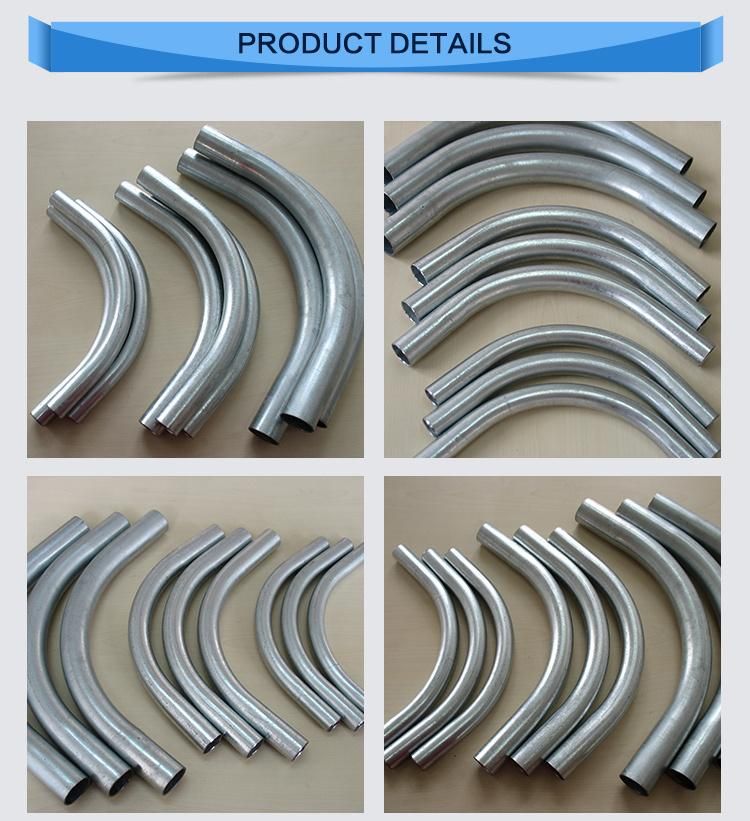

Electrical EMT Steel pipe ;Standard:UL797 & ANSI C80.3 File No.:E340594;Tade Size :from 1/2" to 4" are available ;Length:3050mm or according to customer's requirement;Usage:through the electrical wires with the purpose of protection for the electrical raceway system;Surface Finished:Hot dip galvanized(HDG);Material :carbon steel coil;Package:the conduits coverd with pvc paper then tied with steel straps;Delivery Time:20 to 30 days after we receive your advance payment or copy of L/C;Payment Term:L/C at sight or T/T;

Nominal Wt. per 100Ft(30.5M)Nominal Outside DiameterNominal Wall ThicknessU.S.MetricLbsKgIn.mmIn.mm1/2"163013.50.70617.930.0421.073/4"214620.70.92223.420.0491.241"276730.61.16329.540.0571.451-1/4"3510145.61.5138.350.0651.651-1/2"4111652.81.7444.20.0651.652"5314867.22.19755.80.0651.652-1/2"6321697.92.87573.030.0721.833"782651203.588.90.0721.833-1/2"913481584101.60.0832.114"1033921784.5114.30.0832.11

Applicable Tolerances:

Length: 10Ft (3.05m) ± ¼" (±6.35mm).

Outside Diameter: ½"-2" ±0.005" (±0.13mm); 2½" ±0.010" (±0.25mm); 3" ±0.015" (±0.38mm); 3½"-4" ±0.020" (±0.51mm)
