Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)

Suzhou Crown Electronic Technology Co., Ltd.
  • Certification：CE
  • Color：Grey
  • Usage：Optical Cable, Electric Wire
  • Material：PVC
  • Type：Spiral Wrapping
  • Model：Wl-Bz1

Base Info

  • Model NO.：WL-BZ1
  • Applicable Sleeving：Fiber Sleeving, (Woven Mesh), Melt Cut Material
  • Applicable Wire Range：Custom Type (Not Exceed The Pipe Diameter)
  • Applicable Guide Tube Range：Diameter 12-25mm
  • Cutting Accuracy：+,-3mm
  • Cutting Length：100mm-1200mm
  • Speed：No Less Than 1000PCS,Hour
  • Power：Single Phase AC 220V,50Hz
  • Energy Consumption：400W,Hr
  • Operating Ambient Temperature：-5 ~ +40 Degree
  • Relative Humidity：(40 ~ 90)% Rh
  • Access Gas Source：0.4~0.6MPa
  • Weight：375kg
  • Dimensions：201*69*151cm
  • Note：Special Materials Can Be Customized.
  • Transport Package：Wooden Case
  • Specification：201*69*151cm
  • Trademark：Crown
  • Origin：China, Jiangsu
  • HS Code：8451800090
  • Production Capacity：No Less Than 1000PCS,Hour

Description

Special materials can be customized.


Specifications

This automatic braided sleeving wrap-around machine is suitable for threading woven sleevings onto wire harness and cables.

  • This automatic braided sleeving wrap-around machine fuses the woven sleeving according to the set length and send it to the side of the hollow guiding tube for threading.

  • Fast speed, good threading effect, simple operation and precise cutting

  • Suitable for wrapping-around different types of braided sleevings onto wire harness and cables

  • It consists of a fine-tunable photoelectric control system and a PLC control system. The cutting length can be set, and the cutting performance is stable.

  • Applicable products: automotive wiring harness, electronic wire, medical wire, metal, wire and cable, etc.

  • Applicable industries: wire harness processing plant, electronics factory, electrical appliances, hardware, etc.

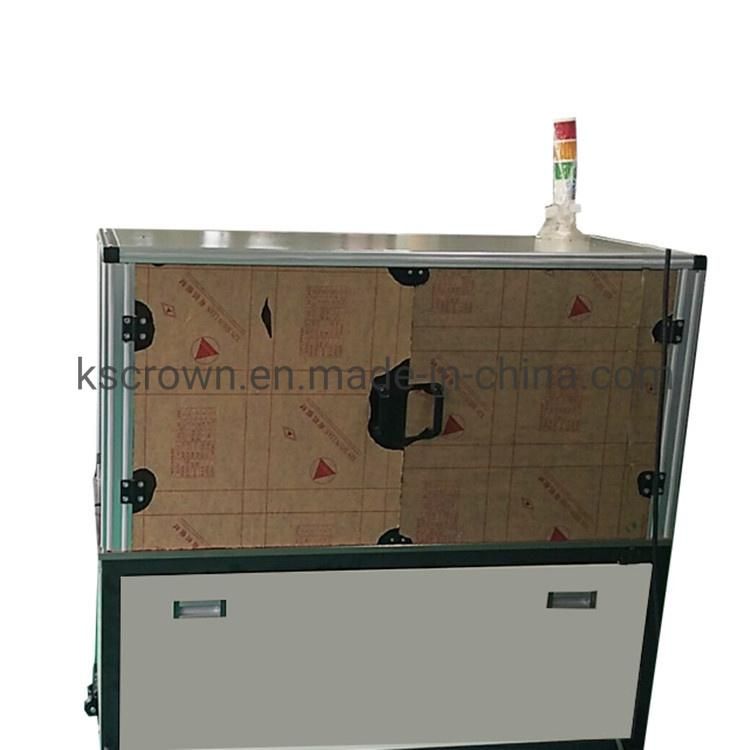

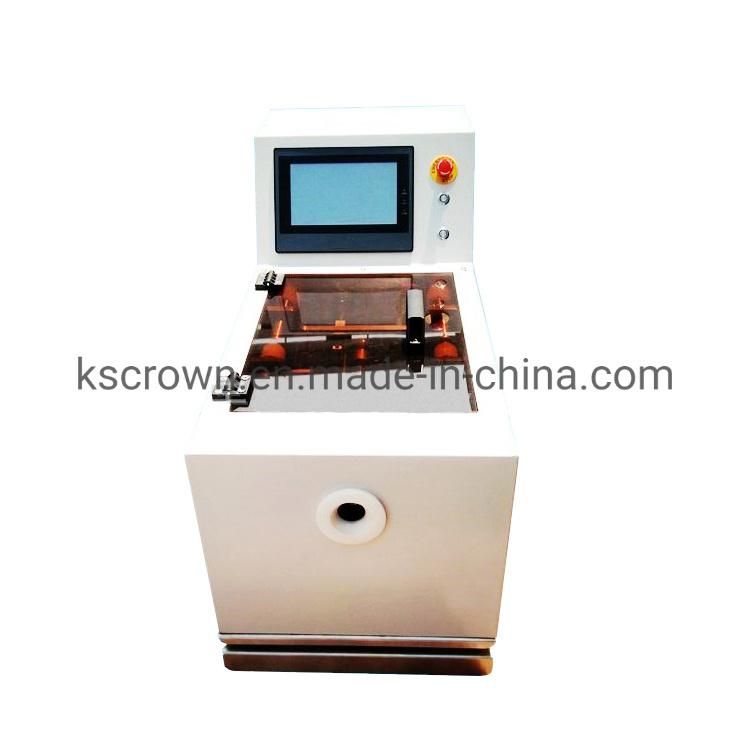

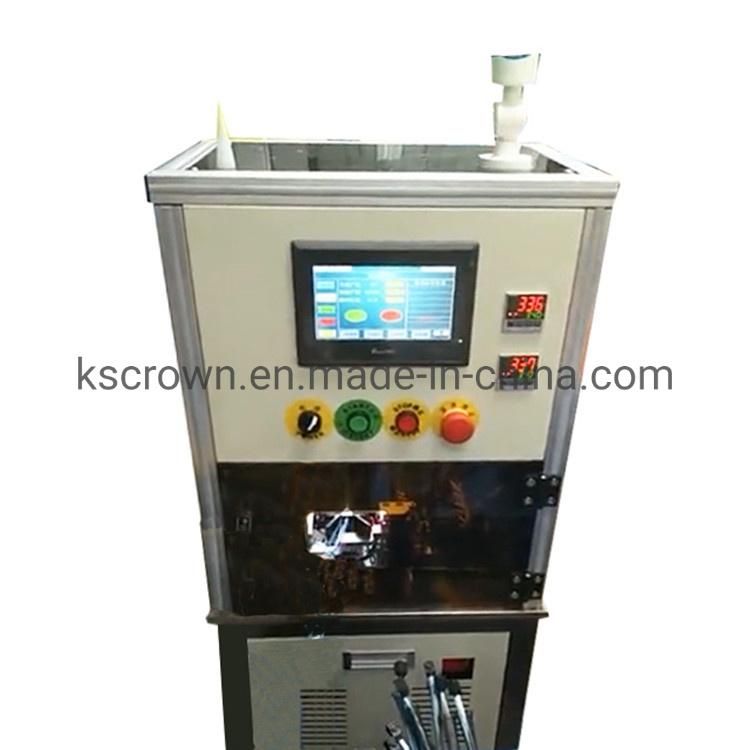

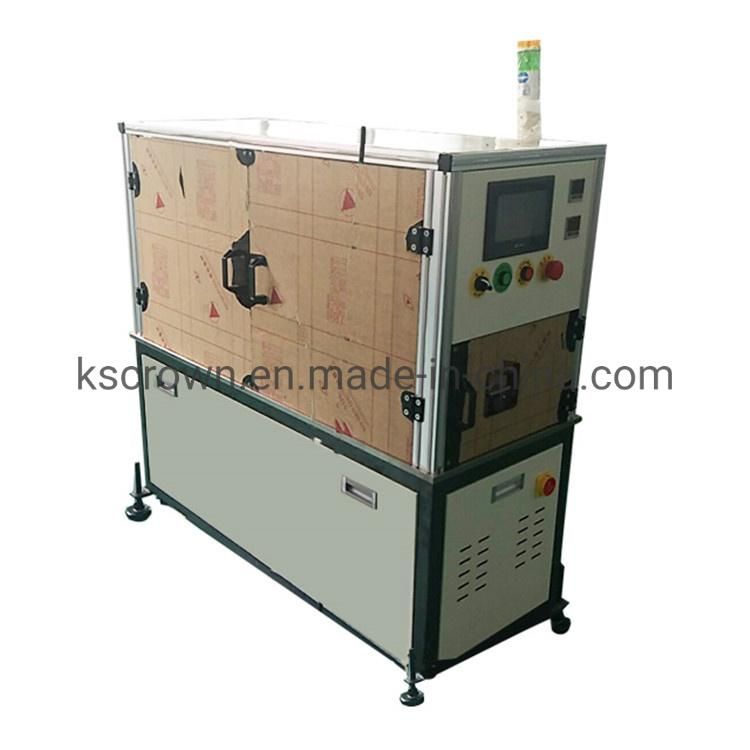

Product show:
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)


Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)

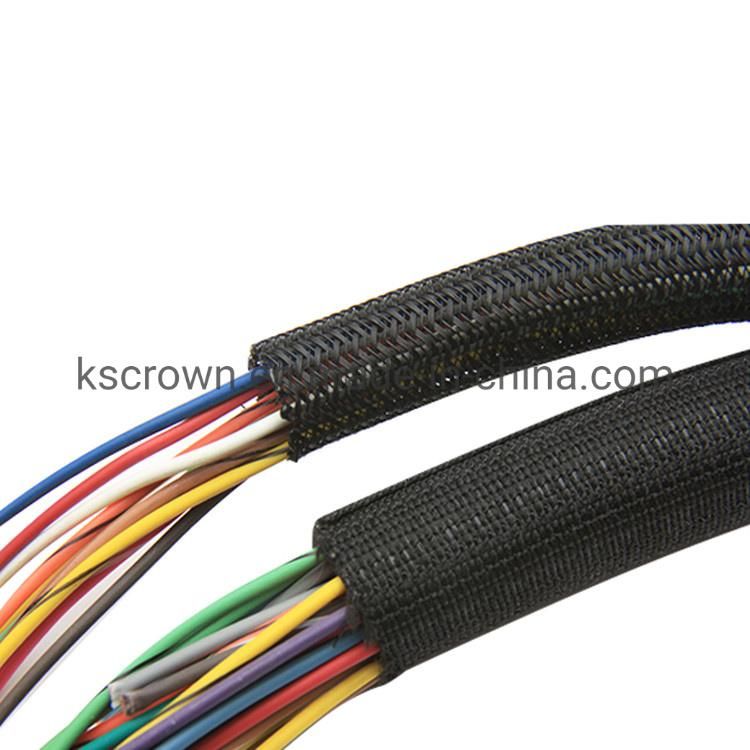

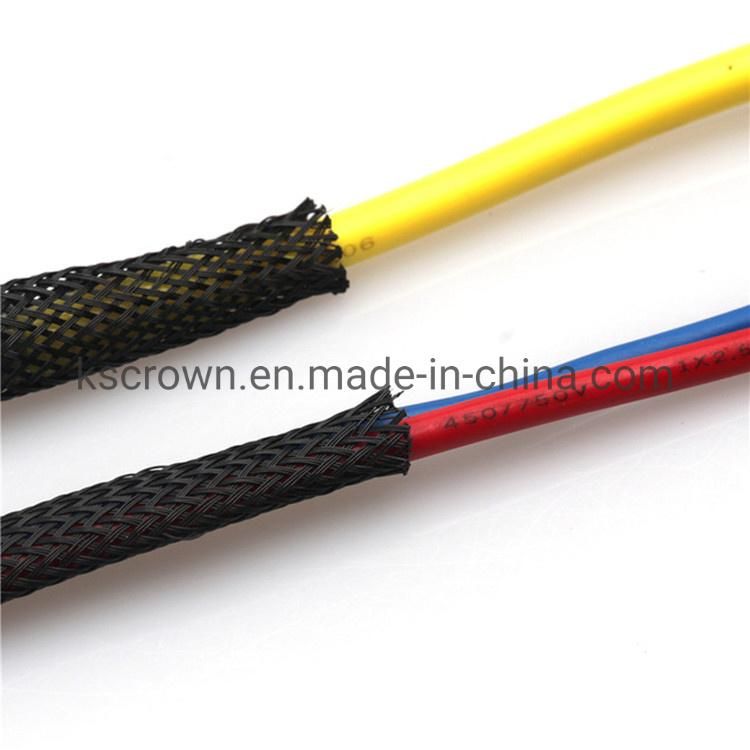

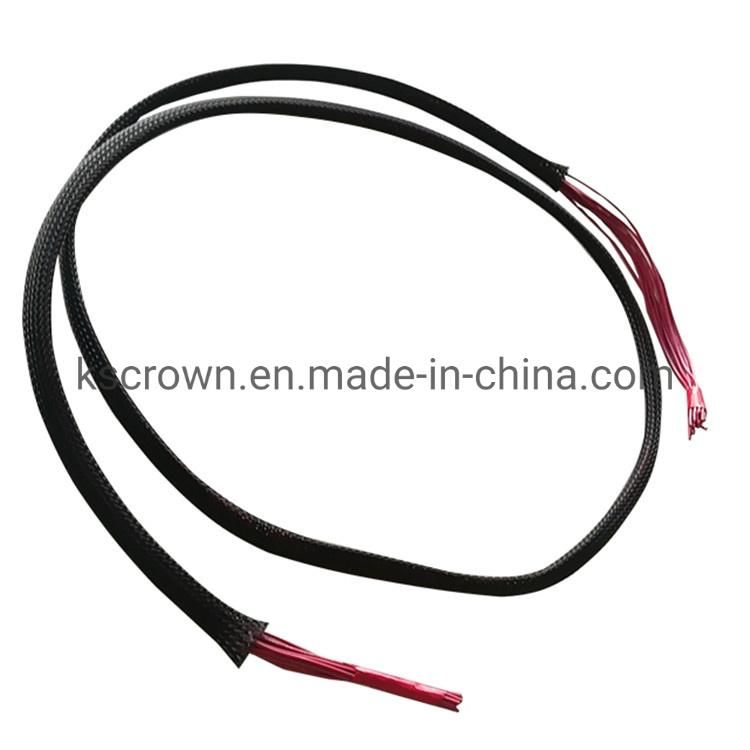

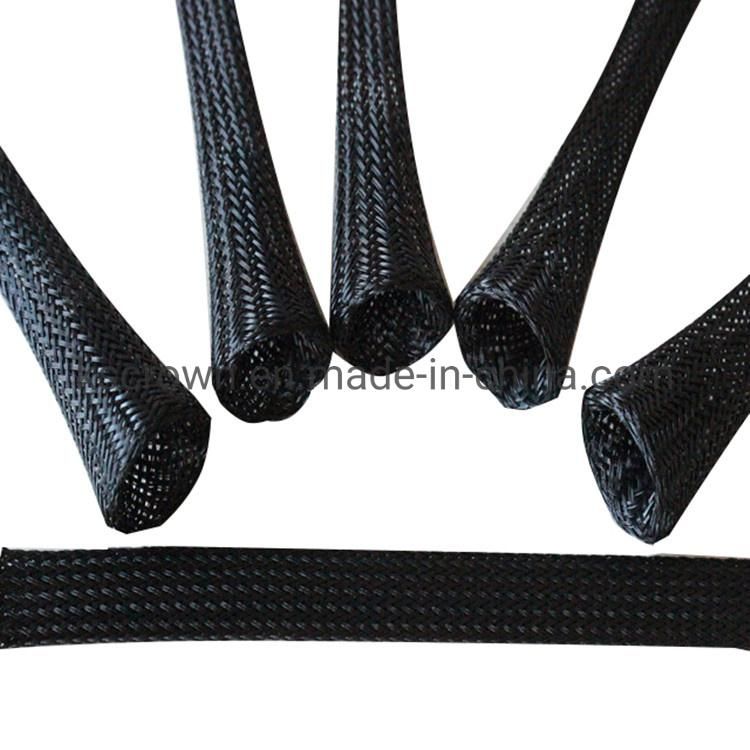

Machine processing tape samples:
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)


Related products:
Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)

Cable Braided Sleeve Insertion Machine Automatic Hot Cutting Machine (WL-BZ1)

FAQ:

1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.

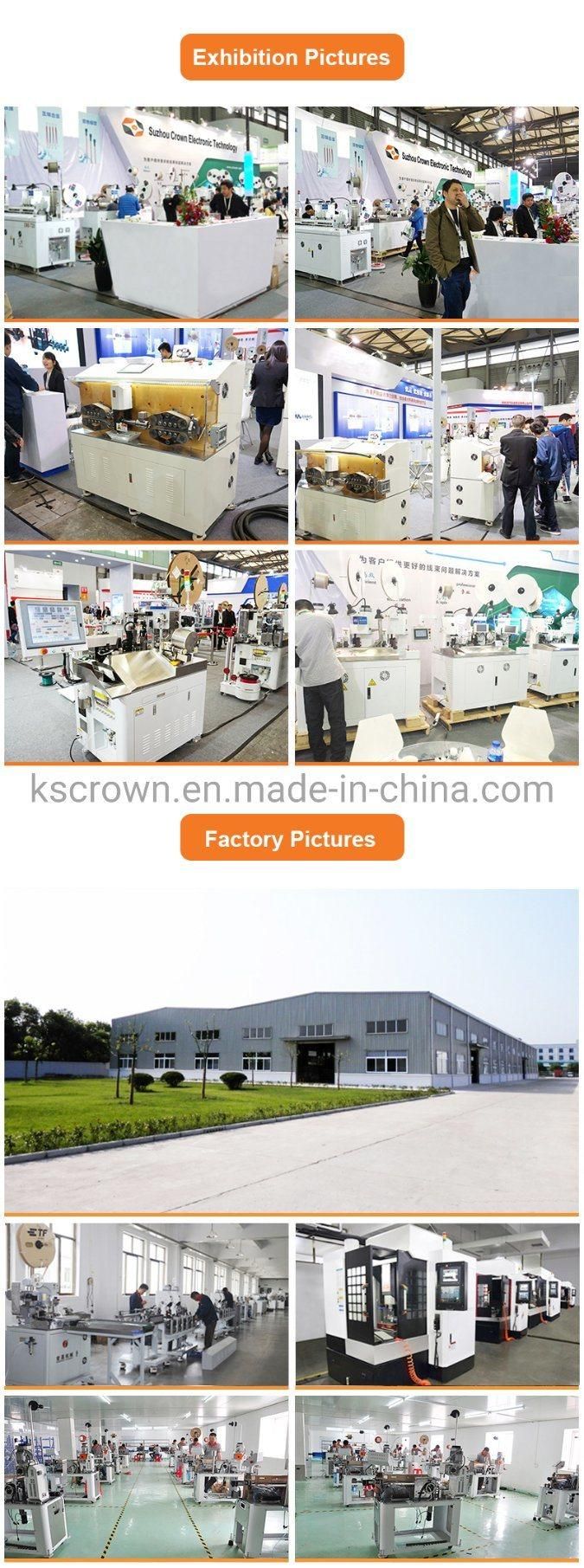

Company information:
