- Model NO.：HY-10
- Shape：Square
- Material：The Wire Duct Is Made From Rigid PVC

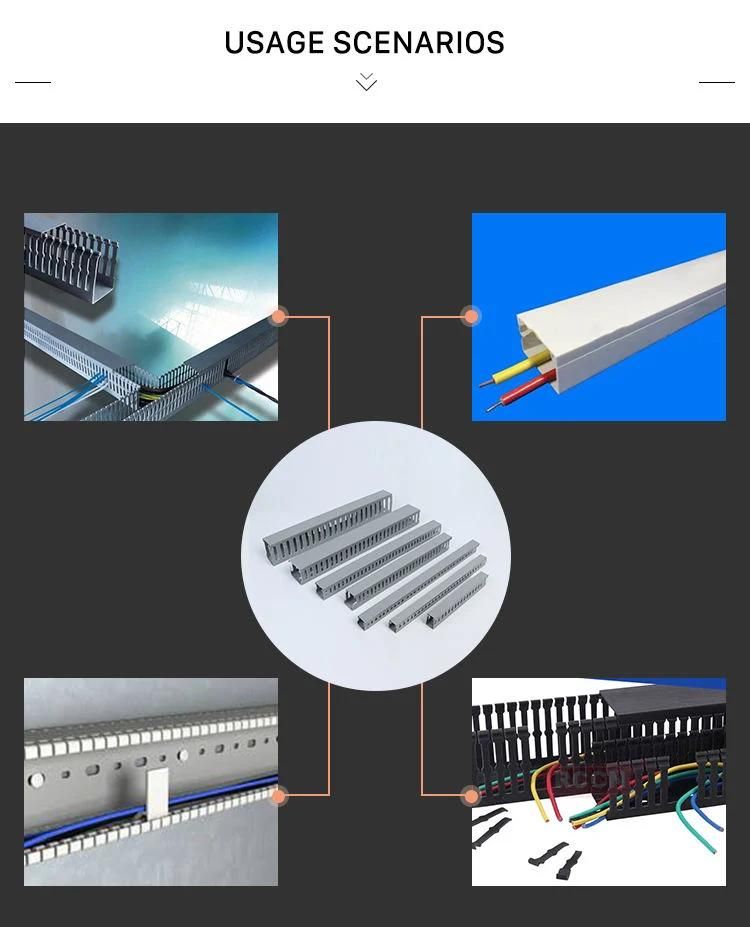

- Application：Rounting and Conncealing Wiring in Industry
- Name：PVC Cable Trunking,Wiring Ducts
- Transport Package：2meter,PCS +Carton+Label
- Specification：The wire cable ducts is 2Meter
- Trademark：HRYA
- Origin：China
- Production Capacity：1000000
- Package size per unit product：30.00cm * 10.00cm * 6.00cm
- Gross weight per unit product：1.000kg
Material | PXC - Rigid PVC. Self-extinguishing.UL94 V-0 EAR - Lead-Free PVC Material. Self-extinguishing.UL94 V-0 |
| Length | 2 Meter (~78") complete with cover. |
| Features | |
| 1) | Conforms to EN 50085-2-3 standard |
| 2) | CE or Rohs complies. UL File number E354081 |
| 3) | With mounting holes for easy mounting. |
| 4) | Excellent Cover Retention |
Specification of Rigid Wire Ducts:
Part No. CE &UL94V0 | Part No. Rohs &UL94V0 | WxH | M/PACK | 14AWG/PCS |
| PXC1525 | HY1525 | 15x25 | 300 | 5-12 |
| PXC2025 | HY2025 | 20x25 | 232 | 5-12 |
| PXC2525 | HY2525 | 25x25 | 180 | 10-25 |
| PXC2030 | HY2030 | 20x30 | 192 | 15-25 |
| PXC2530 | HY2530 | 25x30 | 144 | 15-25 |
| PXC3030 | HY3030 | 30x30 | 120 | 15-25 |
| PXC3530 | HY3530 | 35x30 | 112 | 25-30 |
| PXC4030 | HY4030 | 40x30 | 100 | 25-35 |
| PXC3333 | HY3333 | 33x33 | 124 | 20-30 |
| PXC2535 | HY2535 | 25x35 | 144 | 15-25 |
| PXC3535 | HY3535 | 35x35 | 120 | 40-45 |
| PXC5035 | HY5035 | 50x35 | 100 | 55-65 |
| PXC2540 | HY2540 | 25x40 | 124 | 20-25 |
| PXC4040 | HY4040 | 40x40 | 80 | 60-70 |
| PXC6040 | HY6040 | 60x40 | 80 | 100-115 |
| PXC2545 | HY2545 | 25x45 | 128 | 20-25 |
| PXC3345 | HY3345 | 33x45 | 84 | 40-55 |
| PXC4545 | HY4545 | 45x45 | 92 | 60-70 |
| PXC6545 | HY6545 | 65x45 | 72 | 80-90 |
| PXC2550 | HY2550 | 25x50 | 100 | 20-25 |
| PXC3050 | HY3050 | 30x50 | 120 | 30-35 |
| PXC3550 | HY3550 | 35x50 | 120 | 40-45 |
| PXC4050 | HY4050 | 40x50 | 100 | 50-60 |
| PXC4550 | HY4550 | 45x50 | 80 | 60-70 |
| PXC5050 | HY5050 | 50x50 | 80 | 80-90 |
| PXC5550 | HY5550 | 55x50 | 72 | 80-90 |
| PXC6050 | HY6050 | 60x50 | 68 | 85-95 |
| PXC8050 | HY8050 | 80x50 | 52 | 150-170 |
| PXC10050 | HY10050 | 100x50 | 40 | 200-240 |
| PXC2560 | HY2560 | 25x60 | 132 | 40-45 |
| PXC3560 | HY3560 | 35x60 | 108 | 40-55 |
| PXC4060 | HY4060 | 40x60 | 96 | 100-115 |
| PXC4560 | HY4560 | 45x60 | 84 | 113-118 |
| PXC5560 | HY5560 | 55x60 | 72 | 115-130 |
| PXC6060 | HY6060 | 60x60 | 60 | 120-135 |
| PXC8060 | HY8060 | 80x60 | 44 | 180-240 |
| PXC10060 | HY10060 | 100x60 | 32 | 190-250 |
| PXC2565 | HY2565 | 25x65 | 132 | 40-45 |
| PXC3365 | HY3365 | 33x65 | 108 | 60-75 |
| PXC4565 | HY4565 | 45x65 | 84 | 110-120 |
| PXC6565 | HY6565 | 65x65 | 60 | 180-200 |
| PXC2580 | HY2580 | 25x80 | 100 | 100-120 |
| PXC3080 | HY3080 | 30x80 | 80 | 110-130 |
| PXC3580 | HY3580 | 35x80 | 72 | 120-140 |
| PXC4080 | HY4080 | 40x80 | 56 | 120-135 |
| PXC4580 | HY4580 | 45x80 | 56 | 130-140 |
| PXC5080 | HY5080 | 50x80 | 48 | 150-190 |
| PXC5580 | HY5580 | 55x80 | 48 | 150-190 |
| PXC6080 | HY6080 | 60x80 | 40 | 180-210 |
| PXC8080 | HY8080 | 80x80 | 32 | 240-290 |
| PXC10080 | HY10080 | 100x80 | 24 | 260-350 |
| PXC12080 | HY12080 | 120x80 | 20 | 260-350 |
| PXC14080 | HY14080 | 140x80 | 16 | 300-400 |
| PXC33100 | HY33100 | 33x100 | 72 | 110-160 |
| PXC40100 | HY40100 | 40x100 | 56 | 130-170 |
| PXC48100 | HY48100 | 48x100 | 48 | 220-250 |
| PXC50100 | HY50100 | 50x100 | 40 | 220-250 |
| PXC60100 | HY60100 | 60x100 | 40 | 240-290 |
| PXC70100 | HY70100 | 70x100 | 32 | 250-350 |
| PXC80100 | HY80100 | 80x100 | 32 | 260-350 |
| PXC100100 | HY100100 | 100x100 | 24 | 300-400 |
| PXC120100 | HY120100 | 120x100 | 16 | 330-430 |
| PXC160100 | HY160100 | 160x100 | 12 | 360-460 |
| PXC100150 | HY100150 | 100x150 | 12 | 330-450 |
