20mm Black Pet Expandable Mesh Polyester Braided Sleeving Braided Nylon Sleeving for Protection Cable Wire
Xiamen QX Trade Co., Ltd.- Certification：UL, RoHS, ISO
- Color：Black
- IP Rating：Normal
- Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
- Material：PA
- Type：Spiral Wrapping
Base Info
- Item：Expandable Braided Nylon Mesh Tube for Cable Wire
- Flame Retardant：Normal
- Customized：Customized
- Condition：New
- Style：Cable Sleeve
- Classification：Nylon Expandable Braided Sleeving
- Available Size：3mm~76mm Flat Width
- Standard Color：Black, Grey
- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month Cable Sleeve Mesh Tube
Description
Basic Info.
Item Expandable Braided Nylon Mesh Tube for Cable Wire Flame Retardant Normal Customized Customized Condition New Style Cable Sleeve Classification Nylon Expandable Braided Sleeving Available Size 3mm~76mm Flat Width Standard Color Black, Grey Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark QX Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/Month Cable Sleeve Mesh TubeProduct Description

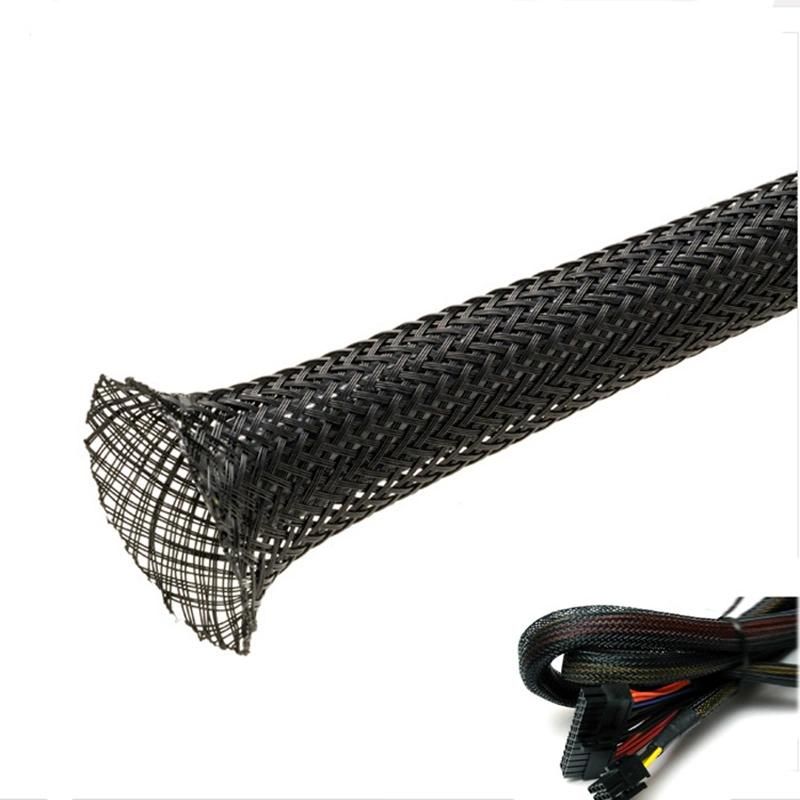

Expandable braided Nylon mesh tube for cable wire protectionProduct feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm nylon monofilament.

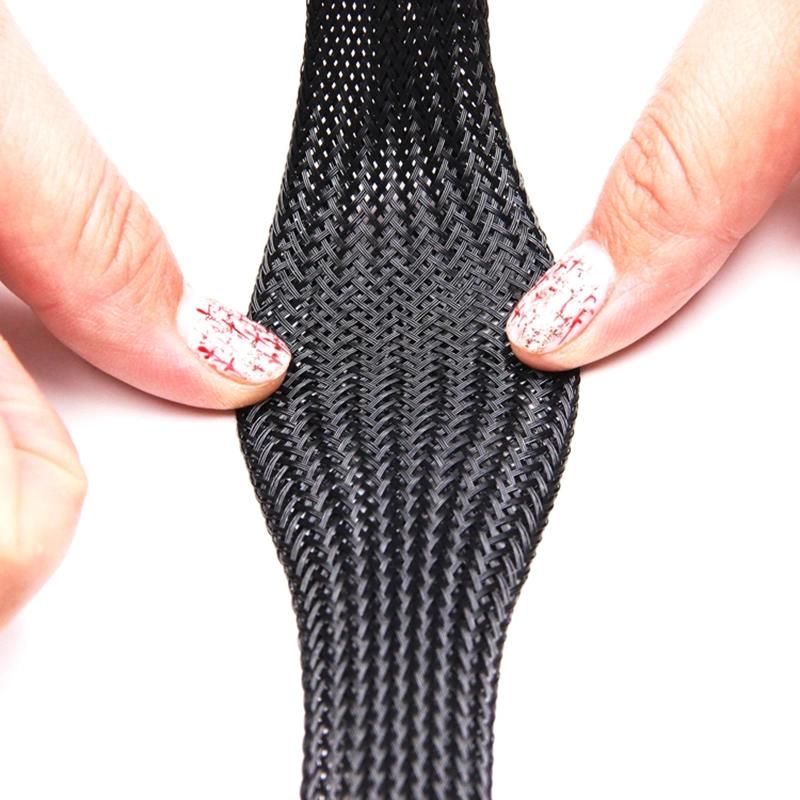

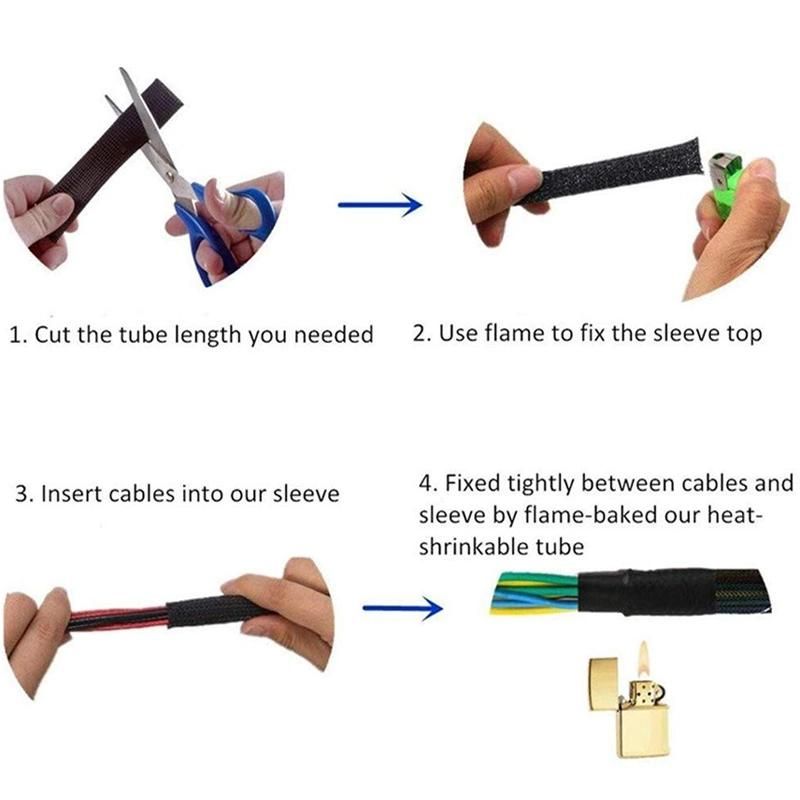

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

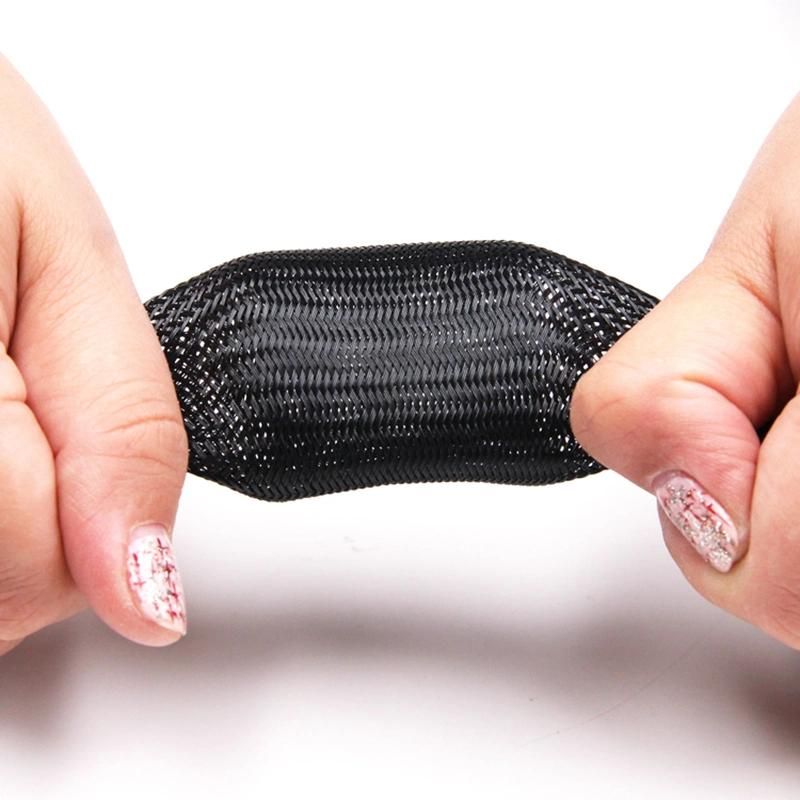

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Technical data:
1. Material: Polyamide 6.6
2. Operating range: - 60ºC - +160ºC
3. Melt Point: 256ºC
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: RoHS

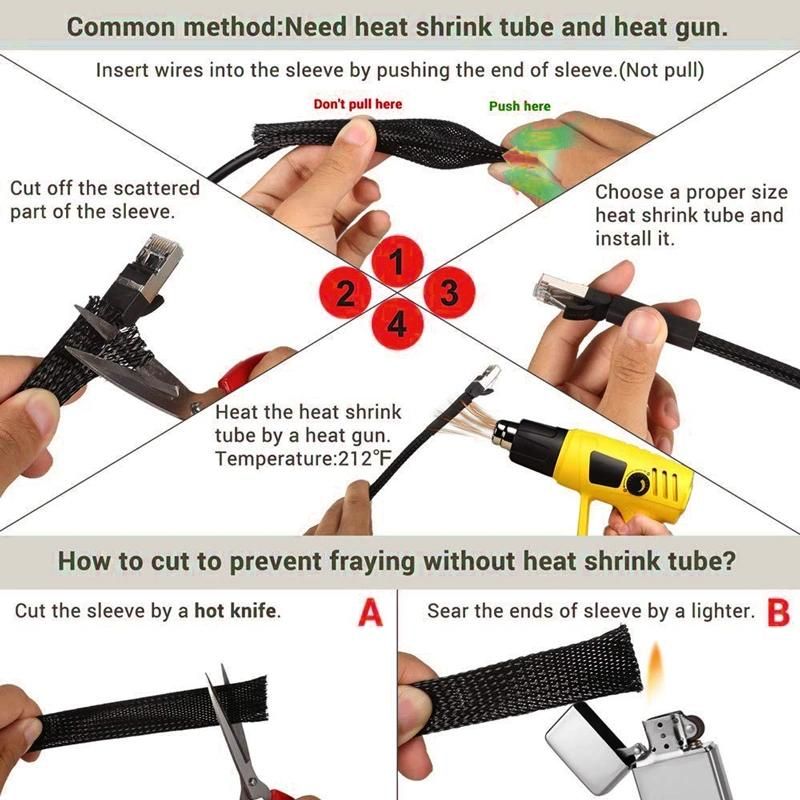

7. Cutting tool: Hot knife
Application:

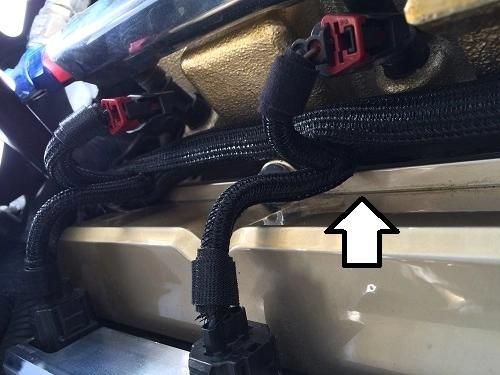

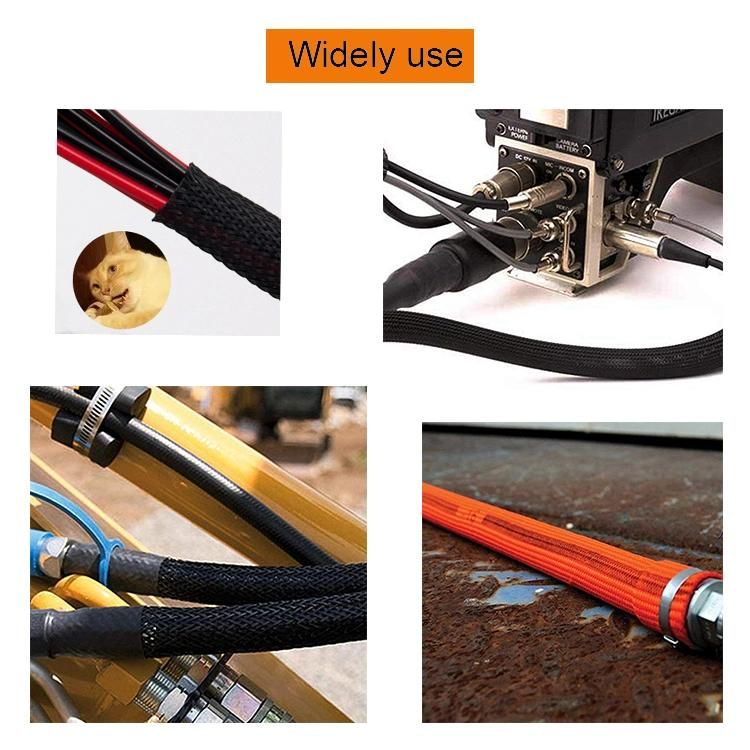

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.

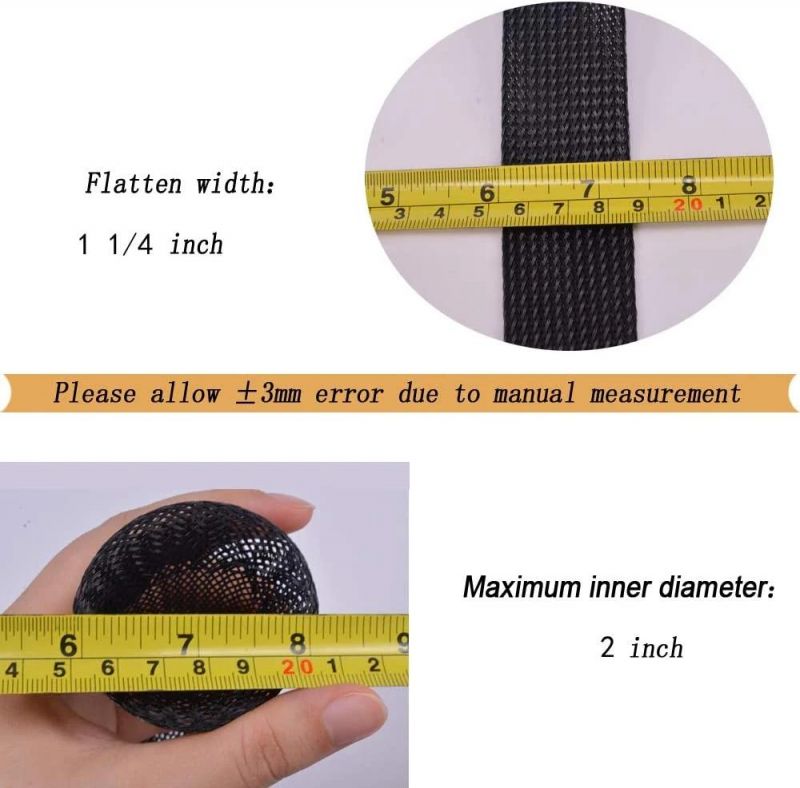

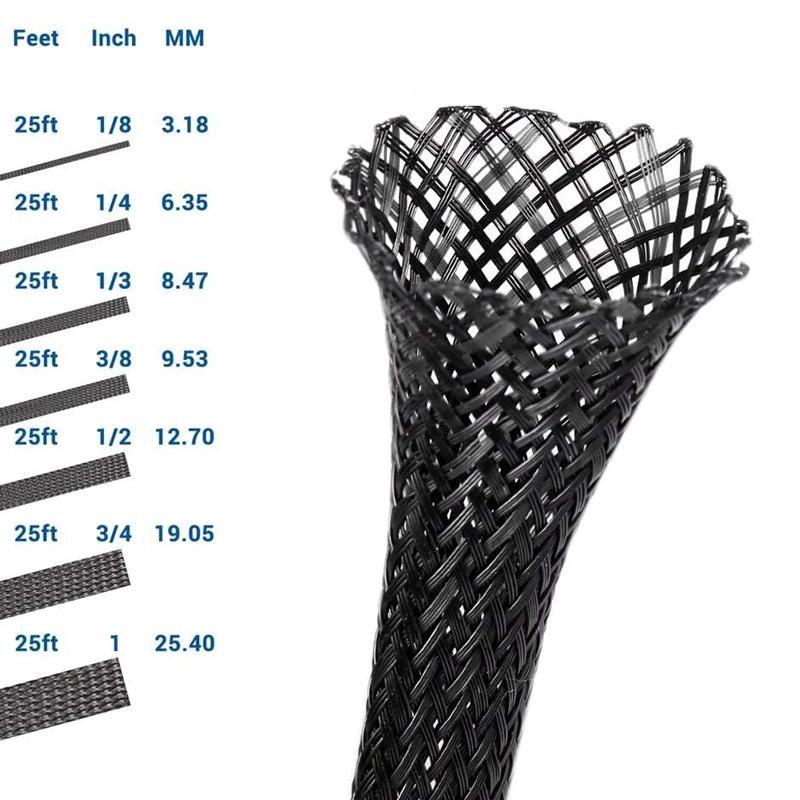

Size details | Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| BS-PA003 | 3 | 1 | 6 | 1000 |
| BS-PA006 | 6 | 3 | 9 | 500 |
| BS-PA008 | 8 | 5 | 16 | 350 |
| BS-PA010 | 10 | 7 | 19 | 350 |
| BS-PA012 | 12 | 8 | 24 | 300 |
| BS-PA016 | 16 | 10 | 27 | 250 |
| BS-PA019 | 20 | 14 | 30 | 200 |
| BS-PA025 | 25 | 18 | 35 | 200 |
| BS-PA032 | 32 | 20 | 50 | 150 |
| BS-PA038 | 38 | 30 | 60 | 100 |
| BS-PA045 | 45 | 35 | 75 | 100 |
| BS-PA050 | 50 | 40 | 80 | 100 |
| BS-PA064 | 64 | 45 | 105 | 100 |
| BS-PA076 | 76 | 64 | 120 | 100 |

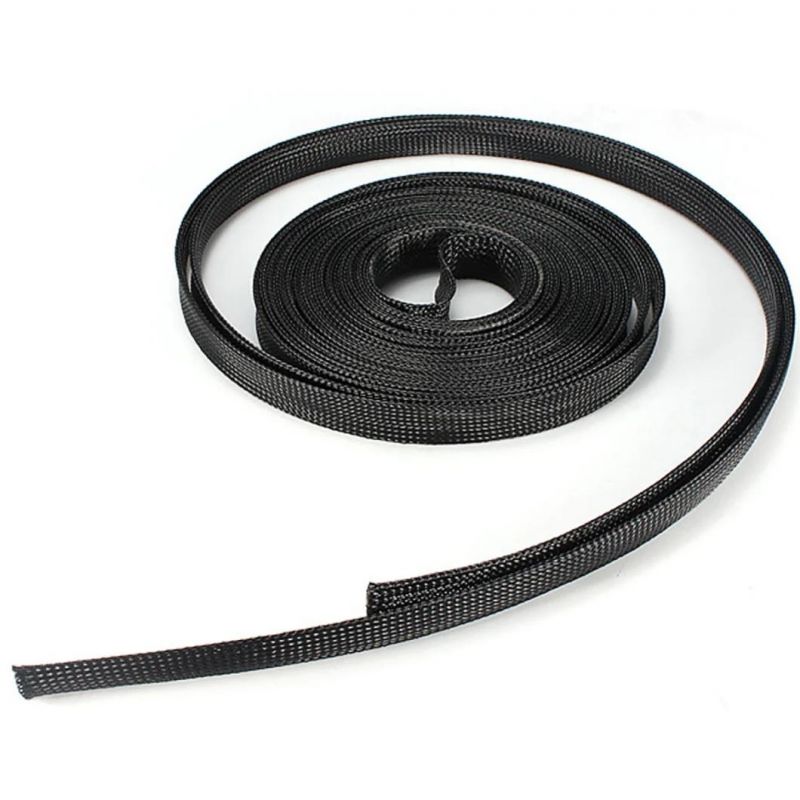

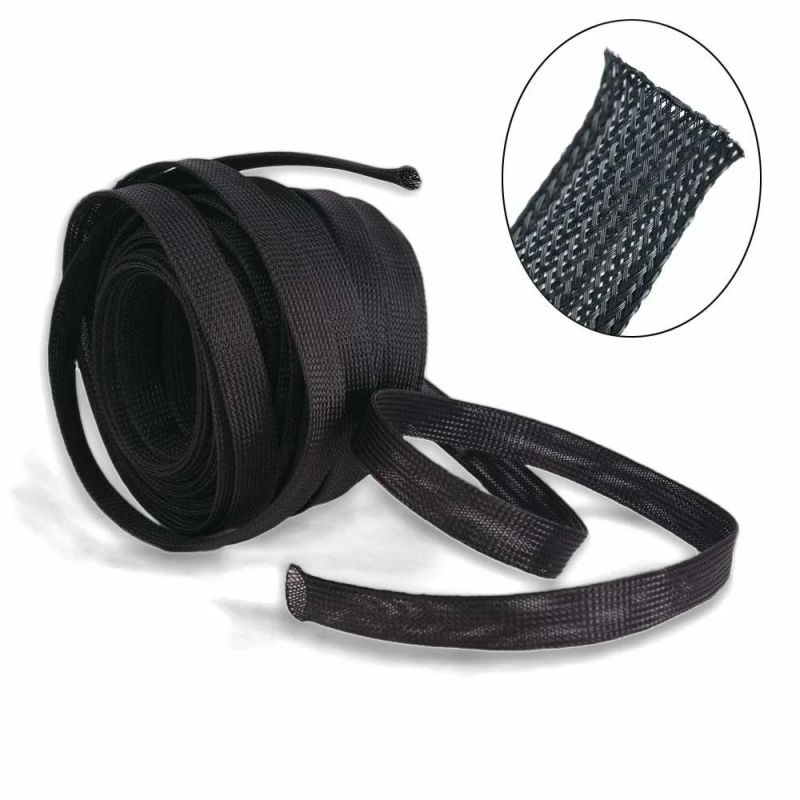

Detail Pictures:
