Multicolor Pet Braided Expandable Speaker Wire Harness Cable Sleeves
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS
- Material：Plastic
- Type：Cable Sleeve
- Flame Retardant：Normal
- Customized：Customized
- Condition：New
Base Info
- Model NO.：BS-PET
- Classification：Pet Braided Sleeving
- Available Size：3mm~100mm Flat Width
- Standard Color：Black, Grey
- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month Pet Braided Expandable Sleeve
Description
Basic Info.
Model NO. BS-PET Classification Pet Braided Sleeving Available Size 3mm~100mm Flat Width Standard Color Black, Grey Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark QX Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/Month Pet Braided Expandable SleeveProduct Description
Product feacture:1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.

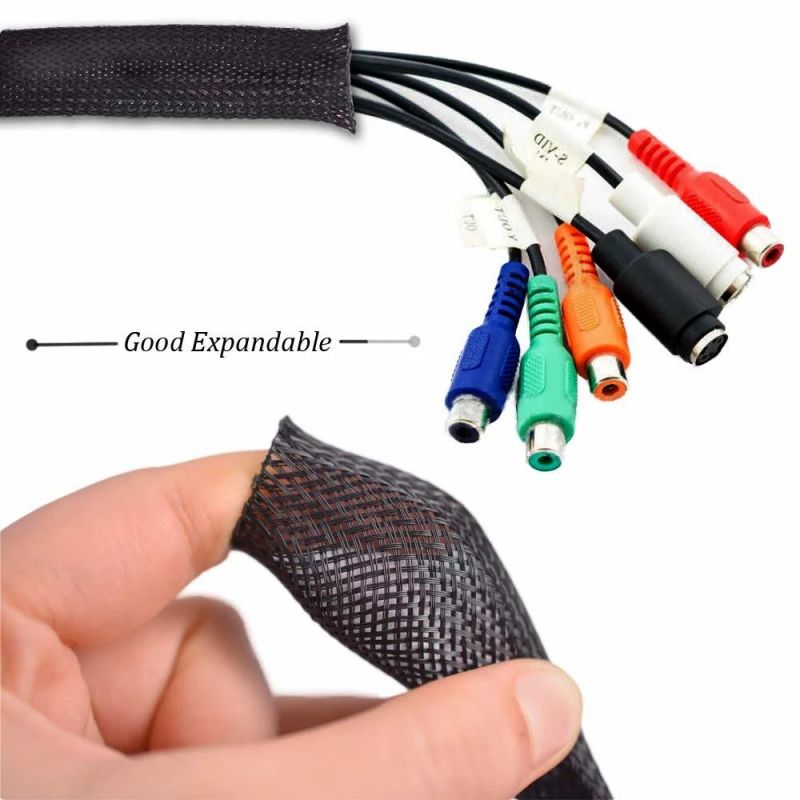

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Technical data:
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC+-5ºC
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife
Application:

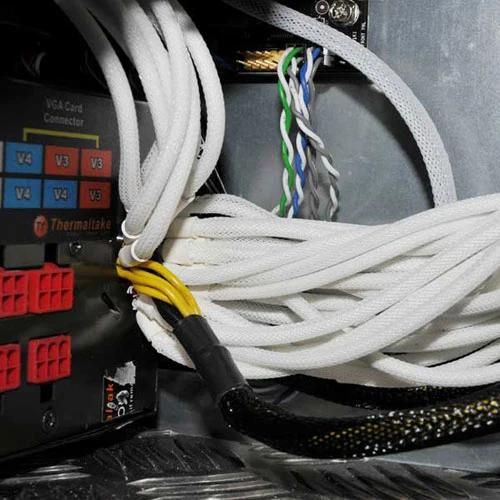

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.
| Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| BS-PET003 | 3 | 1 | 6 | 1000 |
| BS-PET006 | 6 | 3 | 9 | 500 |
| BS-PET008 | 8 | 5 | 16 | 350 |
| BS-PET010 | 10 | 7 | 19 | 350 |
| BS-PET012 | 12 | 8 | 24 | 300 |
| BS-PET016 | 16 | 10 | 27 | 250 |
| BS-PET019 | 20 | 14 | 30 | 200 |
| BS-PET025 | 25 | 18 | 35 | 200 |
| BS-PET032 | 32 | 20 | 50 | 150 |
| BS-PET038 | 38 | 30 | 60 | 100 |
| BS-PET045 | 45 | 35 | 75 | 100 |
| BS-PET050 | 50 | 40 | 80 | 100 |
| BS-PET064 | 64 | 45 | 105 | 100 |
| BS-PET076 | 76 | 64 | 120 | 100 |

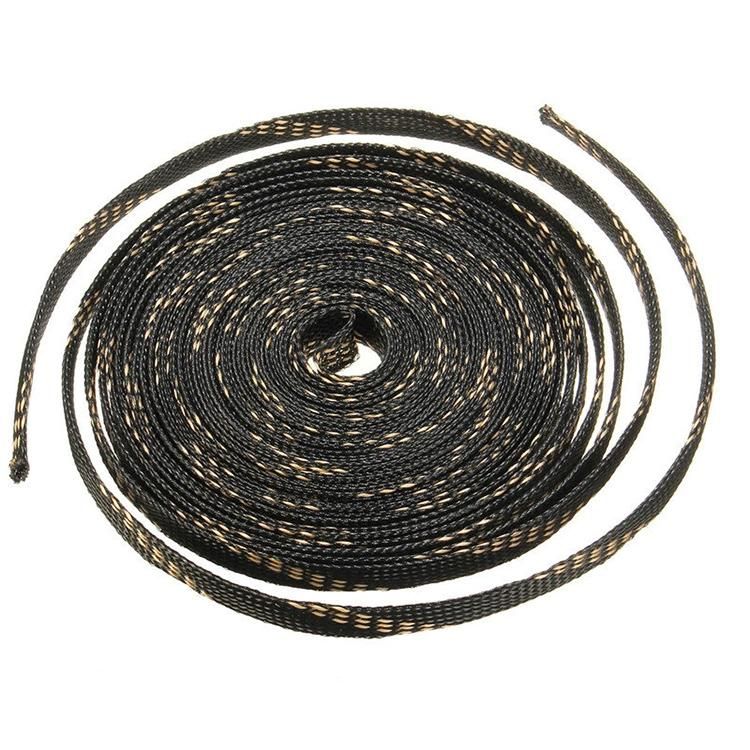

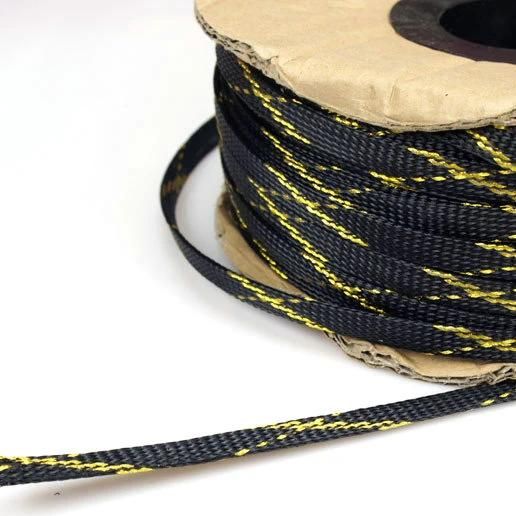

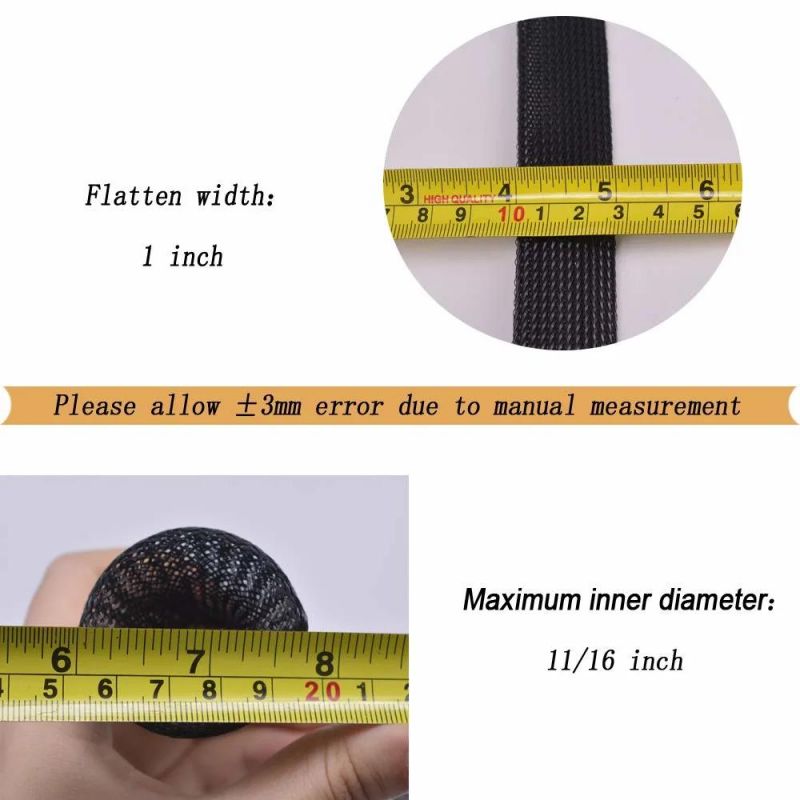

Detail Pictures:

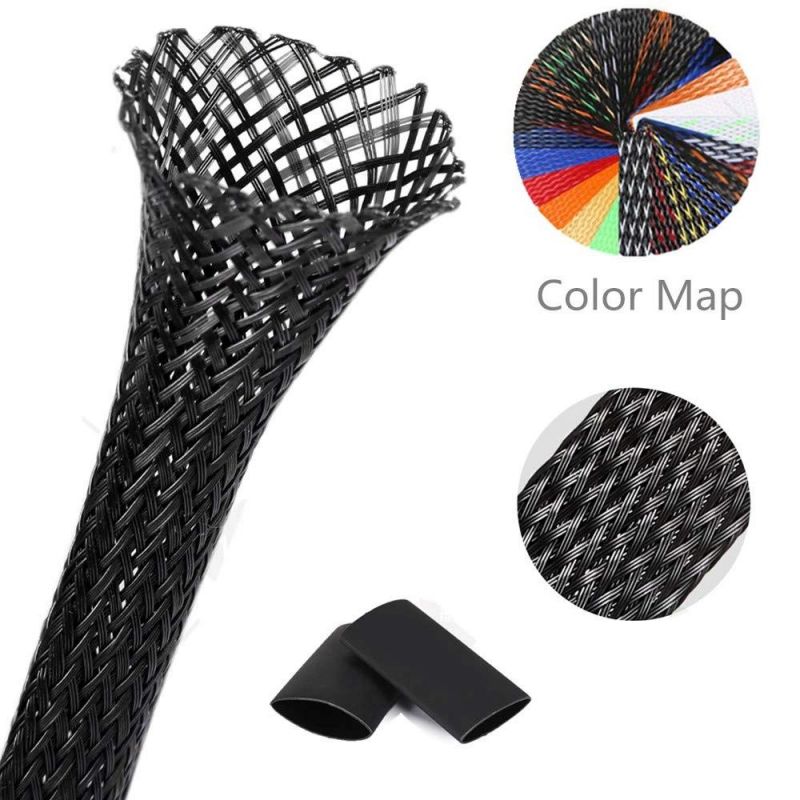

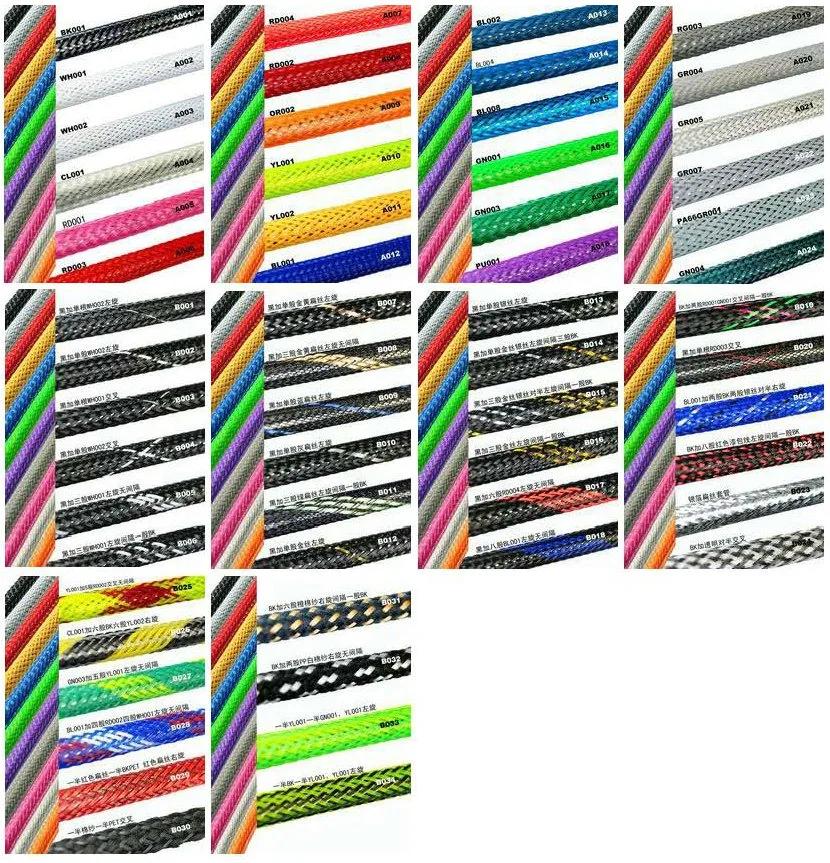

Color Guide:
Customer feedback

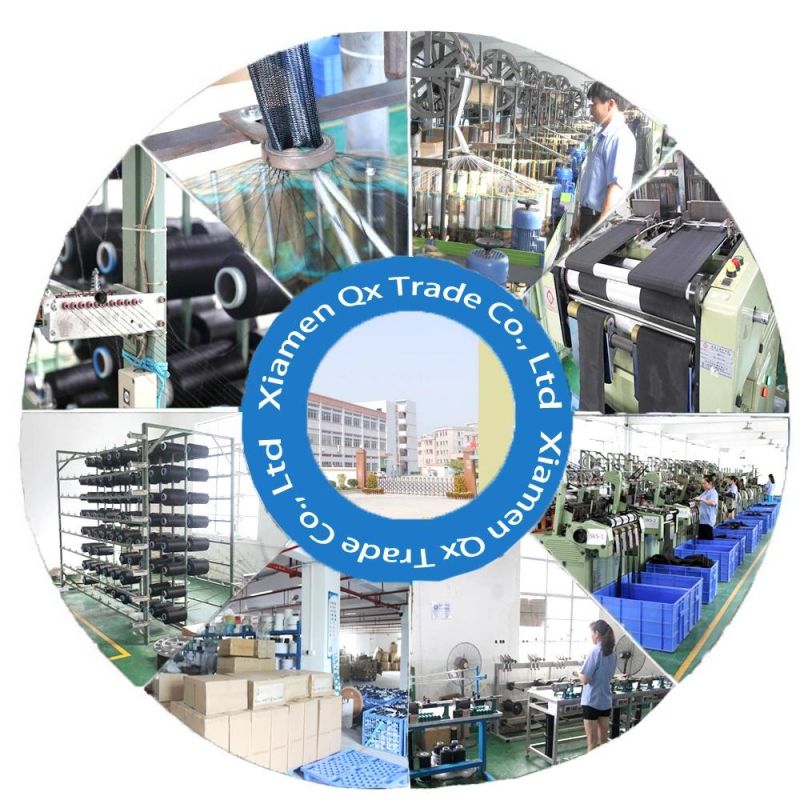

Company introduction
