• Model NO.：Cable Tray
• Surface Treatment：Hot Galvanizing
• Material：Carbon Steel
• Type：Ladder
• Transport Package：Pallet
• Specification：100cm*100cm*80cm
• Trademark：INNOVAAT
• Origin：China
• HS Code：730890
• Production Capacity：5000PCS,Week
• Package size per unit product：200.00cm * 112.00cm * 83.00cm
• Gross weight per unit product：200.000kg

Basic Info.

Model NO. Cable Tray Surface Treatment Hot Galvanizing Material Carbon Steel Type Ladder Transport Package Pallet Specification 100cm*100cm*80cm Trademark INNOVAAT Origin China HS Code 730890 Production Capacity 5000PCS/Week

Packaging & Delivery

Package size per unit product 200.00cm * 112.00cm * 83.00cm Gross weight per unit product 200.000kg

Product Description

PERFORATED CABLE TRAY
Perforated cable tray has a similar structure with the cable trunking. There are a series of holes on the bottom and side walls. It has different hole patterns, such as oval, slot, round and other types. The holes make the perforated cable tray a good air circulation and heat dispersion.

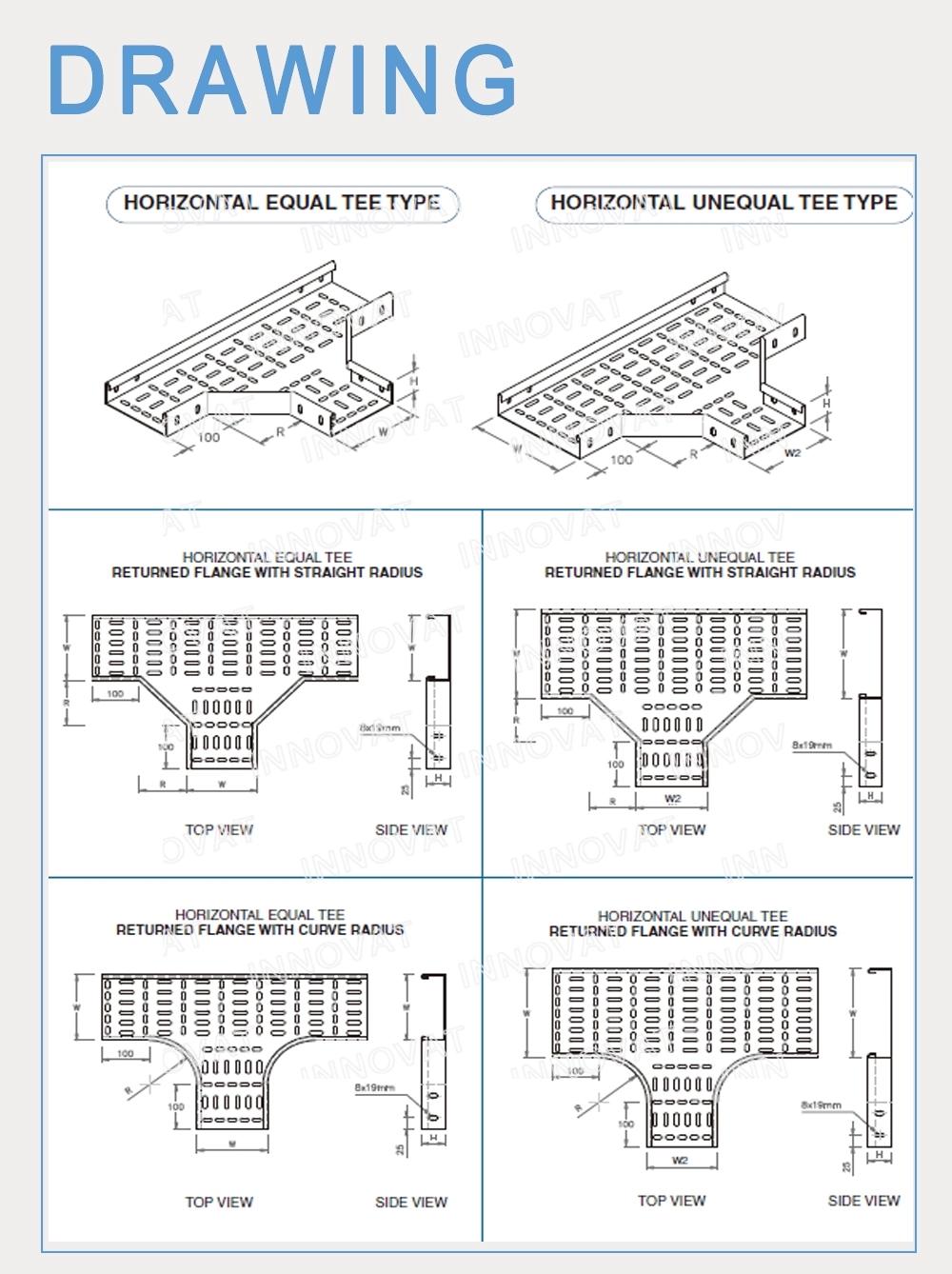

Perforated cable tray has different types according to different side walls. The main side walls can be R type inside flange, R type outside flange, C type inside flange, C type outside flange and P type. The various types can let the perforated cable tray suit more applications and supply more choice for the customers.

Material	Steel or Customized vertical metal strut cable tray
Width	50mm, 100mm, 150mm, 200mm, 250mm, 300mm,450mm, 600mm, or as you required.
Height	15mm, 50mm, 75mm, 100mm, or as you required.
Length	3000mm, 6000mm, or as you required.
Thickness	0.8mm, 1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, 3mm, or as you required.
Raw Materials	Q235, SS304, SS316, Aluminum, FRP
Surface Finish	Hot Dipped Galvanized - for outdoor use to BS EN 1461-1999Electro zinc plated - for indoor use to BS EN 12329-2000 Electrolytic Polishing - for stainless steel use Powder coating-for indoor and ourdoor use

Different sizes, forms and fitting for your demands
Specially engineered for cable protection and good ventilation
Heavy load, simple structure
Beautiful finish, optimum quality
Good air circulation, water drainage or dust free falling

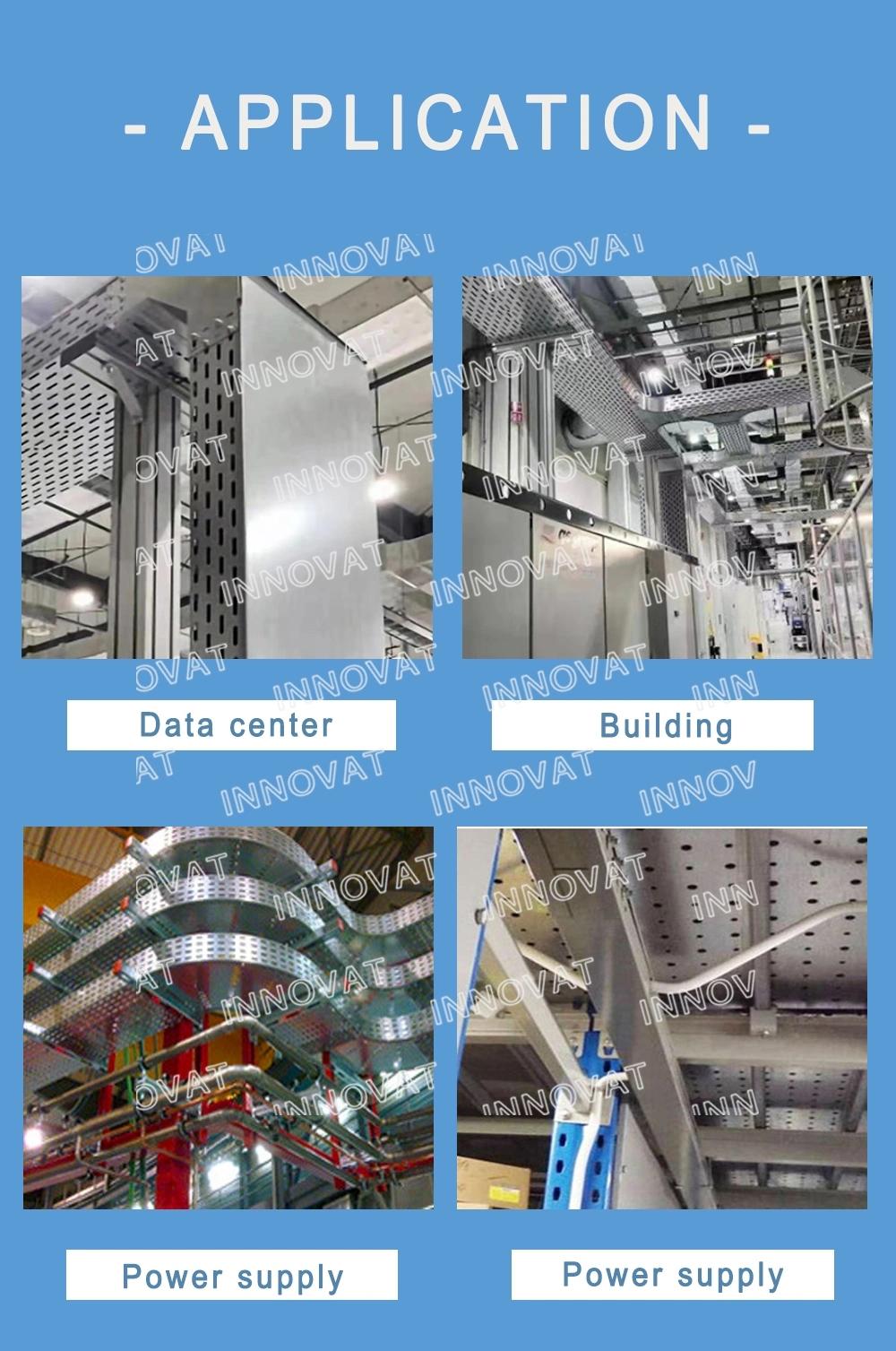

Suitable for electrical, network and fibre cables, etc
Quick and flexible cable deployment

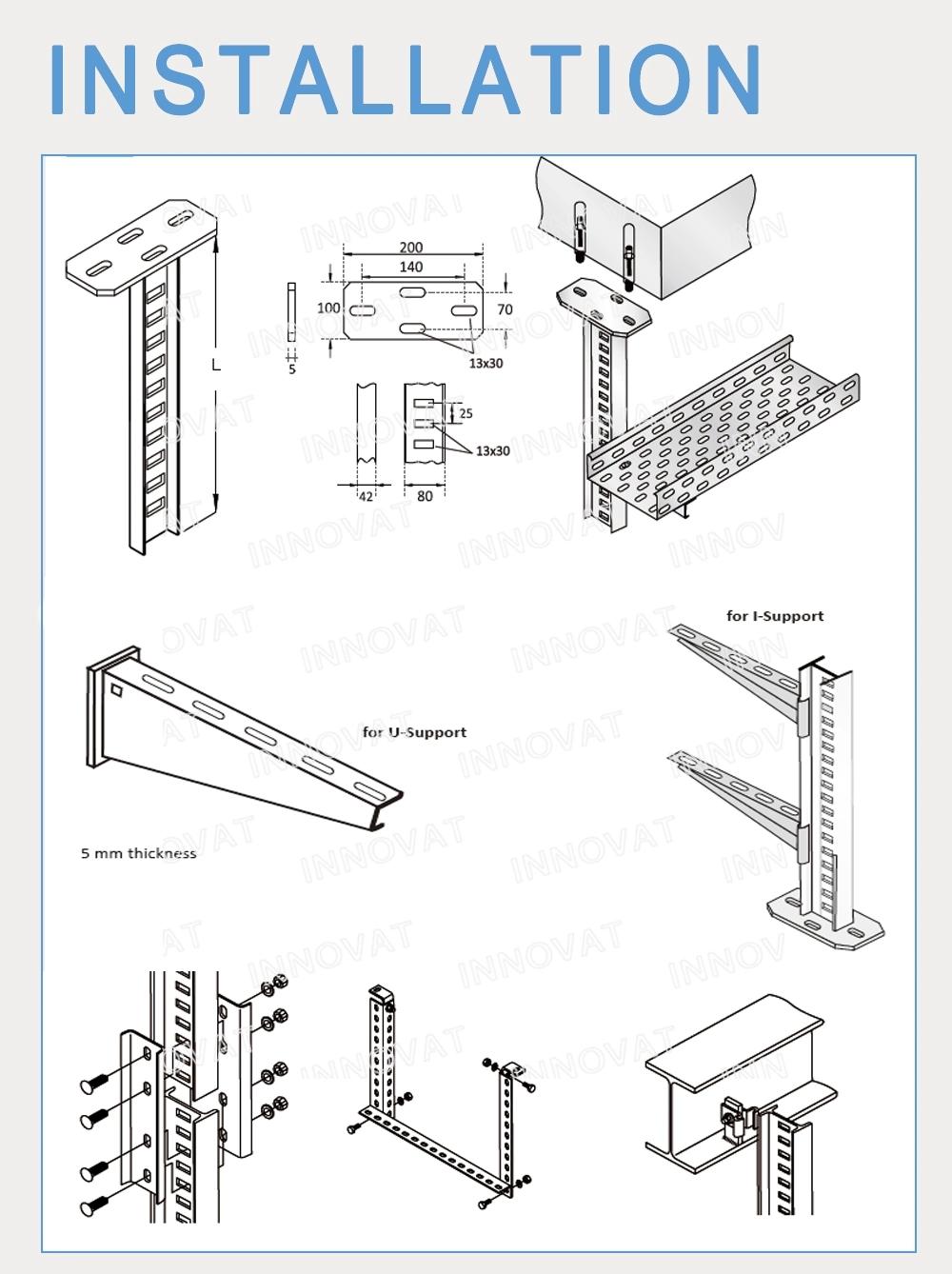

Easy to install and fix with brackets
ODM or OEM are available
High quality, competitive factory price
