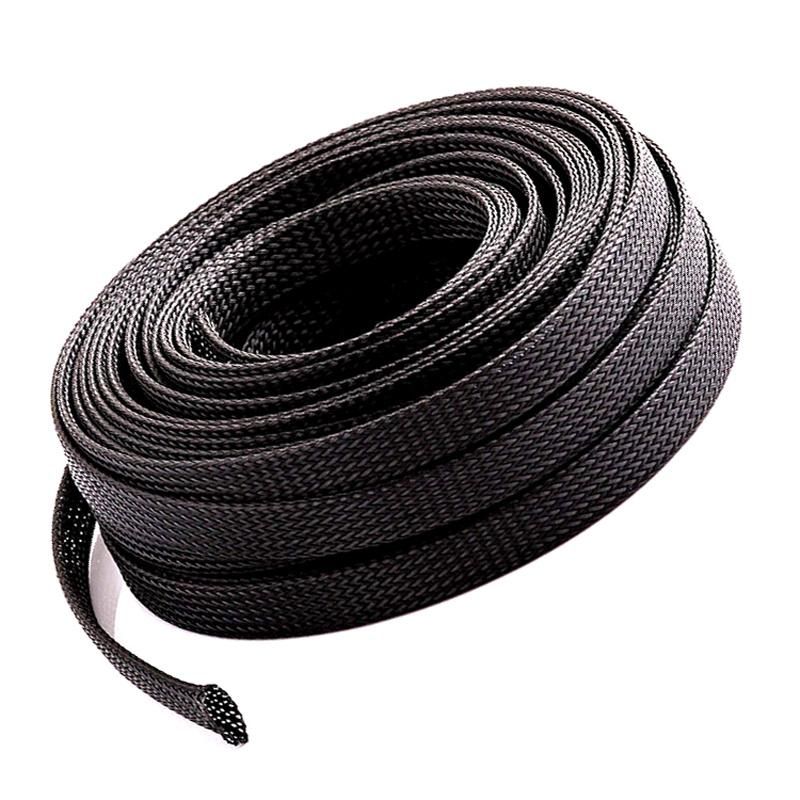

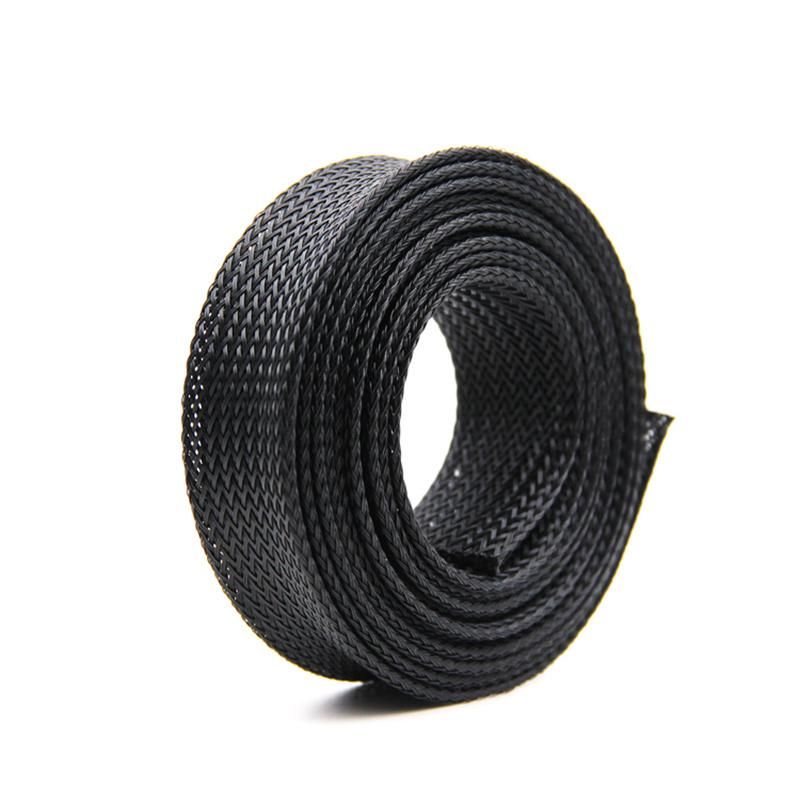

Black Pet Expandable Braided Electrical Cable Mesh Insulation Sleeving
Xiamen QX Trade Co., Ltd.- Certification:CSA, UL, RoHS
- Color:Black
- IP Rating:VW-1
- Usage:Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
- Material:Plastic
- Type:Cable Sleeve
Base Info
- Model NO.:BS-PET
- Products:Pet Expandable Braided Sleeving
- Condition:New
- Flame Retardant:Normal
- Classification:Pet Braided Expandable Electrical Cable Sleeve
- Available Size:3mm~100mm Flat Width
- Standard Color:Black, Grey
- Keywords:Braided Cable Sleeve

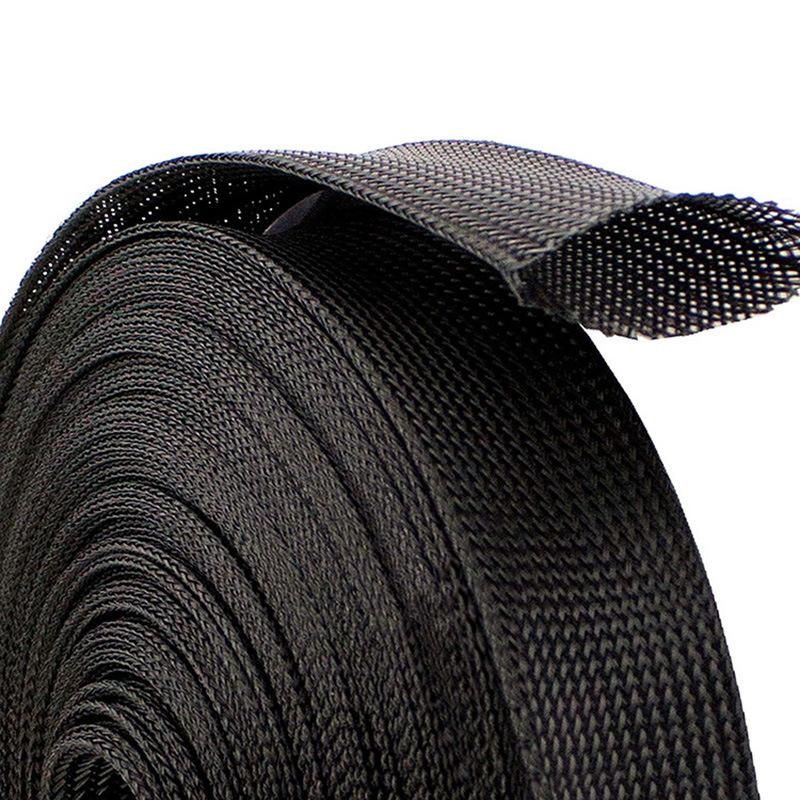

- Transport Package:500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification:3mm to 100mm Flat Width
- Trademark:EKO
- Origin:Fujian, China
- HS Code:4602900000
- Production Capacity:3000000 M,Month
Description
Basic Info.
Model NO. BS-PET Products Pet Expandable Braided Sleeving Condition New Flame Retardant Normal Classification Pet Braided Expandable Electrical Cable Sleeve Available Size 3mm~100mm Flat Width Standard Color Black, Grey Keywords Braided Cable Sleeve Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark EKO Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/MonthProduct Description

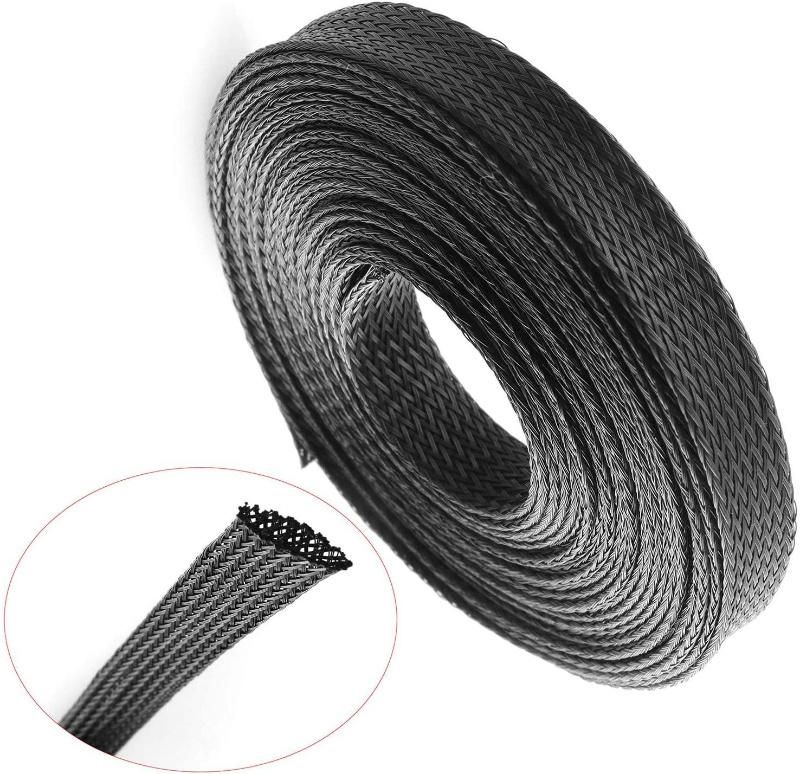

PET Braided Expandable Sleeving Electrical Cable SleeveProduct feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable
abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.

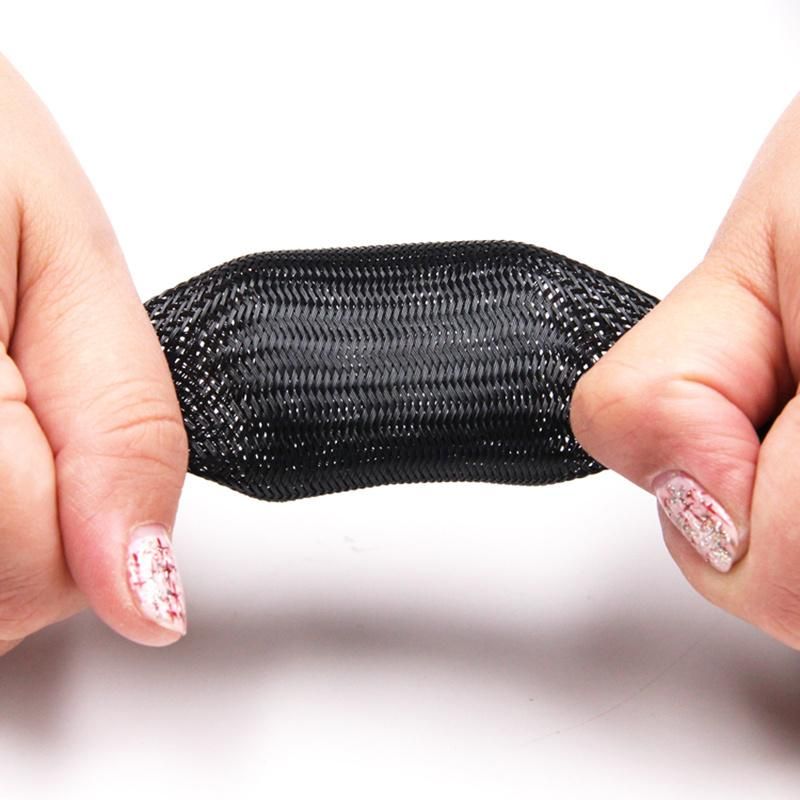

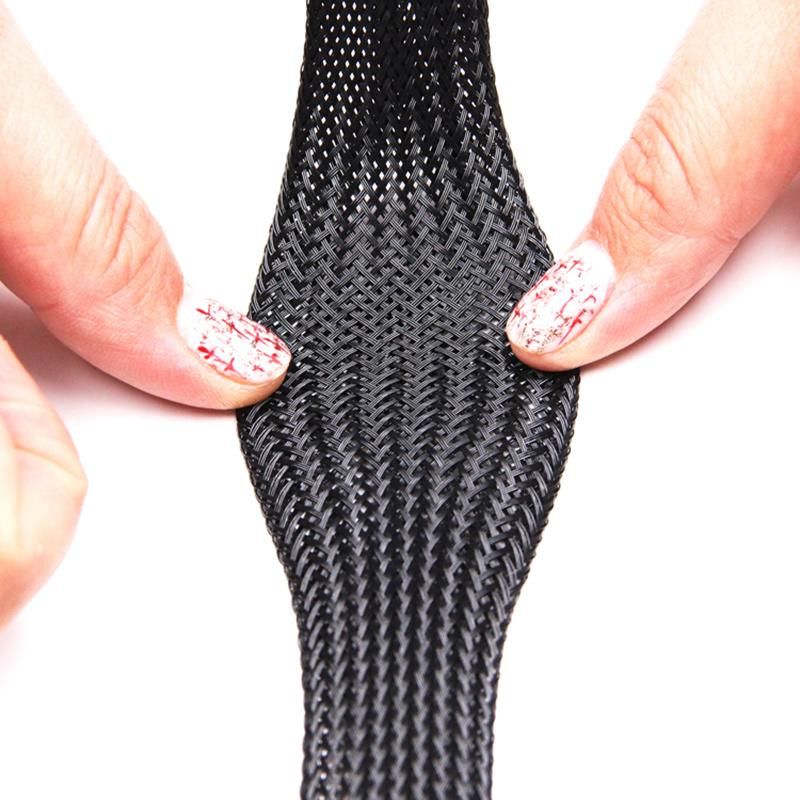

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even
if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers
requirements.
Technical data:
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC +-5ºC
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife
Application:

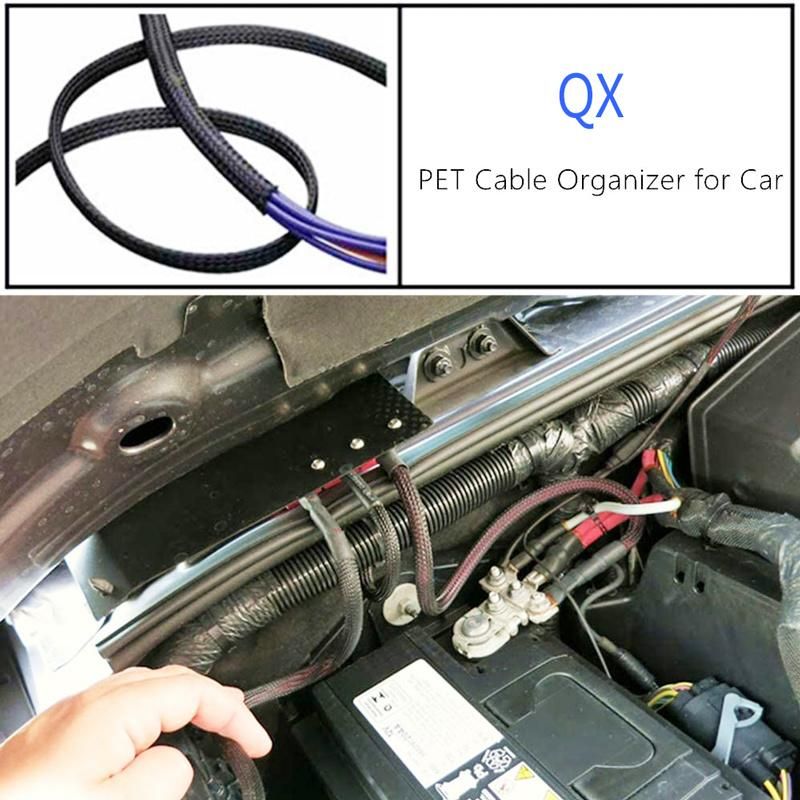

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic
equipment, where is required an additional protection.

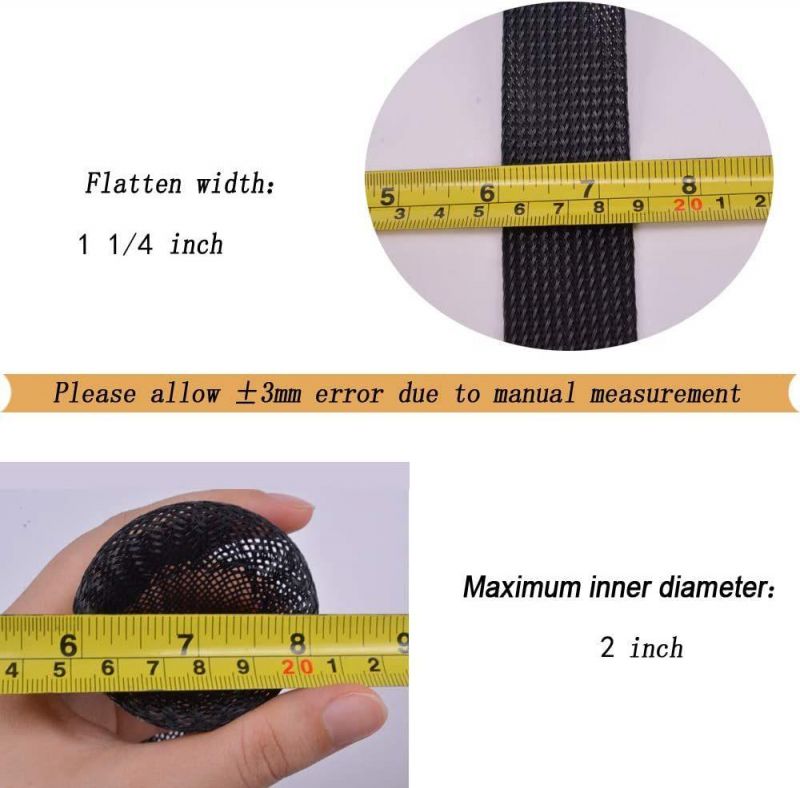

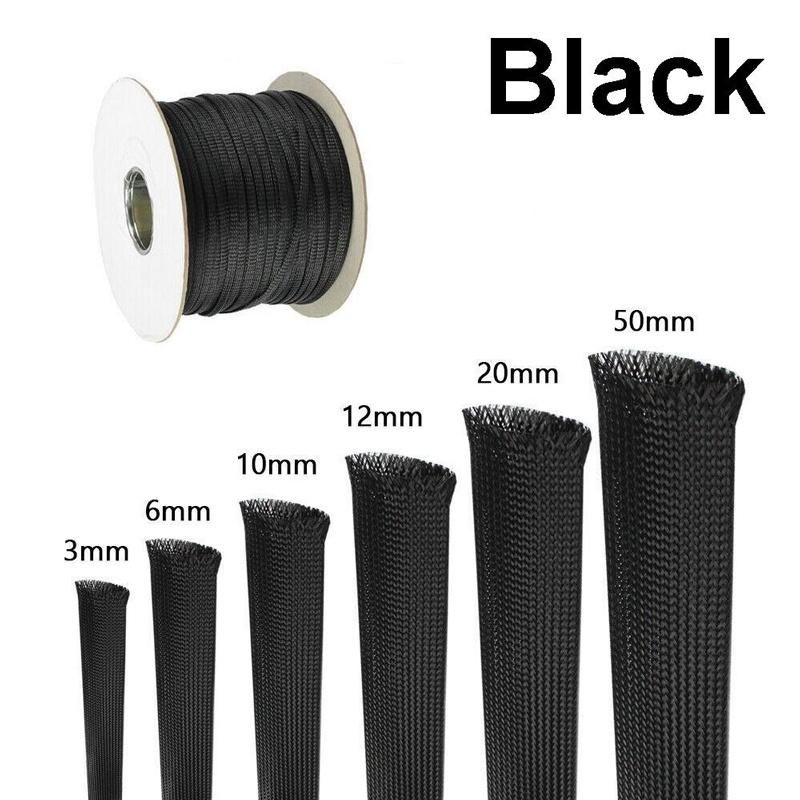

Part No | Size | Expanded Range(mm) | Packing (L) | |
Flat width(mm) | Min(I) | Max.(O) | M/spool | |
BS-PET003 | 3 | 1 | 6 | 1000 |
BS-PET006 | 6 | 3 | 9 | 500 |
BS-PET008 | 8 | 5 | 16 | 350 |
BS-PET010 | 10 | 7 | 19 | 350 |
BS-PET012 | 12 | 8 | 24 | 300 |
BS-PET016 | 16 | 10 | 27 | 250 |
BS-PET019 | 20 | 14 | 30 | 200 |
BS-PET025 | 25 | 18 | 35 | 200 |
BS-PET032 | 32 | 20 | 50 | 150 |
BS-PET038 | 38 | 30 | 60 | 100 |
BS-PET045 | 45 | 35 | 75 | 100 |
BS-PET050 | 50 | 40 | 80 | 100 |
BS-PET064 | 64 | 45 | 105 | 100 |
BS-PET076 | 76 | 64 | 120 | 100 |
