• Model NO.：PG,M
• Flame Retardant：High
• Customized：Accept
• Condition：New
• Transport Package：Standard Packing
• Specification：PG,M
• Trademark：JMA
• Origin：China
• HS Code：3917400000
• Production Capacity：1000000000PCS

Basic Info.

Model NO. PG/M Flame Retardant High Customized Accept Condition New Transport Package Standard Packing Specification PG/M Trademark JMA Origin China HS Code 3917400000 Production Capacity 1000000000PCS

Product Description

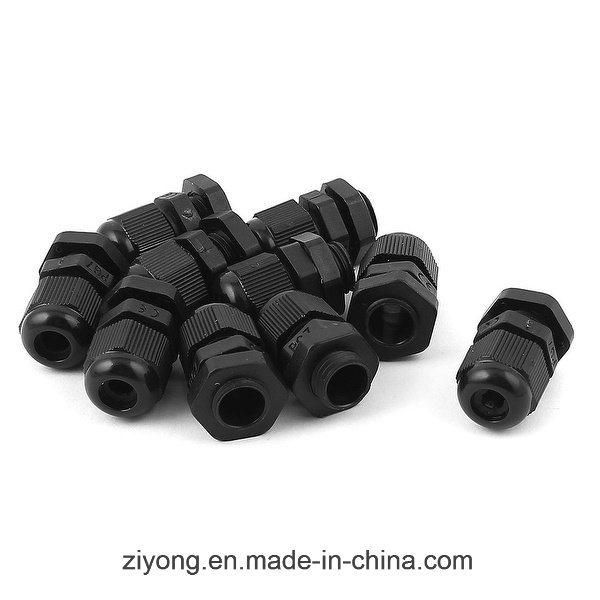

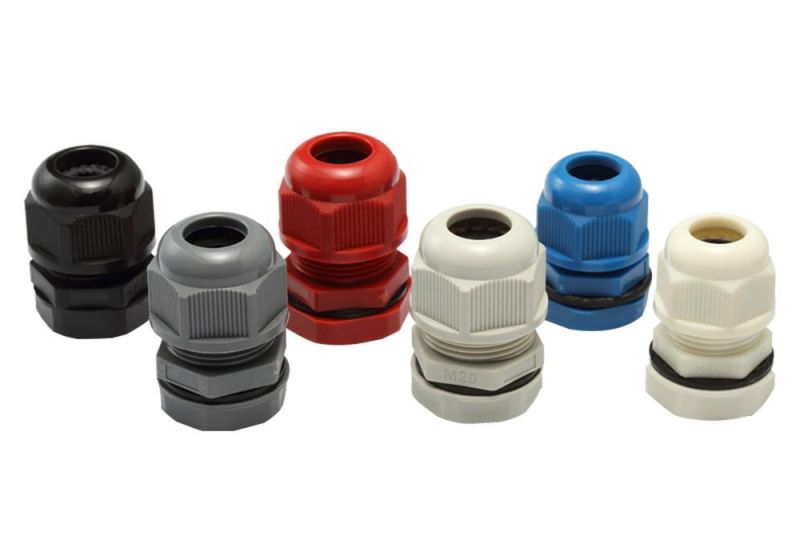

Product show

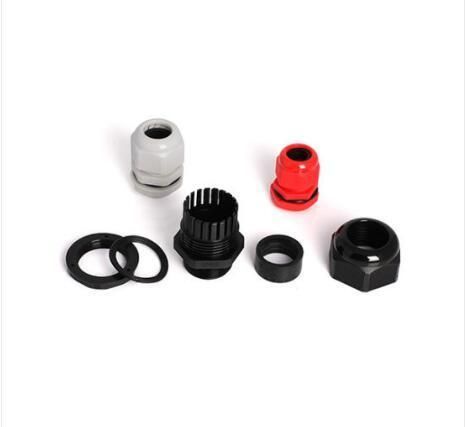

Material: Parts A, C, E are made of UL approved nylon PA66, parts B and D are made of nitrile butadiene rubber (NR).
spec.: Metric, PG, G, NPT.
Working temperature: -40 to 100 in static state, instantaneous heat resistance up to 120; -20 to 80 in dynamic state, instantaneous heat resistance up to 100.
Characteristics: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high
Ability to resist salt, acid, alkali, alcohol, grease and general solvent.
Color: Black, white, grey as well as special colors that can be designed at request.


Our Advantages
1. Professional manufacturer price for 7 years
2. Factory price with competitive quality
3. On time delivery
4. Accept customer order, available in thickness and package
5. Flexible payment
6. The logo as you required
7. The color and the design all can be customized
Basic data

Model	Thread size	Cable Range     (mm)	Thread O.D    L2(mm)	Thread Lenghth           (mm)	Spanner Size A&E        (mm)	Qty/bag
M8	M8×1.25	2.5-4.5	8	8	13/12	100
M8	M8×1.25	1-2.5	8	8	13/12	100
M10	M10×1.5	3-6	10	8	15/13	100
M10	M10×1.5	1.5-3	10	8	15/13	100
M12	M12×1.5	3-6.3	12	9	18/16	100
M12	M12×1.5	2-5	12	9	18/16	100
M16	M16×1.5	4-8	16	9	22/19	100
M16	M16×1.5	2-6	16	9	22/19	100
M18	M18×1.5	5-10	18	10	24/22	100
M18	M18×1.5	3-7	18	10	24/22	100
M20	M20×1.5	6-11	20	10	27/24	100
M20	M20×1.5	5-9	20	10	27/24	100
M22	M22×1.5	10-13	22	10	30/27	100
M22	M22×1.5	7-12	22	10	30/27	100
M24	M24×1.5	12-15	24	10	30/28	100
M24	M24×1.5	10-12	24	10	30/28	100
M25	M25×1.5	13-18	25	11	31/28	100
M25	M25×1.5	9-16	25	11	31/28	100
M27	M27×1.5	13-18	27	12	35/33	100
M27	M27×1.5	9-16	27	12	35/33	100
M28	M28×1.5	16-21	28	12	35/33	100
M28	M28×1.5	13-18	28	12	35/33	100
M30	M30×1.5	16-21	30	12	37/35	50
M30	M30×1.5	13-18	30	12	37/35	50
M32	M32×1.5	18-25	32	12	38/35	50
M32	M32×1.5	13-20	32	12	38/35	50
M36	M36×1.5	22-32	36	12	45/42	50
M36	M36×1.5	20-36	36	12	45/43	50
M40	M40×1.5	22-32	40	15	52/52	20
M40	M40×1.5	20-26	40	15	52/53	20
M46	M46×1.5	22-32	46	15	58/52	20
M46	M46×1.5	20-26	46	15	58/52	20
M50	M50×1.5	32-38	50	18	62/58	20
M50	M50×1.5	25-31	50	18	62/58	20
M58	M58×1.5	37-44	58	18	70/64	20
M58	M58×1.5	29-35	58	18	70/64	20
M63	M63×1.5	37-44	63	18	72/64	20
M63	M63×1.5	29-35	63	18	72/64	20
M71	M71×1.5	42-50	71	30	83/77	10
M71	M71×1.5	32-40	71	30	83/77	10

Quality guaratee
Strict quality controls have been taken to ensure that you'll get reliable products.
A. Material checks before production.
B. Random inspection during production.
C. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI, CE, RoHS



FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.
