• Model NO.：PCL011
• Width：50mm-1200mm or or According to Requirements
• Side Rail Height：50mm-200mm or According to Requirement
• Length：2meters-6meters or According to Requirements
• Max.Working Load：30-400kgs, According to Size
• MOQ：for Standard Size, Available for All Quantity
• Supply Ability：100000meters Per Month
• Business Type：Manufacturing and Trading in One
• Materials：Polymer Alloy,Polymer Composite,Plastic
• Lead Time：10-20days
• Shape：U Shape
• Trade Terms：Fob,CIF,CFR,EXW,DDU,DDP...
• Sample：Provided Freely
• Color：Customized
• Transport Package：According to Requirements
• Specification：300*150mm
• Trademark：Hesheng
• Origin：China
• HS Code：3925900000
• Production Capacity：100000 Meters Per Month

Basic Info.

Model NO. PCL011 Width 50mm-1200mm or or According to Requirements Side Rail Height 50mm-200mm or According to Requirement Length 2meters-6meters or According to Requirements Max.Working Load 30-400kgs, According to Size MOQ for Standard Size, Available for All Quantity Supply Ability 100000meters Per Month Business Type Manufacturing and Trading in One Materials Polymer Alloy,Polymer Composite,Plastic Lead Time 10-20days Shape U Shape Trade Terms Fob,CIF,CFR,EXW,DDU,DDP... Sample Provided Freely Color Customized Transport Package According to Requirements Specification 300*150mm Trademark Hesheng Origin China HS Code 3925900000 Production Capacity 100000 Meters Per Month

Product Description

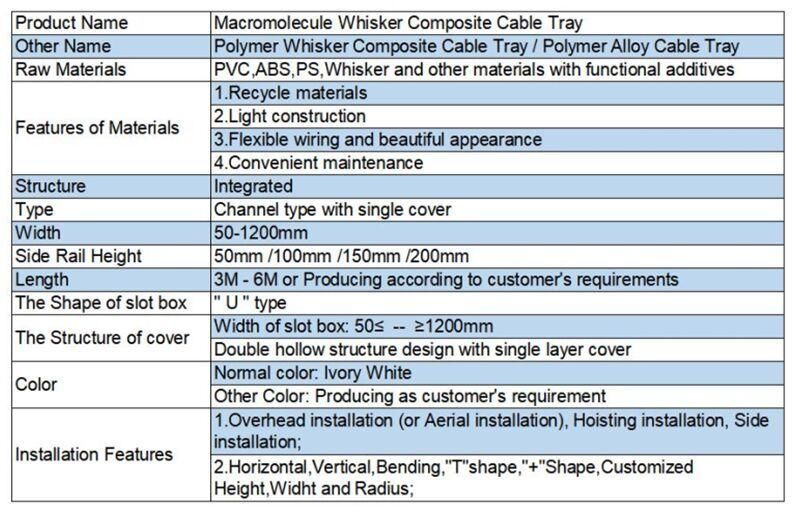

Polymer Whisker Composite Cable Tray Description

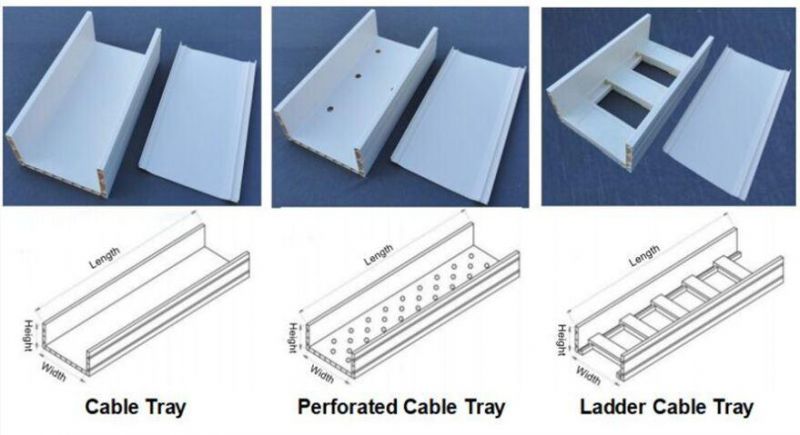

 The Polymer Whisker Composite Cable Tray developed by Hesheng Group, according to the ul568 standard of the United States. It has trough type cable tray,ladder cable tray,perforated cable tray and bend components. adopts double hollow structure design and double-layer co extrusion process. According to the mechanical structure principle, the double-layer hollow structure can reduce the dead weight of the product, strengthen the bearing capacity, and play a good heat dissipation effect. The application of double-layer co-extrusion process greatly improves the product anti-aging Chemical, anti ultraviolet performance, prolong the service life of the product, at the same time by special technology made of matte surface, more solid and wear-resistant. The product has passed the national quality supervision and Inspection Center for electric control and distribution equipment. It has the advantages of high strength, corrosion resistance, anti-aging, light weight, strong flame retardant, insulation, water resistance, easy installation, long service life, green environmental protection and many other advantages. It is a product of upgrading the conventional cable tray, and can completely realize "replacing steel with plastic".

Polymer whisker cable tray is suitable for laying power cable, control cable, computer cable, lighting wiring, indoor and outdoor overhead, cable trench, cable tunnel, petrochemical, power, construction and other fields.

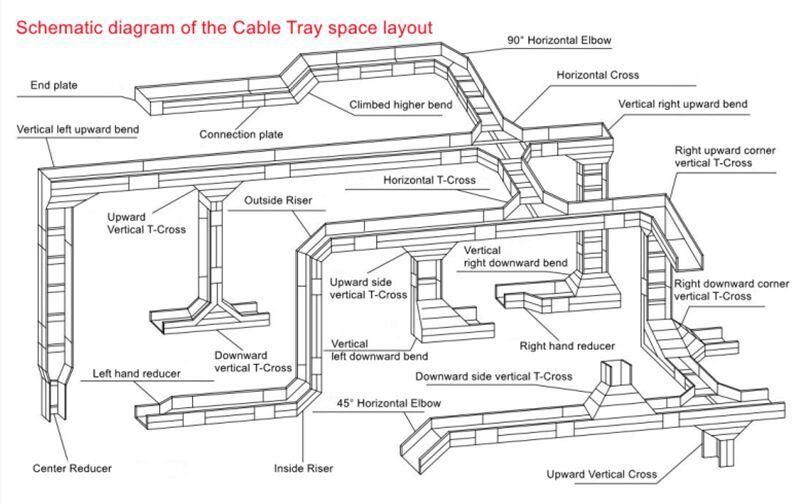

Schematic diagram of the Polymer Whisker Composite Cable Tray space layout

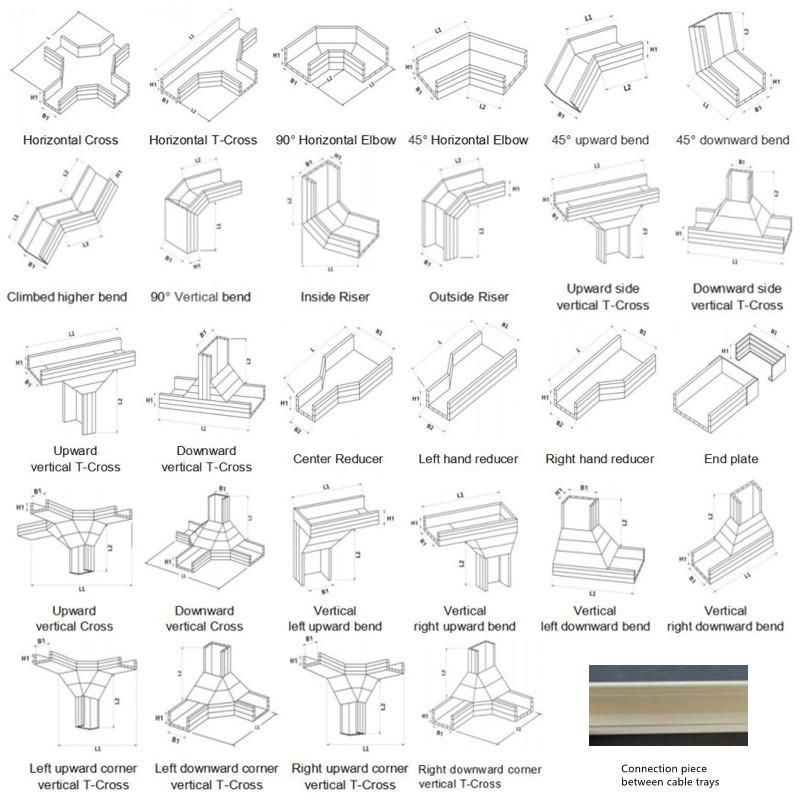

Bending components

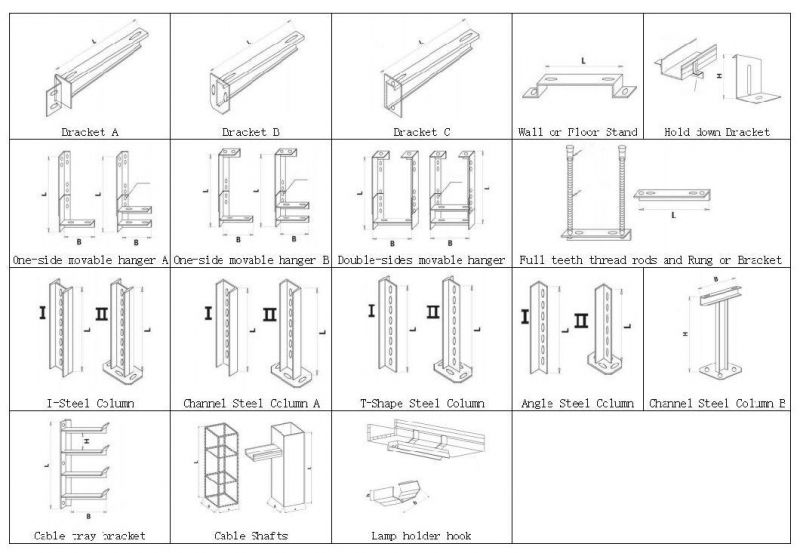

Brackets and fittings
Ten Superiority for Polymer Whisker Composite Cable Tray

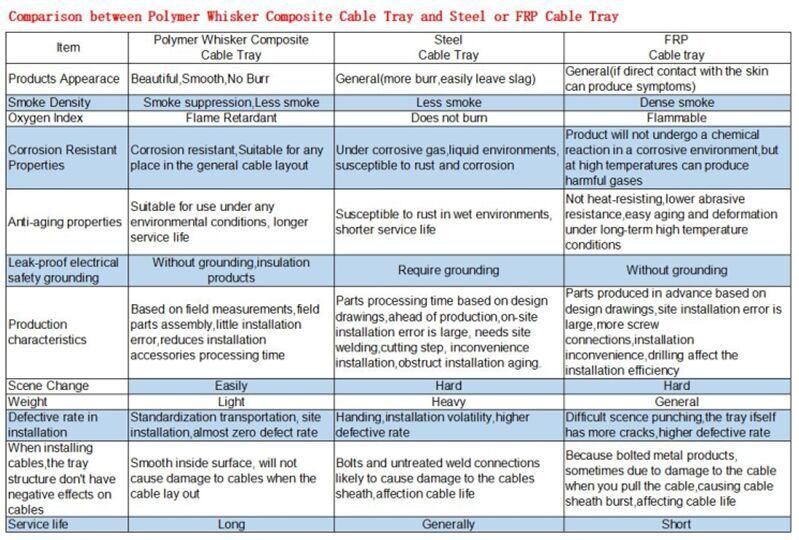

Comparison between Polymer Whisker Composite Cable Tray and Steel or FRP Cable Tray

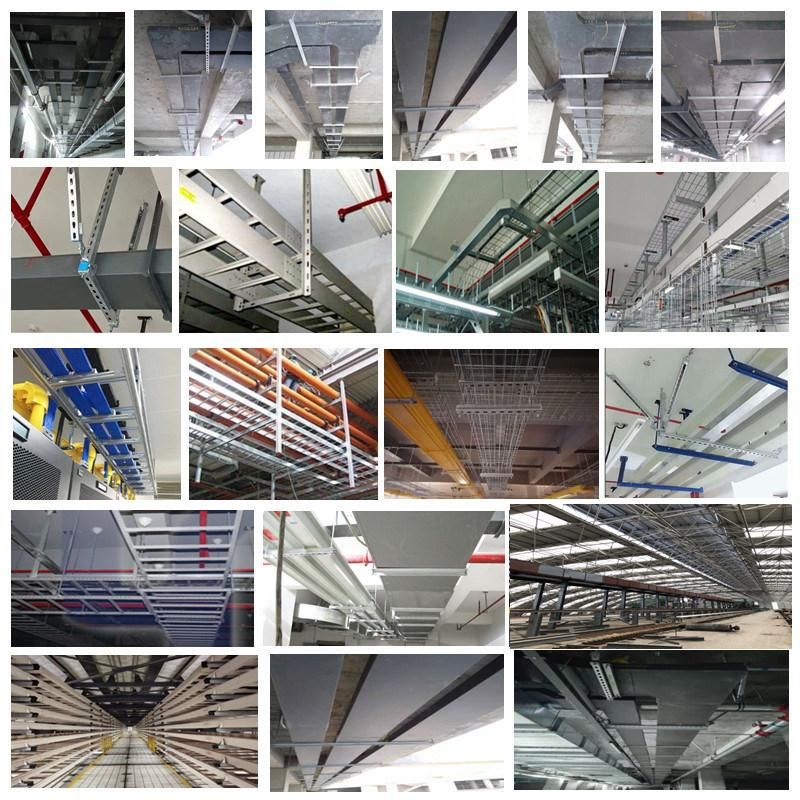

Engineering Case

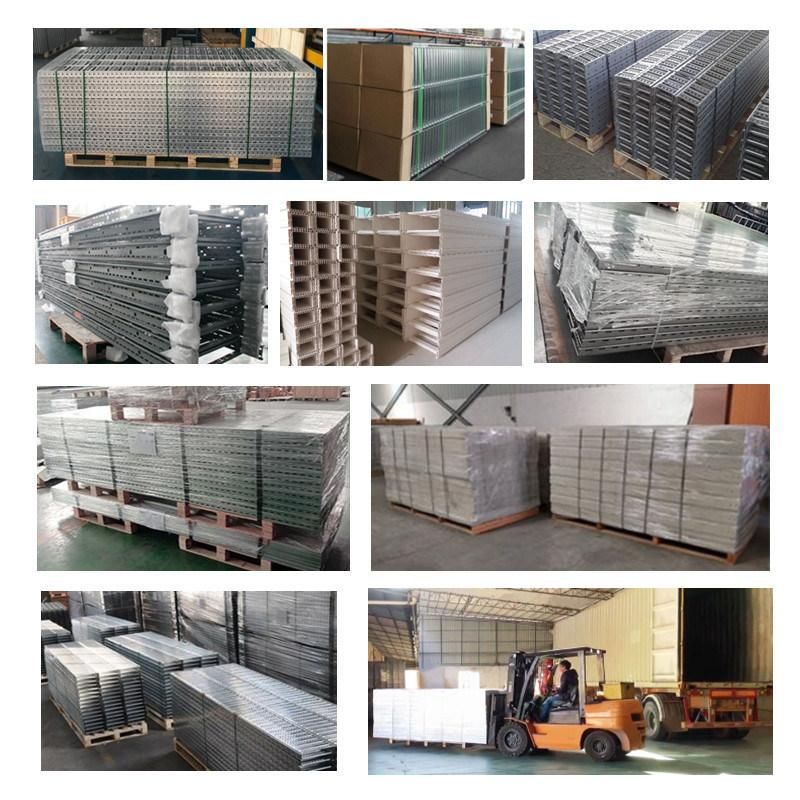

Packing and Delivery for Cable tray
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements

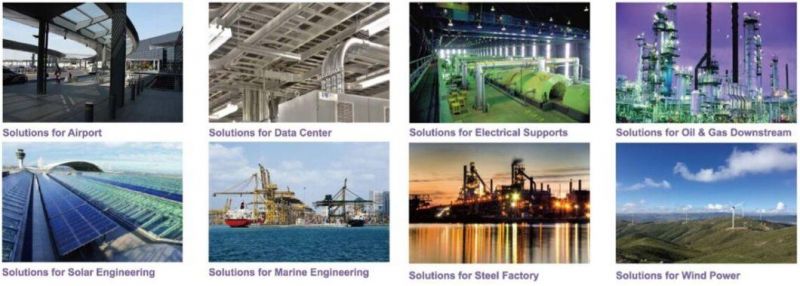

Application Cable Tray Support System has been applied in lots of Area, Below is reference

FAQ
Q: Are you a factory or a trading company?
A:We not only have our own factories but also have shares in some other enterprises.

Q:What services you can offer?
A:We are manufacturer with a range of electrical and network cable tray systems , you can enjoy the one-stop shopping service from our company.Quality and cost driving manufacturer with ISO9001,CE,NEMA,UL,SGS certificated to provide customers reliable products with most competitive price.

Q:How can you make commitment passing the test?
A:We have professional lab to do below test:
a.safe loading test
b.galvanized thickness test
c.salt spray test
d.electrical continuity

Q: Can you provide samples?
A: Yes ,you can get the free samples.

Q: What is your payment terms?
A: 30% T/T deposit,balance will be paid before shipment or against the copy of B/L;

Q: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 15-25days.

Q: Why do choose us?
A:

Cable Tray Official Certificates Worldwide

We has been certified by ISO9001 in China, UL in U.S.A and CE in E.U. with professional design and extremely well production techniques. These certifications are our first step into the International market.

Cable Tray Production Flow Strictly Managed

Our Factory has various types of CNC machines, high quality modeling machines, processing equipment, which provides the most powerful guarantee for high quality products.

Cable Tray Quality Traceability System Maintained

In order to serve high quality products, it is essential to test the manufactured products before delivery. In this session, Our factory develops the most stringent testing procedures, and trains factory inspectors besides its already high level product inspection equipment.
