• Model NO.：TKS-1806-02A
• Application：3mm or Figure 8 (2*3mm) Cable
• Material：PC+ABS
• Size：86*86*24
• Adaptor Type：Sc
• Insertion Loss：0.2dB
• Output：2 Ports
• Transport Package：Plastic Bag
• Specification：CE RoHS
• Trademark：DF,Takfly or OEM
• Origin：Shenzhen, China
• HS Code：8538900000
• Production Capacity：50000,Week

Basic Info.

Model NO. TKS-1806-02A Application 3mm or Figure 8 (2*3mm) Cable Material PC+ABS Size 86*86*24 Adaptor Type Sc Insertion Loss 0.2dB Output 2 Ports Transport Package Plastic Bag Specification CE RoHS Trademark DF/Takfly or OEM Origin Shenzhen, China HS Code 8538900000 Production Capacity 50000/Week

Product Description

FTTH 2 Ports Wall Mounted Termination Outlet Box


The TKS-1806-02A is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.





Features
1. Support termination, splicing and storage for fiber optic cable systems
2. Suitable for two adapters SC configuration
3. Compatible with G.657A1 and G.657A2
4. Compact structure and perfect fiber management.
5. Engineered fiber routing protect bend radius through the unit to ensure signal integrity
6. Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.

Specifications


Parameter	Value	Remark
Model	TKS-1806-02A
Outside Dimension (mm)	86*86*24
Material	Plastic
Color	White
Storage of fibers	G.657
Splice capacity	2fiber
Splice Method	Fusion Splice	40mm sleeve
Adapter type and count	2SC
Input cable	3mm or figure 8 (2*3mm)	From side or bottom


Accessories


No.	Name	Qty.
1	Fiber splice protection sleeve	2pcs
2	Expansion bolts for the outlet	2 set
	wall-mounted

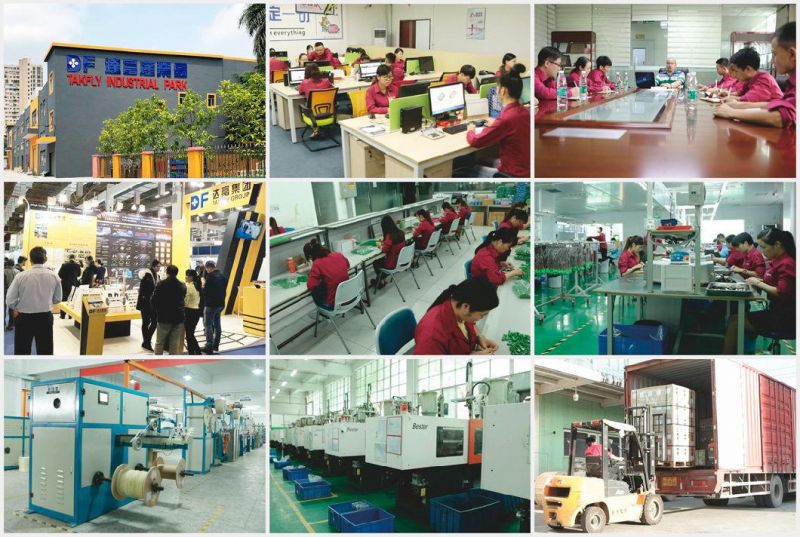

Takfly Factory and Worldwide Exhibition
