• Model NO.：BS-WS
• Operating Range：-50°c - +150°c
• Flammability：UL94 V0, DIN5510
• Wall Thickness：0.027"
• Abrasion Resistance：Medium
• Standard Color：Black
• Feature：Highly Abrasion Resistance
• Certificate：RoHS, Halogen Free
• Customized：Non-Customized
• Condition：New
• Flame Retardant：High
• Transport Package：100m,Roll, 50m,Roll, 25m,Roll or ODM
• Specification：5mm~50mm ID
• Trademark：Eko
• Origin：Fujian, China
• HS Code：630790009
• Production Capacity：3000000 M,Month

Basic Info.

Model NO. BS-WS Operating Range -50°c - +150°c Flammability UL94 V0, DIN5510 Wall Thickness 0.027" Abrasion Resistance Medium Standard Color Black Feature Highly Abrasion Resistance Certificate RoHS, Halogen Free Customized Non-Customized Condition New Flame Retardant High Transport Package 100m/Roll, 50m/Roll, 25m/Roll or ODM Specification 5mm~50mm ID Trademark Eko Origin Fujian, China HS Code 630790009 Production Capacity 3000000 M/Month

Product Description

Description
Dustproof Flexible Woven Cable Wrap around Sleeving is a non-expandable sleeving woven from monofilament(weft)and multifilament(wrap)polyester yarns. It provides a lighweight, cost-effective and tough solution for the protection of a wide range of components.Its inherent flexibility allows it to bend, coil and conform to irregular shapes,while its open design allows it to be installed on completed assemblies.

Specifications

a.  Highly abrasion resistance
b.  Fireproof, dustproof and noise reduction
c.  Flexibility
d . Easy to install

Application

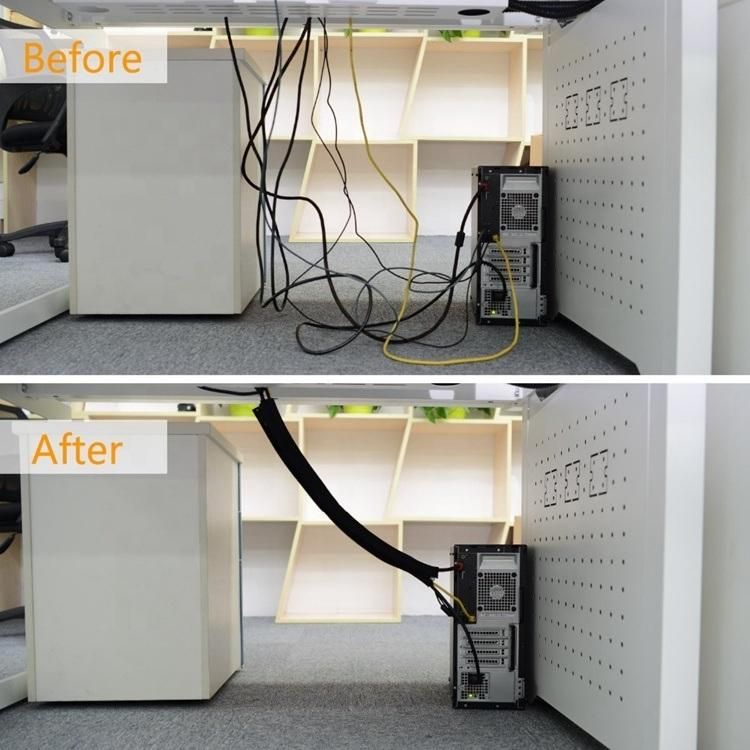

  Most commonly used over wires harnesses, cable assemblies, flat ribbon cables, tubes and hoses to provide a tough, durable protection in automotive, automatic equipment, railways and panel boards.


Technical data

Material	Polyester monofilament an multifilament
Operating range	-50C-+150C
Melt point	240+(-)10C
Flammability	UL94 V0, DIN5510
Certificate	RoHS, Halogen free
Standard color	Black
Cutting tool	Scissors
