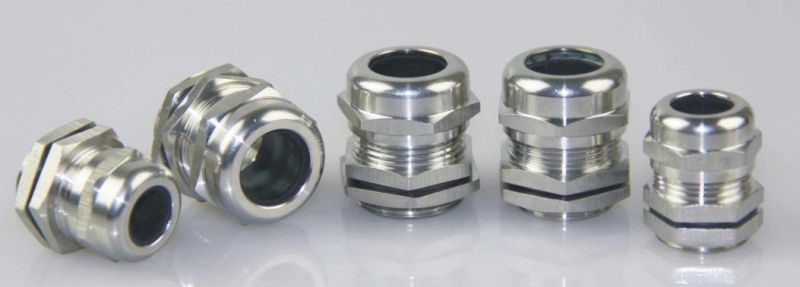

Pg13.5 Stainless Steel Waterproof IP68 Cable Entry Glands

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：Electroplating
  • Color：Metallic Color
  • IP Rating：IP68
  • Material：Stainless Steel
  • Type：Straight Head

Base Info

  • Model NO.：PG13.5
  • Cable Gland：Waterproof
  • Main Material：SS304 , SS316
  • Claw：Nylon (PA66)
  • Seal & O Ring：Rubber
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

Product Name:Waterproof cable glandMain material:SS304 / SS316Standard size:M8-M120; PG7-PG63; NPT1/4-NPT3; G1/4 -G3Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availablePg13.5 Stainless Steel Waterproof IP68 Cable Entry GlandsSizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M8x12-58512M10x13-6.510714M12x1.53-6.512714M14x1.54-814717M16x1.54-816818M18x1.55-1018820M20x1.56-1220822cM24x1.510-1424924/27M28x1.513-1828930M32x1.515-22321035.........................M100x270-8010015110PG73-6.512.5714PG94-815.2818PG115-1018.6820/21PG13.56-1220.4822PG1610-1422.5924PG2113-1828.3930/32.........................PG6342-52721578NPT1/43-6.513.6714NPT3/84-817818NPT1/26-1221.2822NPT3/413-1826.5930NPT118-2533.21140.........................NPT365-7088.61598G1/43-6.513.1714G3/84-816.6818G1/26-1220.9822G3/413-1826.4930G118-2533.21140.........................G365-7087.81594

More size information, kindly contact us directly..
We provide customization service !

Pg13.5 Stainless Steel Waterproof IP68 Cable Entry GlandsLocknut packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Pg13.5 Stainless Steel Waterproof IP68 Cable Entry GlandsPg13.5 Stainless Steel Waterproof IP68 Cable Entry Glands                                                                                    Company ShowPg13.5 Stainless Steel Waterproof IP68 Cable Entry GlandsPg13.5 Stainless Steel Waterproof IP68 Cable Entry Glands

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.Pg13.5 Stainless Steel Waterproof IP68 Cable Entry GlandsPg13.5 Stainless Steel Waterproof IP68 Cable Entry Glands

We welcome your inquiry

You can click here to start online customization for the design you want.
