• Model NO.：NL- 25 , G
• HS Code：85044030
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. NL- 25 / G HS Code 85044030 Production Capacity 10000PCS/Month

Product Description

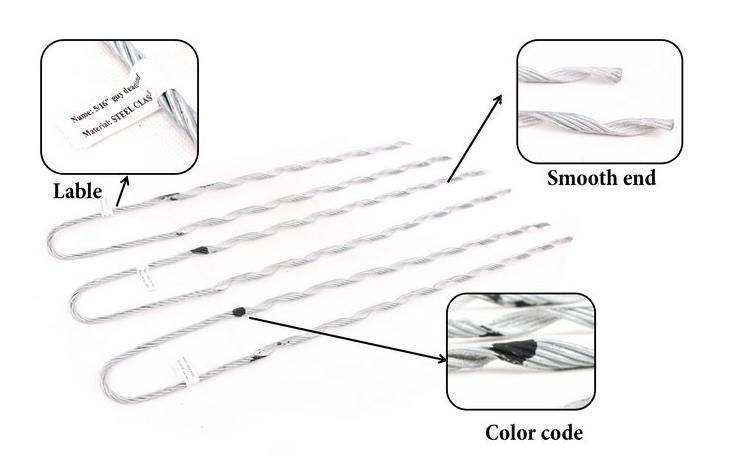

Hot Selling 1 / 4 " Preformed Guy Dead Grip Ends

Description:

Preformed dead ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The preformed dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.

Technical Data:


Cat. No.	Guy Wire (mm)	Applicable conductor size (Guy strand, mm2)	Length(mm )	Weight (kg)	Color Code
NL-25/G	6.60	25	635	0.2	Yellow
NL-35/G	7.65~7.95	35	711	0.3	Black
NL-50/G	8.95~9.30	50	901	0.5	Orange
NL-70/G	10.82~11.10	70	1016	0.8	Green
NL-95/G	12.50	95	1333	1.7	Orange
NL-100/G	13.00	100	1333	1.7	Blue
NL-120/G	14.00	120	1460	2.2	Yellow

Production Process:
