• Model NO.：WB50*100
• Name：Cable Tray
• Condition：New
• Flame Retardant：High
• Surface：Electrolytic Polishing
• Transport Package：Rding to Customers′ Requirements
• Specification：ASTM
• Trademark：Optelec
• Origin：China
• HS Code：73089000
• Production Capacity：40hq - 25 Days

Overview Product Description



Specifications
1. Focus on producing cablofil wiremesh cable tray
2. ISO9001: 2008/UL/CUL/CE, passed Rohs test
3. Easy for installastion
Description:
Cablofil wire mesh cable tray system is produced from ASTM A510 high strength steel wires. A fully automated welding process produces wire mesh, which is formed into our cable tray system.

The cablofil cable tray system is designed for maximum flexibility, allowing for easy field cutting, bending, assembly and conveninent cable drop outs.

Dimensions: (Available for customized)
Cablofil Wiremesh Cable Tray dimensions are all internal size.
Cablofil Wiremesh Cable Trays are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...
Widths: 50~1000mm.
Length: Maxiun 3000mm
Wire Diameter: 3.5~ 6.0mm

Cablofil wire mesh cable tray material:
Q235B Steel (Chinese standard steel), SS304, SS316 or SS316L

Surface Finish:(1) Electro zinc plated- for indoor use to BS EN 12329-2000(2) Hot Dipped Galvanized- for outdoor use to BS EN 1461-1999(3) Electrolytic Polishing -for stainless steel use.

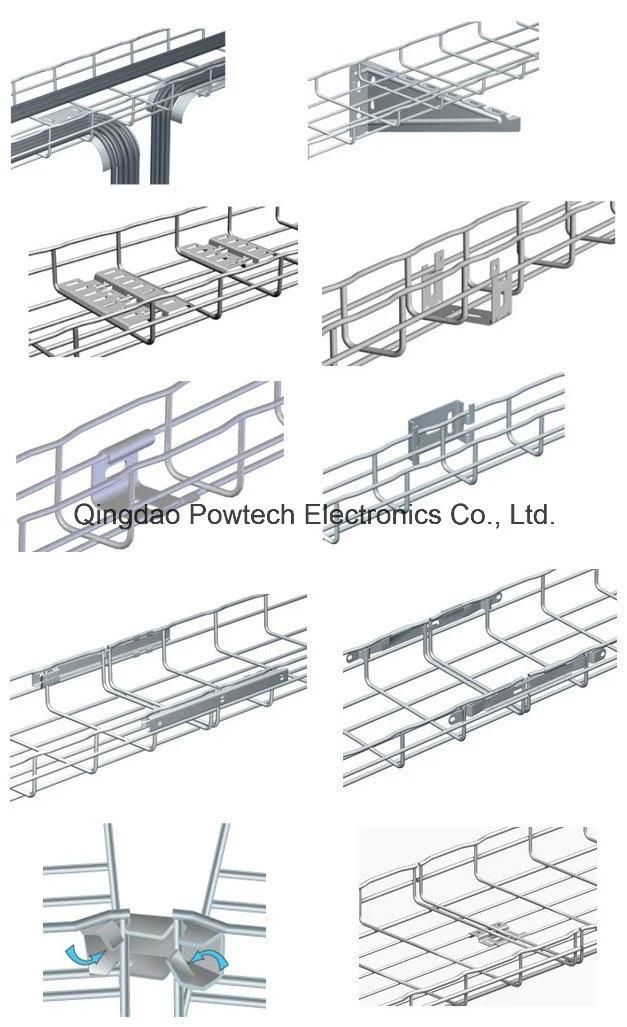

Installation Guide:

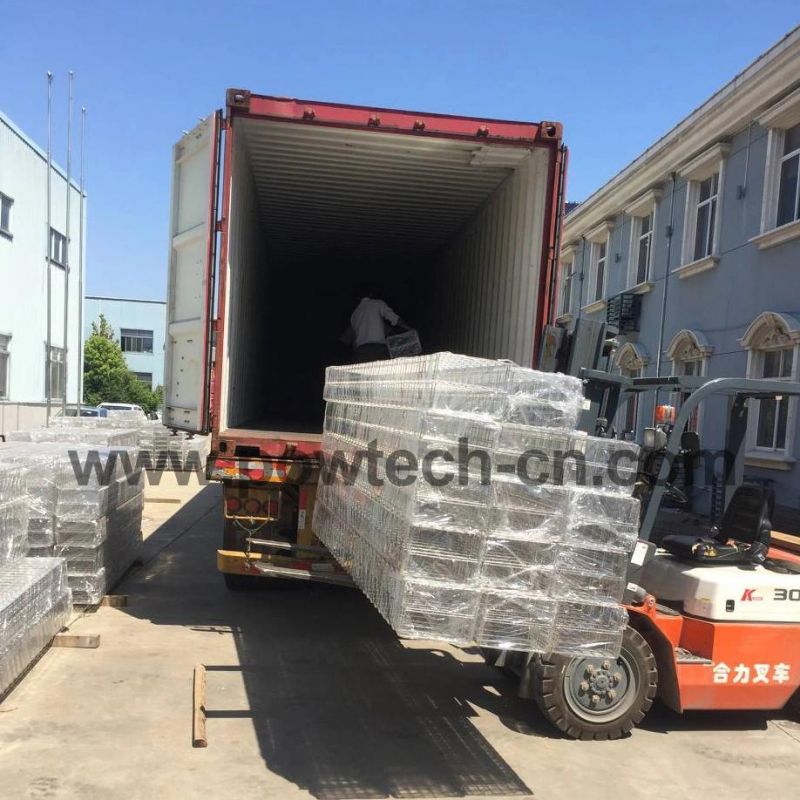

Package&shipment:


Applications:
Wire Mesh Cable Trays are mainly used for low voltage, telecommunication, and fiber optic cables supported on short Company Profile
