Hardware ADSS Cable Anchoring Clamp Universal Pole Bracket Upb
Qingdao Powtech Electronics Co., Ltd.- Name：ADSS Cable Anchoring Clamp Pole Bracket
- Jacket：PE
- Type：High Voltage
- Material：Aluminum Alloy
- Transport Package：Wooden Cartons
- Specification：CE, RoHS, SGS, ISO
Base Info
- Model NO.：UPB
- Trademark：POWTECH
- Origin：China
- HS Code：85044020
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. UPB Trademark POWTECH Origin China HS Code 85044020 Production Capacity 10000PCS/MonthProduct Description
Hardware ADSS Cable Anchoring Clamp Universal Pole Bracket Upb
Product Description

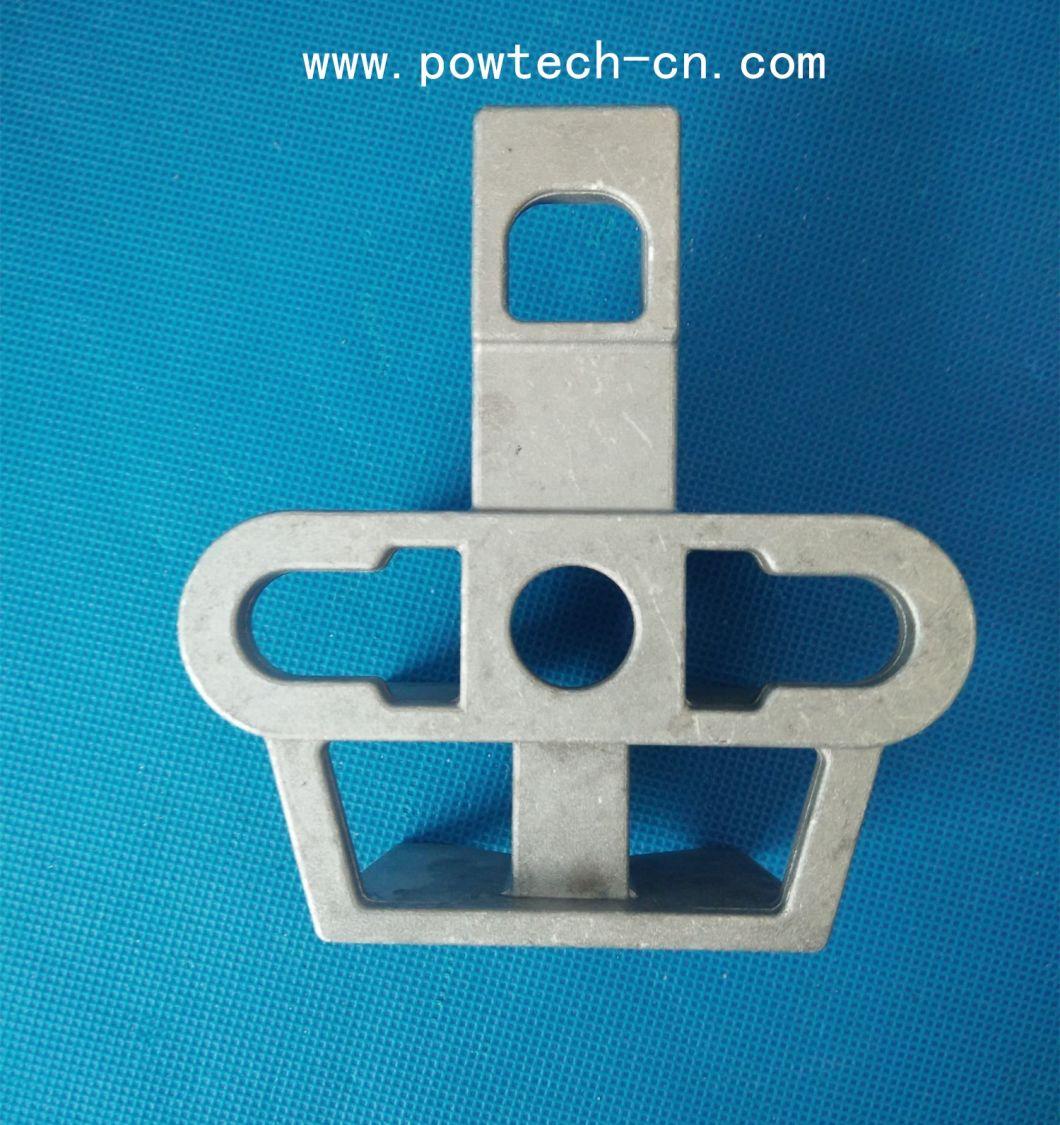

The UPB bracket is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.
Product Features:
1.Material:Aluminum alloy
2.Anti-corrosive
3.Good mechanical performance
4.ISO,CE,UV
5.Customized quantity,design

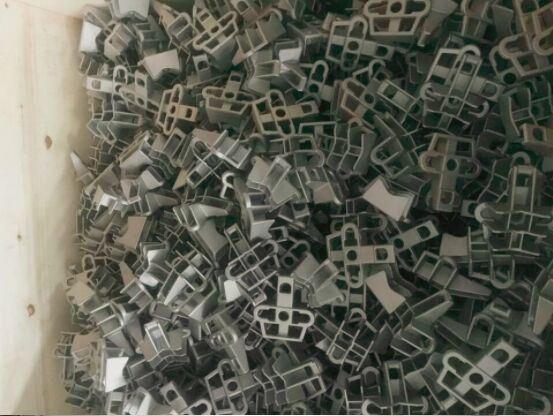

Package&Shipment:

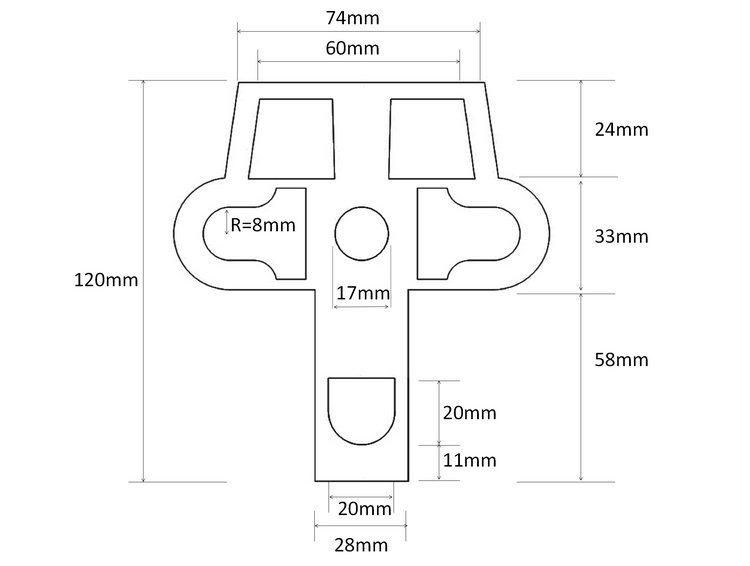

Technical data sheet:
Model | Materials | Working Load | Weight | Packaging unit |
UPB | Aluminum alloy | 5000N | 0.2kg | 30pcs |
Application: widely applied in cable connecting fittings,to support wire,conductor,cable in transmission line fittings.

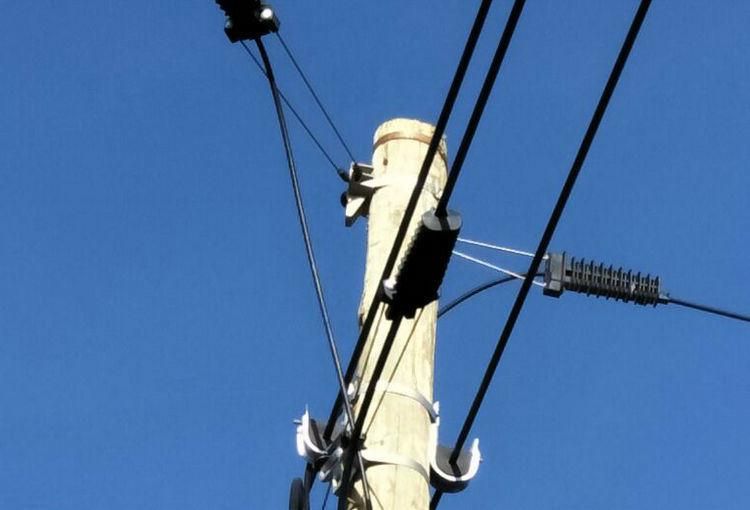

Installation
1. With steel bands
The UPB bracket can be installed on any type of pole - drilled or undrilled - with two 20x0.7 mm stainless steel bands SB207 plus two buckles B20 (check our pole banding products). Usually allow two bands of one meter each per bracket.
2. With bolts
If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness). Check our bolts.
Production Line:
