• Model NO.：WB-PP-5250
• Port Number：50
• Usage：Audio, Coaxial Cable, Fiber, STP, UTP
• Type：IDF
• Height：1u
• Color：Black
• Application：Structure Cabling System
• Material：SPCC
• Treatment：Powder Coated
• Transport Package：Cartons
• Specification：Patch Panel
• Trademark：Webitelecomms
• Origin：Ningbo, China
• HS Code：8517709000
• Production Capacity：10000PCS,Month
• Package size per unit product：53.00cm * 26.00cm * 10.00cm
• Gross weight per unit product：2.000kg

Basic Info.

Model NO. WB-PP-5250 Port Number 50 Usage Audio, Coaxial Cable, Fiber, STP, UTP Type IDF Height 1u Color Black Application Structure Cabling System Material SPCC Treatment Powder Coated Transport Package Cartons Specification Patch Panel Trademark Webitelecomms Origin Ningbo, China HS Code 8517709000 Production Capacity 10000PCS/Month

Packaging & Delivery

Package size per unit product 53.00cm * 26.00cm * 10.00cm Gross weight per unit product 2.000kg

Product Description

Products Spec

The 19" fiber patch panel is fitted with cable manager for convenience of cable management

Highly resistance and inflaming retarding  material, Grade UL94-0

1U Height (24 ports)

Vertical LSA temination

SPCC mounting ear with plastic cover
Meet or exceed the current T568A and T568B standard

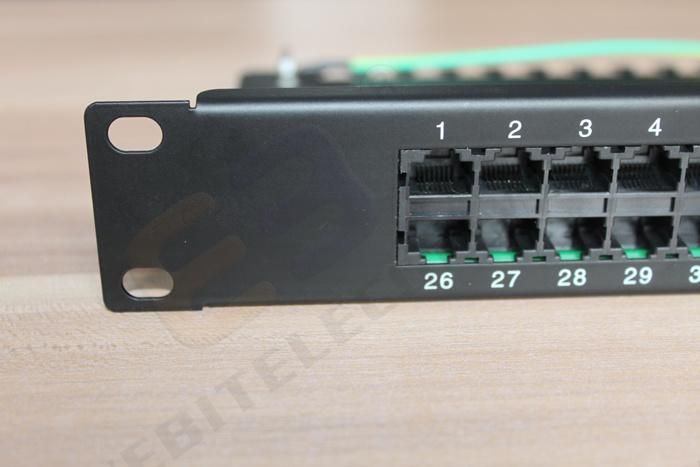

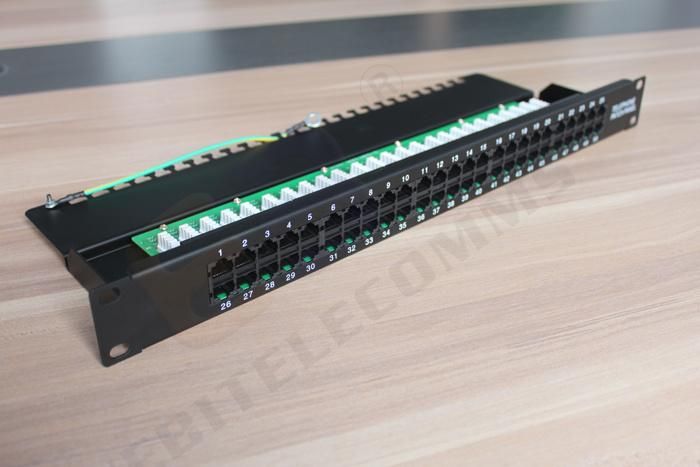

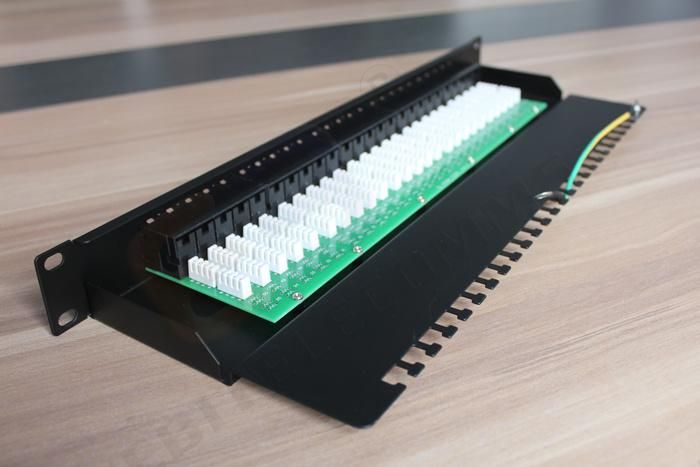

Detail Image



Electrical:

· Current rating: 1.5 Amp Max.
· Voltage rating: 150 Volts
· Contact resistance: 20 m-ohm
· Insulation Resistance: 500M-ohm
· Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min



Materials:
· Housing: ABS or PC
· IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
· PCB: FR4 1.6mm(0.04") thickness, 2 layers
· Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area



Mechanical property
· Times of repetitive use:≥800



Termipoint life	≥200
Insulation diameter	0.7mm-1.4mm(1.6mm)
Temperature interval	-40°C-70°C(storing) -10°C-60°C(installation) -10°C-60°C(working)



Packaging:



1 pcs/ bubble bag or PE Bag

1 pcs/box

20 boxes/carton

Carton Size: 53 X 26.5 X 51cm

G.W.:16 kg/carton



=Shipment & Delivery =



Shipment	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port
