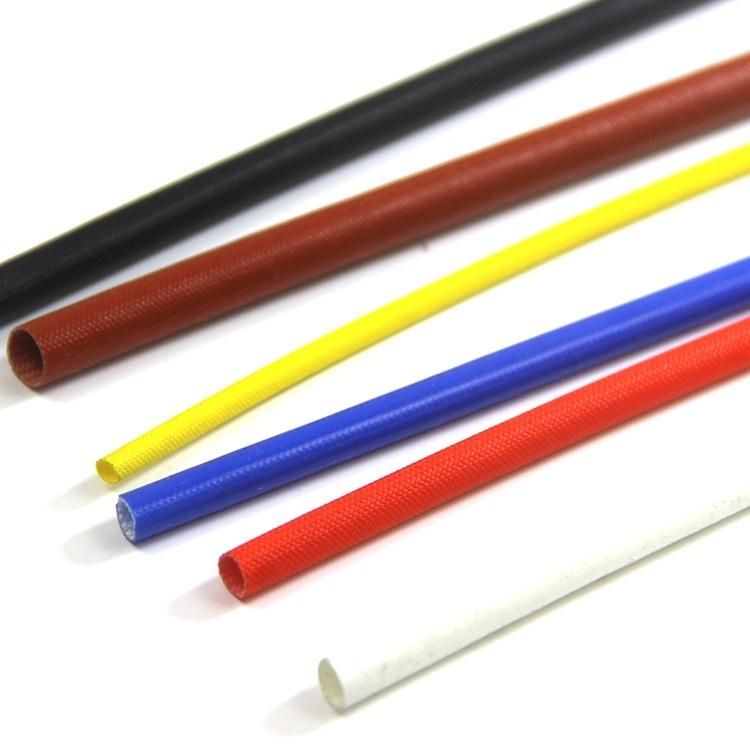

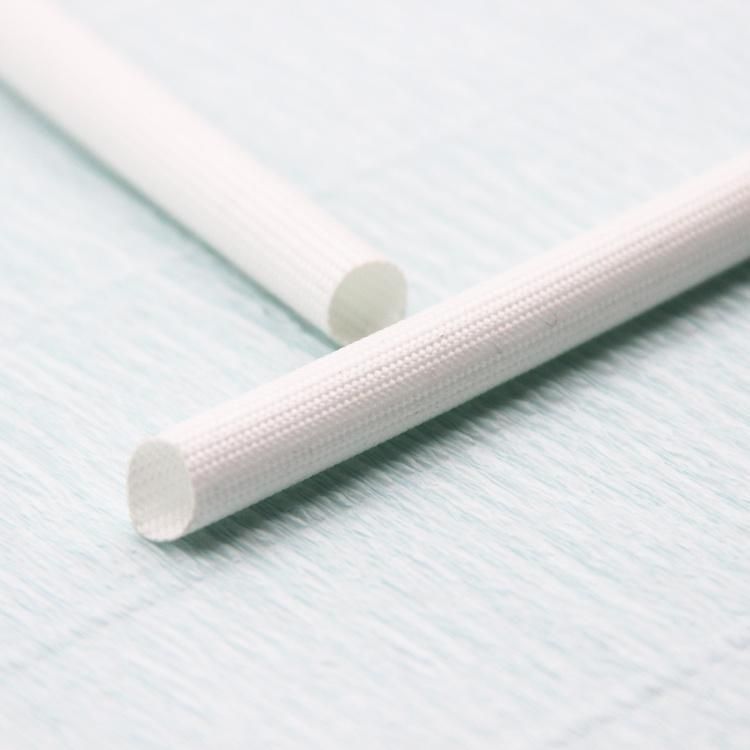

UL High Temperature Insulation Braided Silicone Fiberglass Sleeving
Xiamen QX Trade Co., Ltd.- Certification：UL, ISO9001, SGS
- Color：Black
- Usage：HDMI Cable
- Material：Fiberglass
- Type：Insulation Sleeve
- Application：Insulators, Electrical Winding Insulation
Base Info
- Model NO.：BS-FS
- Chemistry：Organic Insulation
- Coating Material：Silicone
- Operating Range：-60c-+200c
- Breakdown Voltage：4.0kv,7.0kv
- Flammability：VW-1
- Standard Colour：White, Black
- Certificate：UL, CSA, RoHS
- Transport Package：100m,Roll
- Specification：ISO9001: 2008, UL, CSA, ROHS
- Trademark：QX
- Origin：Made in China
- HS Code：7019909000
- Production Capacity：100, 000 M,Month
Description
Technical data:
Sleeving material: Fiberglass fiber
Coating material: Silicone resin
Operating range: -60C- +200C
Breakdown voltage: 1.2kv - 4.0kv
Flammability: VW-1
Standard colour: White
Certificate: UL, CSA, RoHS.
Cutting tool: Cutting machine, scissors.
Application:
These sleeves are widely used for supplementary insulation on
Transformer, motor, generator and resistor leads etc.
Datasheet:
| Part No | ID | Wall thickness(T) | Packing(L) |
| BS-FS0.8 | 0.8 | 0.3 | 100M/ROLL |
| BS-FS1.0 | 1.0 | 0.3 | 100M/ROLL |
| BS-FS1.5 | 1.5 | 0.3 | 100M/ROLL |
| BS-FS2.0 | 2.0 | 0.35 | 100M/ROLL |
| BS-FS2.5 | 2.5 | 0.35 | 100M/ROLL |
| BS-FS3.0 | 3.0 | 0.35 | 100M/ROLL |
| BS-FS3.5 | 3.5 | 0.35 | 100M/ROLL |
| BS-FS4.0 | 4.0 | 0.4 | 100M/ROLL |
| BS-FS5.0 | 5 | 0.4 | 100M/ROLL |
