• Model NO.：WB-PP-6001J
• Port Number：24 Ports
• Usage：Audio, Coaxial Cable, Fiber, STP, UTP
• Type：IDF
• Patch Panel Type：CAT6A Patch Panel
• Shielded：UTP
• Ports：24 Ports
• Height：1u
• Color：Ral7035-Grey; Ral9005-Black
• Material：SPCC Cold Rolled Steel
• Transport Package：Cartons
• Specification：Patch Panel
• Trademark：Webitelecomms
• Origin：Ningbo, China
• HS Code：8517709000
• Production Capacity：10000PCS,Month
• Package size per unit product：53.00cm * 26.00cm * 10.00cm
• Gross weight per unit product：2.000kg

Basic Info.

Model NO. WB-PP-6001J Port Number 24 Ports Usage Audio, Coaxial Cable, Fiber, STP, UTP Type IDF Patch Panel Type CAT6A Patch Panel Shielded UTP Ports 24 Ports Height 1u Color Ral7035-Grey; Ral9005-Black Material SPCC Cold Rolled Steel Transport Package Cartons Specification Patch Panel Trademark Webitelecomms Origin Ningbo, China HS Code 8517709000 Production Capacity 10000PCS/Month

Packaging & Delivery

Package size per unit product 53.00cm * 26.00cm * 10.00cm Gross weight per unit product 2.000kg

Product Description

Products Describe:
19" standard size for mounting into server racks and network cabinets
This patch panel is designed for 22-26 AWG solid conductors
1U Height (24 ports) with screws covered
1U horizontal 19" mounting
135degree unshielded CAT6A panel
Back metal wiring organiser, and Y/G earthing cable

Material :
Housing: ABS 94V-0
IDC: PC UL94V-0
PCB: FR-4 1.60 mm (0.06") thick, 2 layers .
Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area
Metal housing: 1.50 mm thick metal.


Construction characteristics:
Color marking of conductors according to T568B and T568A
Numeral marking of ports on the front side of the panel
Space for additional marking
Color and numeral marking of IDC modules on the rear side of the panel
IDC Dual contacts provide minimal crosstalk
110 type punch down tool is used for cable termination


Electrical characteristics :
According to UL 1863
Current rating: 1.5 A max
Voltage rating: 150 V
Contact Resistance: 20 mOhm
Insulation Resistance: 500 MOhm
Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min
Operation Temperature: -40 ~+70 degree centigrade

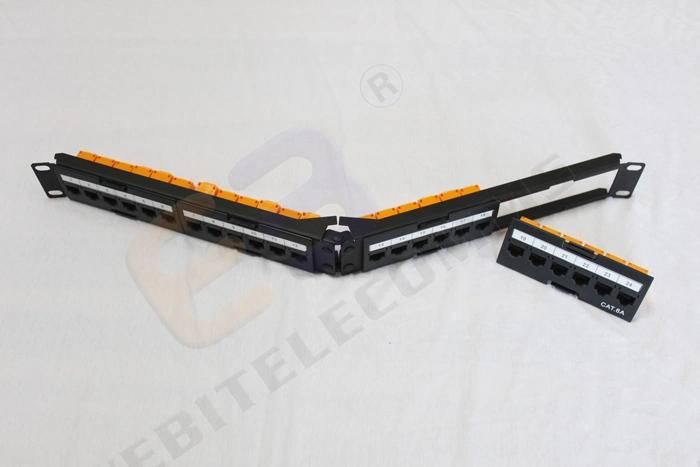

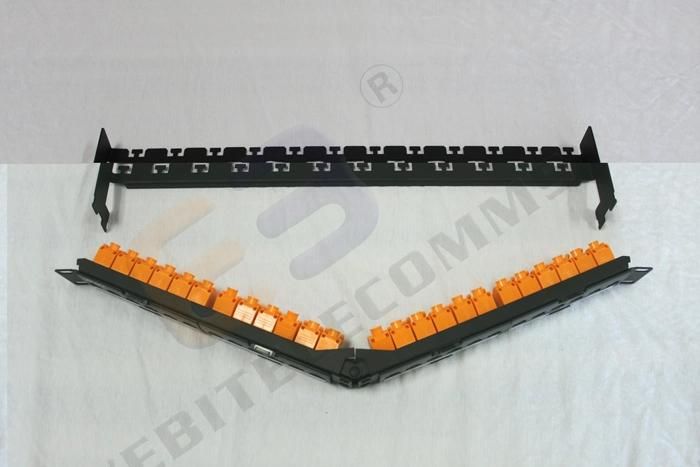

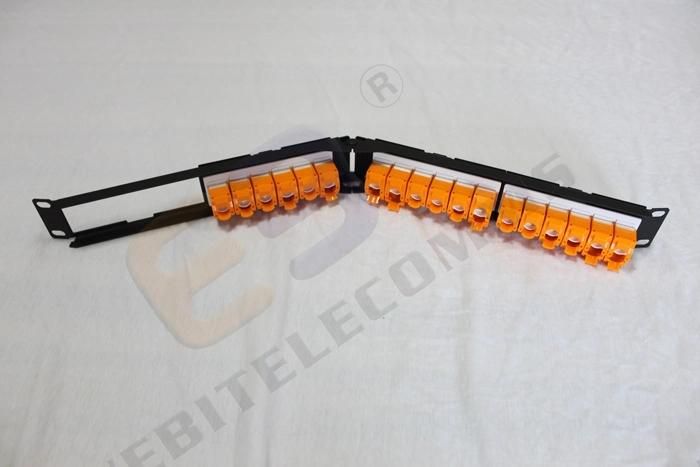

Products Picture:

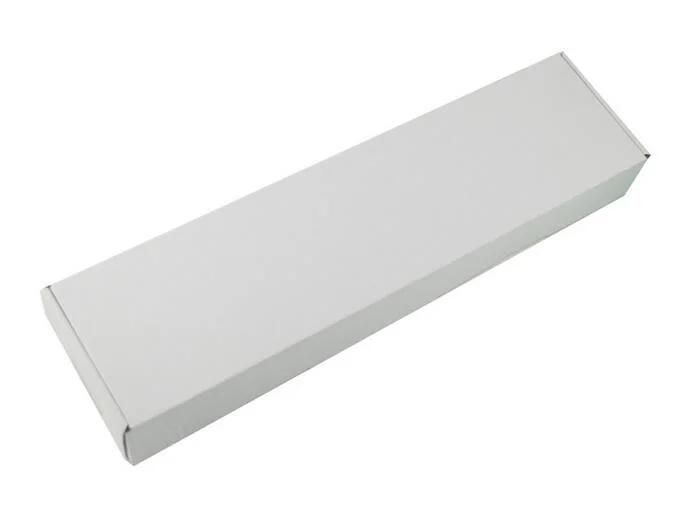

Packaging:

1 pcs/ bubble bag or PE Bag

1 pcs/box

20 boxes/carton

Carton Size: 53 X 26.5 X 51cm

G.W.:24 kg/carton

=Shipment & Delivery =

Shipment	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port

Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.

FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
