Self-Closing Textile Woven Split Sleeving Wrap Around Sleeving for Wire Harness
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS, ISO, Halogen Free
- Color：Black
- IP Rating：IP65
- Usage：Optical Cable, Earphone Line, Electric Wire, DVI Line, HDMI Cable, High-Speed Rail, Auto, Automation Equipment
- Material：Polyester Mutifilament and Monofilament
- Type：Spiral Wrapping
Base Info
- Model NO.：BS-WS013
- Classification：Split Braided Sleeve
- Standard Color：Black

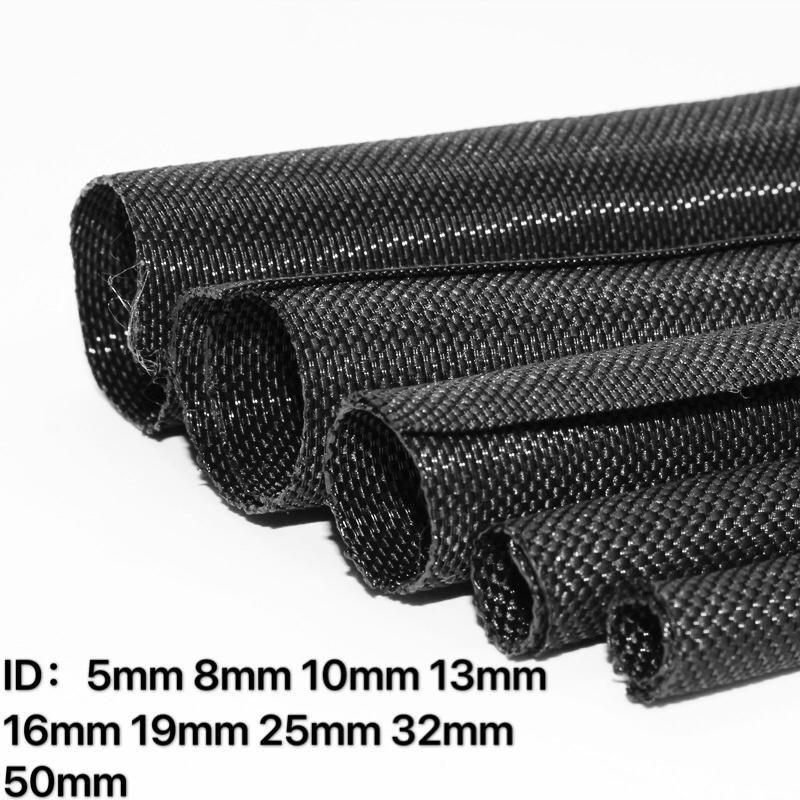

- Available Size：5mm ID~50mm ID
- Flammability：UL94V-0, DIN5510
- Abrasion Resistance：Medium
- Sample：Avaliable
- Condition：New
- Customization：Pre-Cutting, Package
- Overlap：25% or 50%
- Operating Range：-50ºC to +150ºC
- Melt Point：230ºC +,- 5ºC
- Cutting Tool：Hot Knife
- Transport Package：50m,Roll
- Specification：13mm
- Trademark：EKO
- Origin：Fujian, China
- HS Code：5909000000
- Production Capacity：2000000 M,Month
Description
Basic Info.
Model NO. BS-WS013 Classification Split Braided Sleeve Standard Color Black Available Size 5mm ID~50mm ID Flammability UL94V-0, DIN5510 Abrasion Resistance Medium Sample Avaliable Condition New Customization Pre-Cutting, Package Overlap 25% or 50% Operating Range -50ºC to +150ºC Melt Point 230ºC +/- 5ºC Cutting Tool Hot Knife Transport Package 50m/Roll Specification 13mm Trademark EKO Origin Fujian, China HS Code 5909000000 Production Capacity 2000000 M/MonthProduct Description
Self-closing textile woven split sleeving wrap around sleeving for wire harness
Woven wrap-around sleeving is a non-expandable sleeving woven from monofilament (weft) and multifilament (wrap) polyester yarns.
It provides a lightweght, cost-effective and tough solution for the protection of a wide range of components. Its inherent flexibility

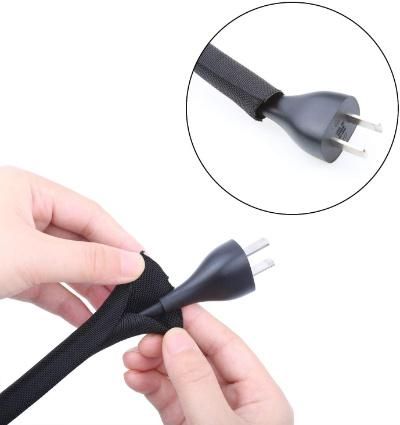

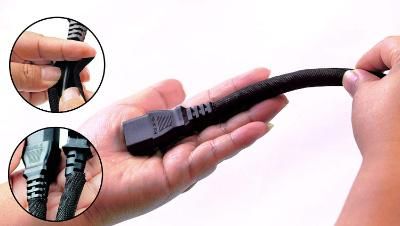

allows it to bend, coil and conform to irregular shapes, while its open design allows it to be installed on completed assemblies.
Details
Datasheet
| Part No. | Size | Max. Bundle Dia. | Packing (L) |
| BS-WS003 | 3.0mm | 4.0mm | 200m/roll |
| BS-WS005 | 5.0mm | 6.0mm | 100m/roll |
| BS-WS008 | 8.0mm | 9.0mm | 100m/roll |
| BS-WS010 | 10.0mm | 11.0mm | 100m/roll |
| BS-WS013 | 13.0mm | 14.0mm | 50m/roll |
| BS-WS016 | 16.0mm | 17.0mm | 50m/roll |
| BS-WS019 | 19.0mm | 20.0mm | 25m/roll |
| BS-WS025 | 25.0mm | 27.0mm | 25m/roll |
| BS-WS029 | 29.0mm | 31.0mm | 25m/roll |
| BS-WS032 | 32.0mm | 34.0mm | 25m/roll |
| BS-WS038 | 38.0mm | 40.0mm | 25m/roll |
| BS-WS050 | 50.0mm | 52.0mm | 25m/roll |

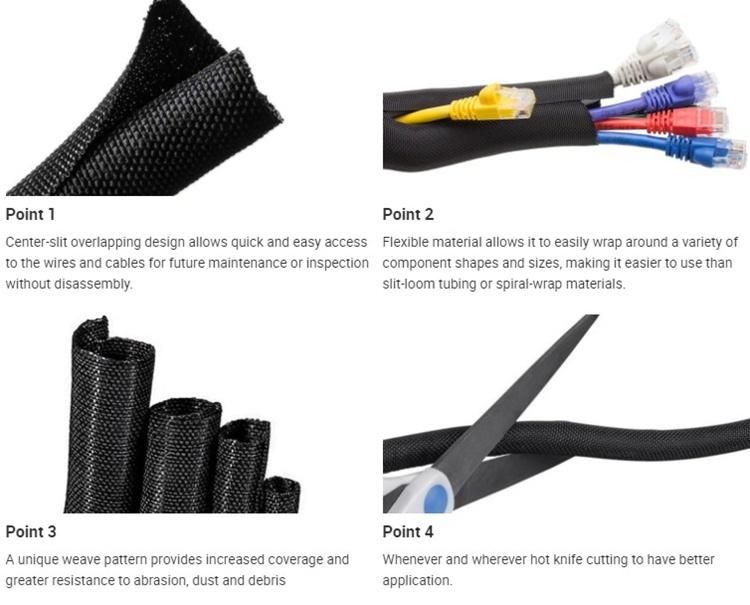

What are advantages of Woven Wrap Around Sleeving?
Application

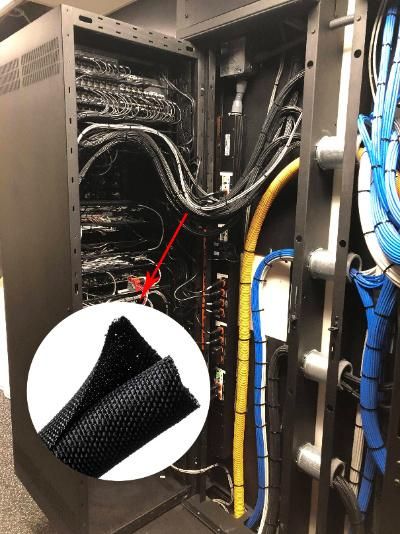

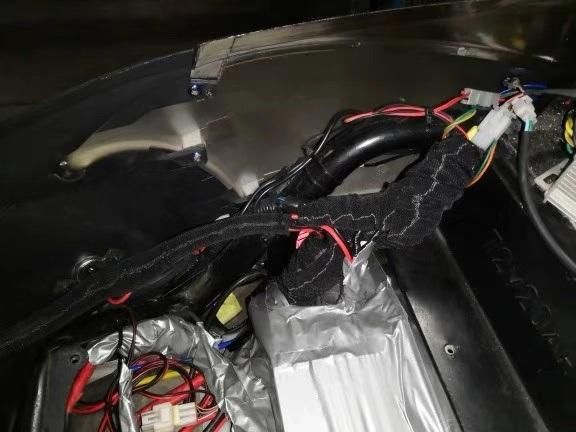

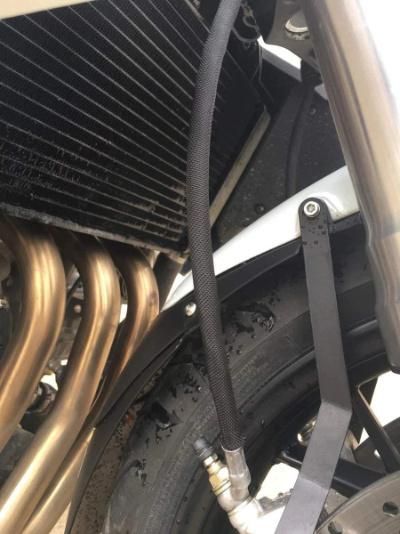

Most commonly used over wire harnesses, cable assemblies, flat ribbon cables, tubes and hoses to provide a tough, durable
protection in automotive, automatic equipment, railways and panel boards.

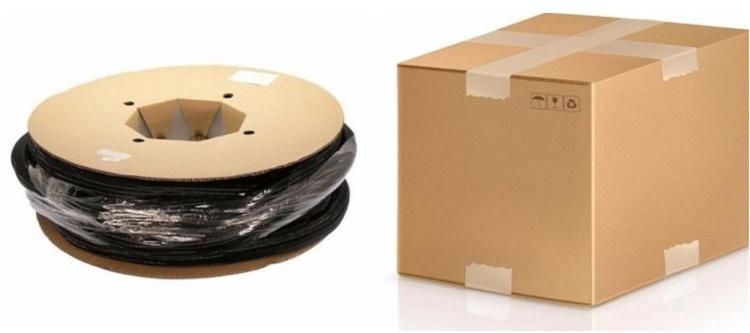

Packing

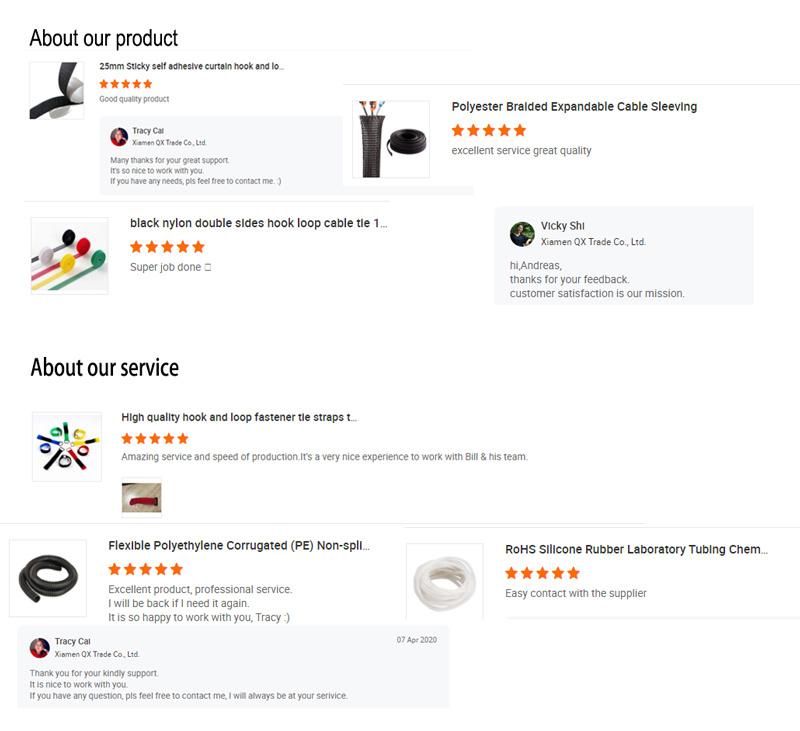

Customers' Review
