Eko Hook and Loop Cable and Wire Protection Sleeve for Wire and Cable Management
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS, ISO, CE, Haogen Free
- Color：Black
- IP Rating：VW-1
- Usage：Optical Cable, Electric Wire, HDMI Cable, a,V Cable
- Material：Polyester
- Type：Spiral Wrapping
Base Info
- Model NO.：BS-VCW
- Style：Cable Sock
- Wrap Material：Polyester
- Magic Tape Material：Nylon
- Working Temperature：-50 C~+150 C
- Melt Point：230+(-)5 C
- Flammability：VW-1
- Standard Color：Black, Grey, White
- Size：13mm, 19mm, 32mm, 51mm, 64mm
- Cutting Tool：Hot Knife
- MOQ：100m
- Transport Package：25m,Roll
- Specification：13mm~64mm
- Trademark：NO
- Origin：Fujian, China
- HS Code：6307900090
- Production Capacity：100000 PCS,Month
Description
Basic Info.
Model NO. BS-VCW Style Cable Sock Wrap Material Polyester Magic Tape Material Nylon Working Temperature -50 C~+150 C Melt Point 230+(-)5 C Flammability VW-1 Standard Color Black, Grey, White Size 13mm, 19mm, 32mm, 51mm, 64mm Cutting Tool Hot Knife MOQ 100m Transport Package 25m/Roll Specification 13mm~64mm Trademark NO Origin Fujian, China HS Code 6307900090 Production Capacity 100000 PCS/MonthProduct Description

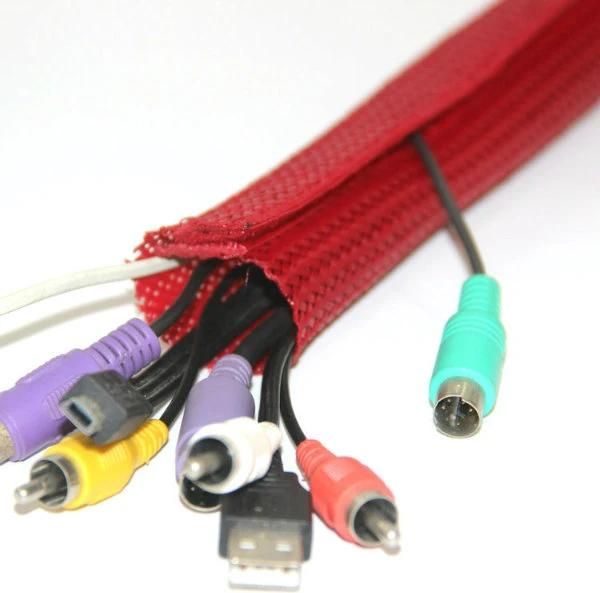

What's special about this Hook and Loop Cable and Wire Protection Sleeve
QX Cable Sleeve,Have been imitated, but never beyond!!
1.Flexible Control & Management with Easy On, Easy Off Access
2.Provides the perfect solution to a wide variety of unique application challenges
of cable management
3.Combined with the expandable, open weave design, FW will conform to a wide
variety of bundle diameters and will wrap around irregular shapes.
4.The braided sleeving retains its properties in extreme conditions protecting the
cables and wires from damage
5.HOOK & LOOP BRAIDED CABLE WRAP widely used for power cords, audio cables,
USB cords, cell phone chargers, camera cords, headphones and any other wires at homes,
offices, warehouses, garages, or basements
6. Can be cut quickly and easily with a bench mount hot knife to prevent the sleeving from fraying
Physical Properties
| Product | Magic Tape Cable Sleeving |
| Sleeve Material | PET monofilament |
| Magic Tape Material | Nylon |
| Working Temperature | -50C~+150C |
| Melt Point | 240C+(-)10C |
| Life | 3000+ |
| Flammability | UL94 |
| Standard Color | Black,Grey,White |
| Certificated | ROHS,Halogen Free |
Specification
| Part No | Size (mm) | Magic Tape Width (mm) | Max Bundle Dia (mm) | Packing (L) |
| BS-VCW013 | 13 | 10 | 8 | 25m/roll |
| BS-VCW019 | 19 | 10 | 12 | 25m/roll |
| BS-VCW032 | 32 | 20 | 20 | 25m/roll |
| BS-VCW051 | 51 | 20 | 32 | 25m/roll |
| BS-VCW064 | 64 | 20 | 40 | 25m/roll |

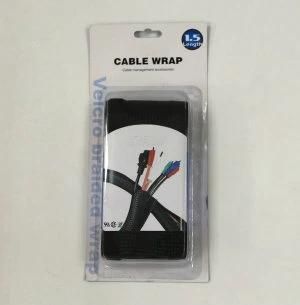

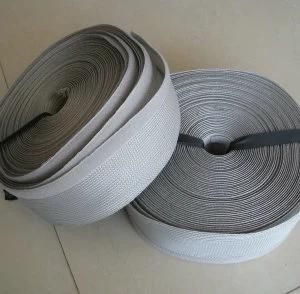

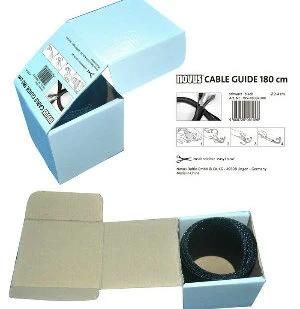

Packing
Standard packing
Custom Packing are available
