High Performance Waterproof Insulated Dual Wall Adhesive Marine Heat Shrink Tubing

Shanghai Hampool Enterprise Co., Ltd.
  • Certification：UL, RoHS, ISO, CE
  • Color：Black,Red,Blue,Green,White
  • Usage：Electric Wire, Coating
  • Material：PE
  • Type：Heat Shrinkable
  • Safety Standard：UL224 VW-1

Base Info

  • Model NO.：HP-HST
  • Product Name：Insulation Tube
  • Rated Voltage：600V
  • Application：Low Voltage
  • Tensile Strength：10.4MPa
  • Function：Insulation Sleeve
  • Shrunk Ratio：2:1 3:1 4:1

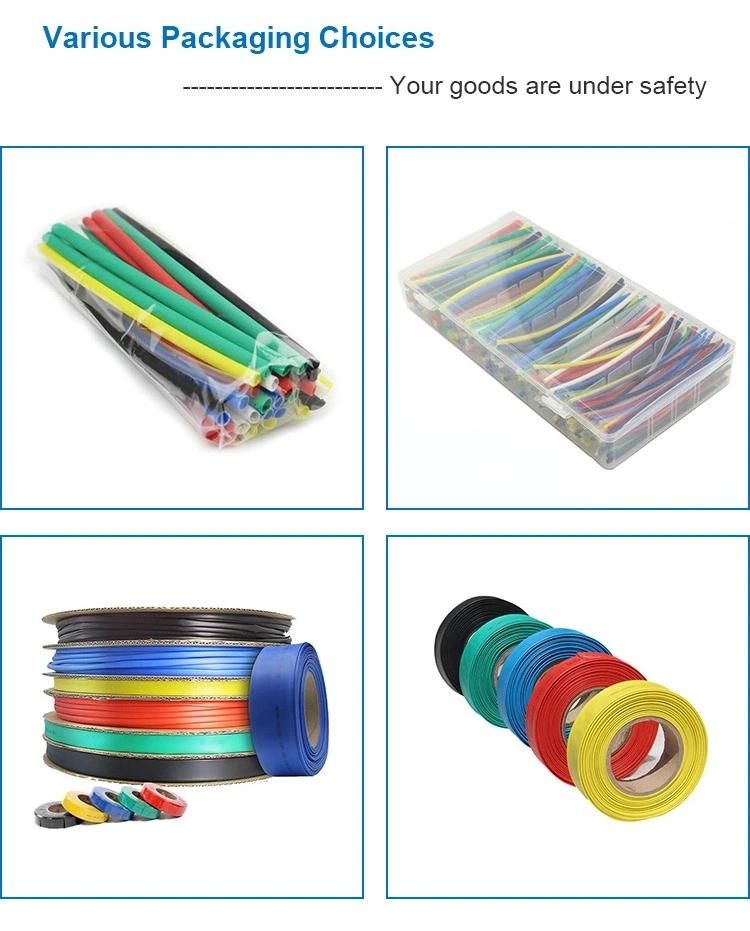

  • Transport Package：200PCS,Roller ,100PCS,Roller ,50PCS,Roller
  • Specification：100X0.1X0.1 cm
  • Trademark：HP
  • Origin：China
  • Production Capacity：100000 Piece,Pieces Per Day Heat Shrink Tube

Description

PropertySpecification RequirementTest MethodTypical ValueTensile strength (Room temp.)Min. 10.4MpaUL22412MpaElongation at break (Room temp.)Min. 200%UL224400%Tensile strength after aging (158ºC 168hrs)Min. 7.3MpaUL22410.4MpaElongation after aging (158ºC 168hrs)Min. 100%UL224300%Voltage withstand (Un-aged)Withstand 2.5kV for 1 minute and breakdownUL224PassVoltage withstand (Aged)Withstand at least half of un-aged breakdown
voltage for 1 minute and breakdownUL224PassCorrosion (158ºC 168hrs)No corrosionUL224No sign of deg.Longitudinal shrinkage≤10%UL224≤5%Low-temperature flexibility (-55ºC 4hrs)No crackingUL224PassHigh Performance Waterproof Insulated Dual Wall Adhesive Marine Heat Shrink Tubing
